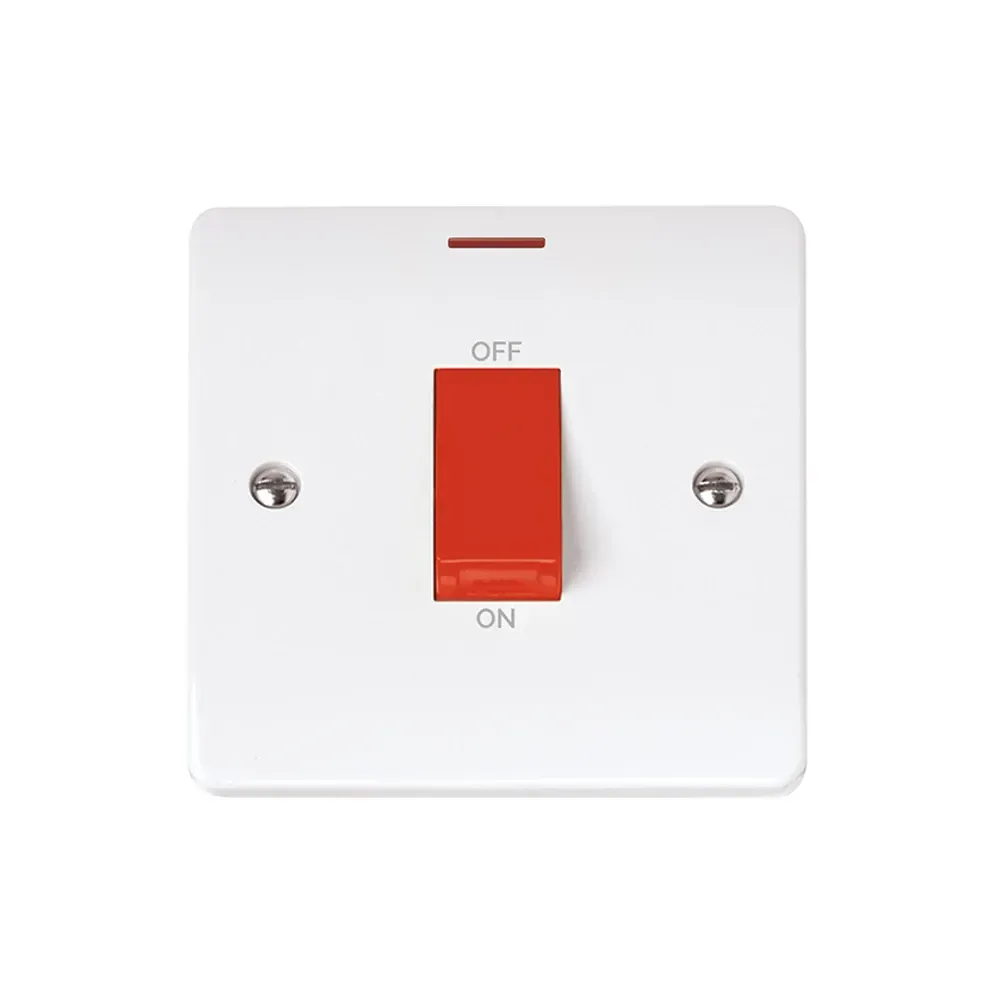

Click CMA2201 50A 1-Gang DP Switch LED Indicator - MODE
50A double pole plate switch with LED indicator for high-load domestic installations including cooker circuits and immersion heaters. Features screw terminals with 2.5 Nm torque rating, accepting 16mm² solid conductors for secure connections. Twin earth terminals pre-fitted for faster installation. BS EN 60669-1 compliant with UKCA marking for professional confidence. Antimicrobial certification provides additional protection in kitchen environments. 35mm minimum backbox depth required for flush mounting. MODE range offers rounded profile design with urea formaldehyde construction for durability. 25-year warranty provides long-term reliability for contractors.
Product Information
Product Features
Documents
Installation Specifications
Terminal Configuration
Ø6mm screw terminals with 2.5 Nm torque setting accept 16mm² solid conductors for secure high-current connections.
Mounting Requirements
86x86mm faceplate with 60.3mm fixing centres requires 35mm minimum backbox depth for proper clearance.
Safety Features
Twin earth terminals pre-fitted with antimicrobial certification providing enhanced protection for kitchen installations.
High-Current Applications
Cooker Circuits
50A rating suitable for domestic electric cookers and ranges up to 12kW load capacity.
Immersion Heaters
Double pole switching ideal for 3kW immersion heater control with complete isolation capability.
Electric Showers
High current capacity supports electric shower installations requiring 45-50A circuit protection.
Professional Standards
Compliance Certification
BS EN 60669-1 standard compliance with UKCA marking ensures regulatory compliance for professional installations.
Temperature Performance
Rated for -5°C to +40°C operation with IP20 protection suitable for standard domestic environments.
Quality Assurance
25-year manufacturer warranty with antimicrobial certification provides long-term reliability and hygiene protection.
Frequently Asked Questions
-
What backbox depth is required for the CMA2201 switch?
Requires minimum 35mm backbox depth for flush mounting. Standard domestic backboxes are suitable for this installation.
-
What cable size can the screw terminals accept?
Terminals accept 1 x 16mm² solid conductor with 2.5 Nm torque setting. Suitable for cooker circuits and immersion heater connections.
-
Is this switch suitable for cooker circuit installations?
Yes, 50A rating makes it ideal for domestic cooker circuits, electric showers, and immersion heaters requiring high current switching.
-
What does the LED indicator show?
Red LED indicator clearly shows On/Off switching status with permanent markings on the plate for operational clarity.
-
Does this meet current wiring regulations?
Yes, BS EN 60669-1 compliant with UKCA marking. Meets Part P Building Regulations requirements for notifiable work.
