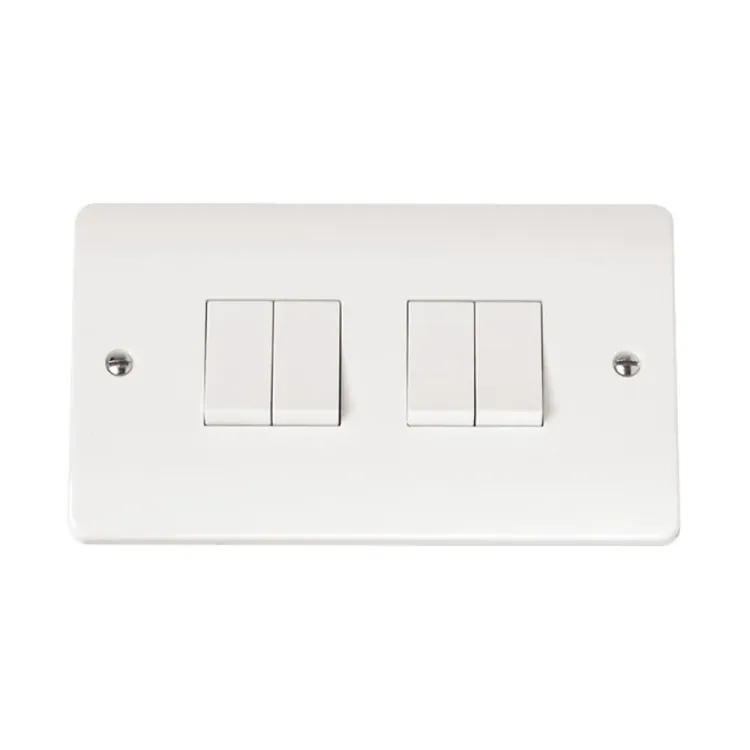

Photo is representative

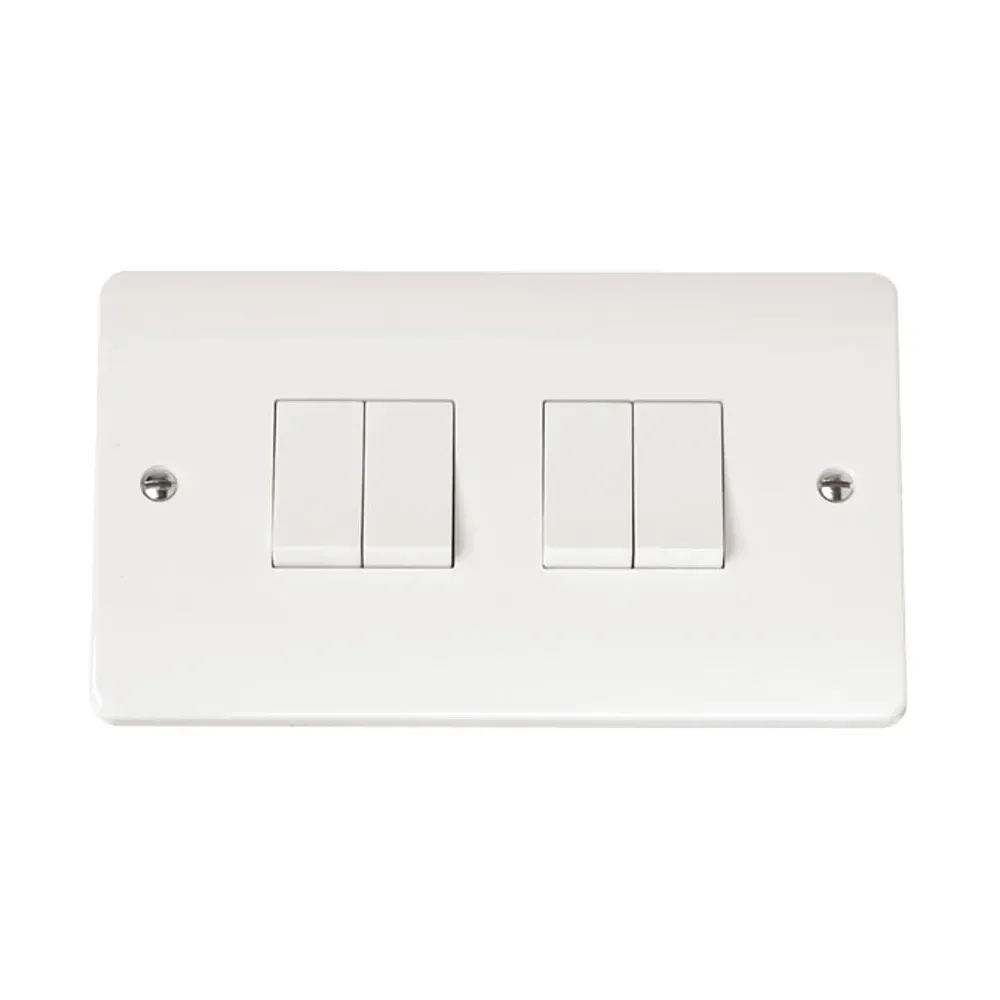

Click Mode 10AX 4-Gang 2-Way Switch - Polar White
10AX 4 gang 2 way switch for domestic lighting control applications. Click Mode MiniGrid plate switch handles inductive loads with precise 0.5Nm terminal torque specification. Screw terminals accept 4 x 1.5mm² or 2 x 2.5mm² cables for flexible circuit configurations. Requires minimum 25mm backbox depth with 120.6mm horizontal fixing centres for standard mounting. BS EN 60669-1 compliant with IP20 rating and 20-year manufacturer warranty. Antimicrobial certified with 99.9% kill rate against bacteria and enveloped viruses for hygiene-critical environments. Modular MiniGrid system accepts 2 x 2 single width or 2 double width modules. CE/UKCA marked for UK installations with -5°C to +40°C operational temperature range.
Online:
Product Features
| Current Rating | 10AX inductive load suitable |
|---|---|
| Gang Configuration | 4-gang 2-way switching |
| Terminal Type | Screw terminals 3.5mm with 0.5Nm torque |
| Cable Capacity | 4 x 1.5mm² or 2 x 2.5mm² solid conductors |
| Backbox Requirements | 25mm minimum depth, 120.6mm fixing centres |
| Modular System | MiniGrid compatible - 2x2 single or 2 double width |
| Compliance Standards | BS EN 60669-1, CE/UKCA marked |
| Ingress Protection | IP20 rated for indoor use |
| Operational Temperature | -5°C to +40°C temperature range |
| Antimicrobial Protection | 99.9% bacteria kill rate certified |
| Plate Dimensions | 146mm W x 86mm H x 9.5mm D |
| Warranty Period | 20-year manufacturer warranty |
Installation Requirements
Terminal Specifications
3.5mm screw terminals with 0.5Nm torque setting. Accepts 4 x 1.5mm² or 2 x 2.5mm² solid conductors for flexible circuit configurations.
Mounting Compatibility
25mm minimum backbox depth with 120.6mm horizontal fixing centres. Standard 35mm backbox recommended for comfortable cable management.
MiniGrid Integration
Modular system accepts 2 x 2 single width or 2 double width modules. Compatible with Click MiniGrid data and power accessories.
Applications
Domestic Lighting
4-gang control for multiple lighting circuits including LED downlights, pendant lights, and wall lighting with 2-way switching capability.
Commercial Spaces
Office and retail lighting control with antimicrobial protection. 10AX rating suitable for fluorescent and LED commercial lighting systems.
Staircase Control
2-way switching ideal for stairwell lighting control from top and bottom locations. Multiple gang configuration for landing area lighting.
Standards Compliance
Safety Standards
BS EN 60669-1 compliant for household switches up to 440V/63A. IP20 rated for indoor installations with -5°C to +40°C operational range.
Regulatory Marking
CE/UKCA marked for UK and European markets. Meets 18th Edition wiring regulations and Part P building regulations requirements.
Quality Assurance
20-year manufacturer warranty with antimicrobial certification. 99.9% kill rate against bacteria and enveloped viruses for hygiene applications.
Frequently Asked Questions
-
What backbox depth required for CMA019 installation?
Minimum 25mm backbox depth required with 120.6mm horizontal fixing centres. Standard 35mm backbox provides comfortable installation clearance for cable management.
-
Can I mix different MiniGrid modules with this switch?
Yes, MiniGrid system accepts 2 x 2 single width modules or 2 double width modules. Compatible with other Click MiniGrid accessories and data modules.
-
Suitable for controlling LED lighting circuits?
10AX rating handles inductive loads including LED drivers and transformers. Check individual LED driver specifications for compatibility with switching arrangements.
-
What torque setting needed for terminal connections?
0.5Nm torque specification for 3.5mm screw terminals. Use calibrated screwdriver to prevent over-tightening and ensure reliable long-term connection integrity.
-
Why choose 2-way switching over 1-way?
2-way switching allows control from two locations using L1/L2 terminals. Essential for staircase lighting or room entrances with multiple access points.
-
Does CMA019 meet current wiring regulations?
BS EN 60669-1 compliant with CE/UKCA marking. Meets 18th Edition requirements for domestic installations and Part P building regulations compliance.
