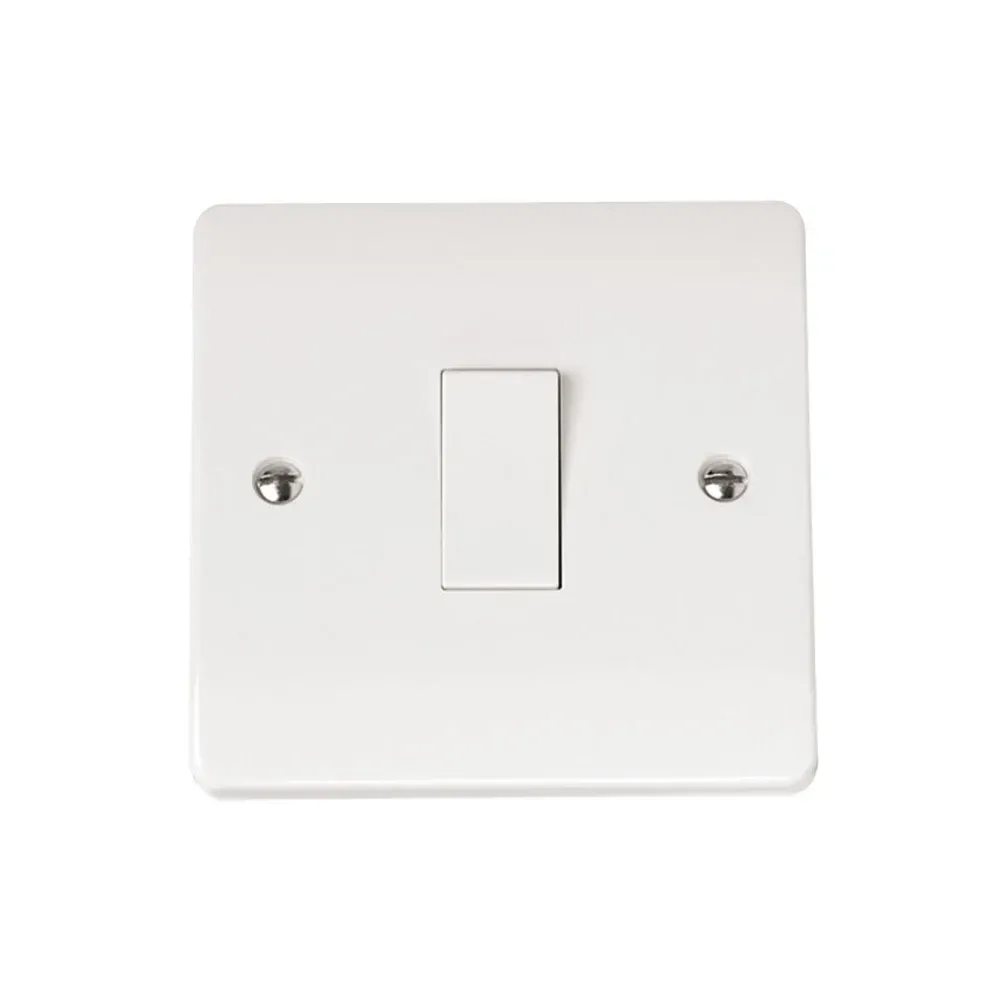

Click Mode CMA010 10A 1-gang white light switch

Photo is representative

Click Mode 10A 1-Gang Switch - Polar White

Click Mode 1-gang light switch with 10AX inductive load rating for commercial and domestic installations. This single-gang plate switch features screw terminals accepting up to 2x 2.5mm² conductors with 0.5Nm torque setting. Manufactured from urea formaldehyde with nylon rear housing and brass terminals. Compatible with Click MODE MiniGrid system for modular installations. Operates from -5°C to +40°C with IP20 ingress protection. Certified antimicrobial coating provides 99.9% kill rate against bacteria and enveloped viruses. Requires minimum 16mm backbox depth for flush mounting. CE and UKCA marked with BS EN 60669-1 compliance. Backed by 20-year manufacturer warranty for professional confidence.

Product Information

Stock Code CMA010
MPN
GTIN
Stock status: Out of stock
Price: £1.66
incl. VAT, 20% priced individually

Product Features

Current Rating 10AX Inductive Load
Gang Configuration 1-Gang
Switching Type 1-Way
Rated Voltage 250V~ 50Hz
Terminal Type Screw Ø3.5mm
Terminal Capacity 4x 1.5mm² or 2x 2.5mm²
Terminal Torque 0.5Nm
Backbox Depth 16mm minimum
IP Rating IP20
Operating Temperature -5°C to +40°C
Compliance Standard BS EN 60669-1
Antimicrobial Coating 99.9% kill rate certified
Warranty Period 20 years
MiniGrid Compatible 1 single-width module

Installation Requirements

Terminal Configuration

Ø3.5mm screw terminals with 0.5Nm torque setting. Brass terminals with steel screws provide corrosion resistance and secure conductor retention for professional installations.

Mounting Specifications

86x86x9.5mm plate dimensions with 60.3mm horizontal fixing centres. Requires minimum 16mm backbox depth with standard 35mm providing optimal cable management space.

MiniGrid Integration

Compatible with Click MODE MiniGrid system as single-width module. Interchangeable with other MiniGrid modules for flexible installation configurations.

Professional Applications

Commercial Lighting

10AX inductive rating ideal for fluorescent and LED lighting circuits in offices, retail spaces, and industrial facilities requiring reliable switching performance.

Domestic Installations

Single-gang configuration perfect for hallways, bedrooms, and utility rooms where space-efficient switching is required with antimicrobial protection for hygiene-critical areas.

Modular Systems

MiniGrid compatibility enables custom switch configurations in commercial fit-outs, allowing electricians to create bespoke control solutions using standardised components.

Standards Compliance

BS EN 60669-1

Full compliance with household switch standard covering electrical, mechanical, and thermal requirements. Ensures safe operation up to 250V~ 50Hz rated conditions.

Antimicrobial Certification

Independently tested antimicrobial coating achieves 99.9% kill rate against bacteria and enveloped viruses, providing additional hygiene protection in sensitive environments.

Quality Assurance

20-year manufacturer warranty demonstrates product durability and reliability. CE and UKCA marking confirms regulatory compliance for UK and European markets.

Frequently Asked Questions

  • What backbox depth is required for this switch?

    Minimum 16mm backbox depth required for flush mounting. Standard 35mm backboxes provide ample clearance for cable management and secure fixing.

  • Can this switch handle LED lighting loads?

    Yes, 10AX inductive rating handles LED loads effectively. The silver overlay contacts provide reliable switching for both resistive and inductive loads including LED drivers.

  • Is this suitable for bathroom installations?

    IP20 rating limits use to dry locations only. For bathroom zones, specify IP44 rated switches designed for moisture exposure per BS 7671.

  • What cable sizes fit the terminals?

    Screw terminals accept 4x 1.5mm² solid conductors or 2x 2.5mm² solid conductors. Torque to 0.5Nm using 3.5mm flat blade screwdriver for secure connection.

  • Why choose 10AX over standard 10A rating?

    10AX rating handles inductive loads like fluorescent and LED lighting circuits. The 'X' suffix indicates enhanced contact performance for switching inductive currents safely.

  • Does this meet Part P Building Regulations?

    Yes, BS EN 60669-1 compliance ensures Part P conformity. CE and UKCA marking confirms regulatory approval for domestic and commercial electrical installations.
