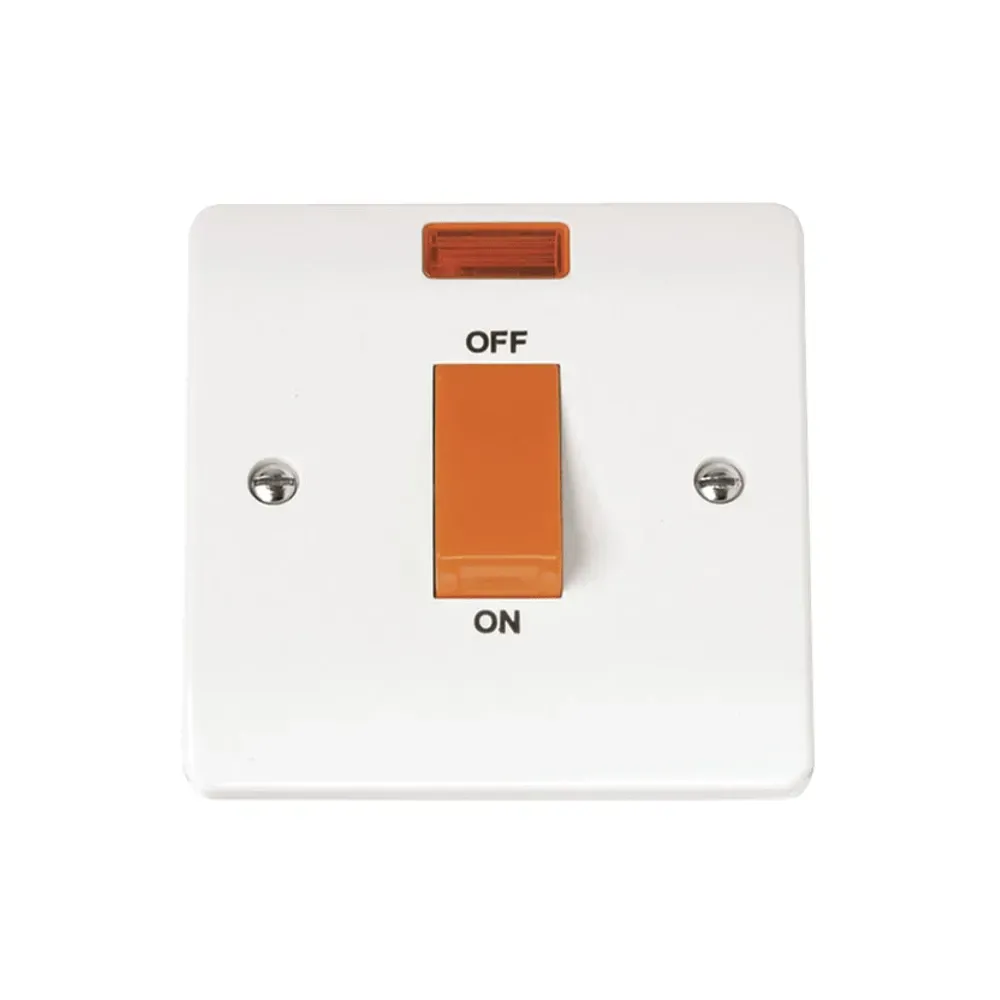

Click CMA201 45A 1-Gang DP Mode Switch Orange Neon - Polar White
45A double pole mode switch with orange neon indicator for high-current appliance switching. Screw terminals accept up to 16mm² cables with 2.5Nm torque specification for secure connections. IP20 rated construction with twin earth terminals fitted as standard. Suitable for immersion heaters, electric showers, and cooker circuits requiring visual switching confirmation. BS EN 60669-1 compliant with 25-year warranty and antimicrobial surface protection. 35mm minimum backbox depth for flush mounting with 86x86mm standard plate dimensions.
Product Information
Product Features
Installation Specifications
Terminal Connections
Screw terminals with 2.5Nm torque specification. Twin earth terminals fitted as standard. Brass terminals with steel screws for durability.
Mounting Requirements
86x86mm faceplate dimensions with 60.3mm horizontal fixing centres. Requires 35mm minimum backbox depth for flush installation.
Professional Applications
High Current Loads
45A rating suitable for immersion heaters, electric showers, storage heaters, and commercial catering equipment requiring visual confirmation.
Safety Critical Switching
Double pole configuration isolates both conductors. Orange neon provides immediate visual confirmation of switching status for maintenance work.
Commercial Installations
Antimicrobial surface treatment with 99.9% bacteria kill rate. Ideal for kitchens, healthcare facilities, and food preparation areas.
Standards Compliance
Electrical Standards
BS EN 60669-1 compliant for household switches. UKCA marked for UK market compliance with electrical safety regulations.
Quality Assurance
25-year manufacturer warranty period. Operating temperature range -5°C to +40°C for diverse installation environments.
Frequently Asked Questions
-
What backbox depth required for Click CMA201 installation?
Minimum 35mm backbox depth required for flush mounting. Standard 86x86mm faceplate with 60.3mm horizontal fixing centres.
-
Which cable sizes compatible with CMA201 terminals?
Screw terminals accept up to 16mm² cables with Ø6mm terminal access. Torque to 2.5Nm for secure electrical connection.
-
Suitable applications for 45A mode switch?
Ideal for immersion heaters, electric showers, cooker circuits, and storage heaters requiring visual confirmation of switching status.
-
Why choose double pole over single pole switching?
DP switching isolates both live and neutral conductors, providing complete circuit isolation for high-current appliances and enhanced safety.
-
Does orange neon indicate switch position or load status?
Orange neon indicates switch position - illuminated when contacts closed, confirming power available to connected appliance circuit.
