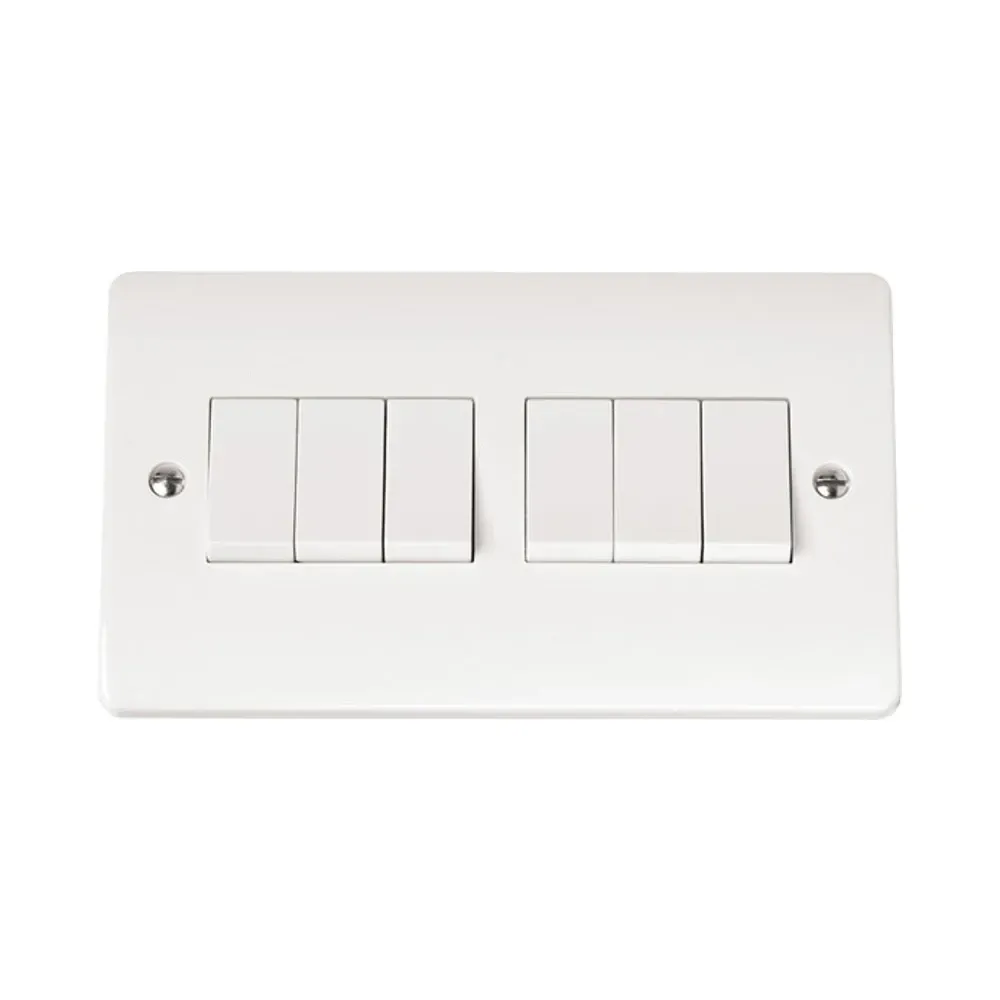

Photo is representative
Click Mode 10A Switch 6 Gang 2 Way CMA105 - Polar White
10A rated 6-gang 2-way plate switch for professional lighting control systems. Compatible with Click Mode MiniGrid modular system, featuring interchangeable switching modules and antimicrobial properties with 99.99% bacterial kill rate. BS EN 60669 compliant switch with 25-year manufacturer warranty. Suitable for domestic and commercial installations requiring multiple lighting circuit control. Accepts 2x 2.5mm² terminal connections with 0.6Nm torque specification. 146mm plate width fits standard 35mm backboxes.
Product Information
Product Features
Commercial Applications
Office Lighting Control
6-gang configuration ideal for open-plan offices requiring multiple lighting zone control from single switch position.
Retail Environment Management
Antimicrobial properties essential for high-touch retail environments. 25-year warranty reduces maintenance costs.
Healthcare Facility Installation
99.99% bacterial kill rate meets healthcare hygiene standards. 2-way switching enables flexible corridor lighting control.
Installation Specifications
Terminal Configuration
Accepts ring main cables up to 2x 2.5mm². 0.6Nm torque prevents over-tightening while ensuring secure connection.
Mounting Requirements
146mm plate width requires careful positioning. 120.6mm fixing centres match standard electrical box layouts.
Cable Management
25mm minimum backbox depth accommodates cable bend radius requirements. Top access terminals speed installation.
MiniGrid System Benefits
Modular Flexibility
Switch modules interchange with socket outlets and data points. Single plate accommodates mixed function requirements.
Future Upgrade Path
Compatible modules include USB sockets, dimmer switches, and Cat6 data outlets. Reduces rewiring for system changes.
Installation Efficiency
Single screw fixing secures all modules. Reduces installation time compared to individual plate mounting systems.
Frequently Asked Questions
-
What backbox depth is needed for CMA105 installation?
Minimum 25mm backbox depth required. Standard 35mm backboxes provide optimal installation space for cable terminations and switch mechanism.
-
Can CMA105 control LED downlight circuits effectively?
Yes, 10AX rating handles LED loads efficiently. Designed for resistive and inductive loads including LED drivers and fluorescent ballasts.
-
Is CMA105 compatible with other MiniGrid modules?
Fully compatible with Click Mode MiniGrid system. Switch modules interchange with sockets, dimmers, and data modules within same range.
-
What cable sizes fit CMA105 terminals?
Accepts 2x 2.5mm² or 4x 1.5mm² conductors maximum. Terminal screws require 0.6Nm torque for secure connection per BS EN 60669.
-
How effective are the antimicrobial properties?
Independently certified 99.99% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae within specified contact time.
-
Does CMA105 meet current wiring regulations?
Fully compliant with BS EN 60669-1 switch standards and Part P building regulations. CE marked for UK/EU installations.
