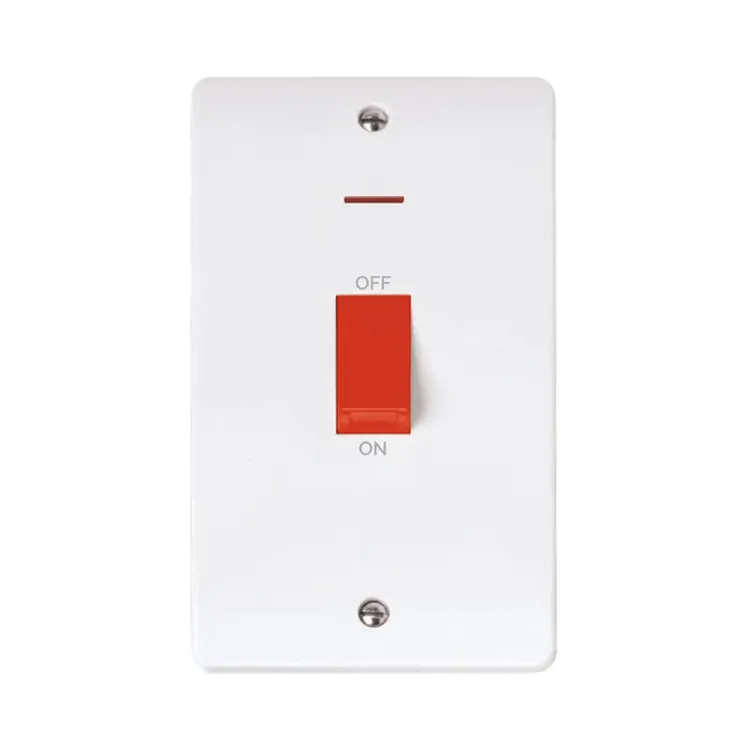

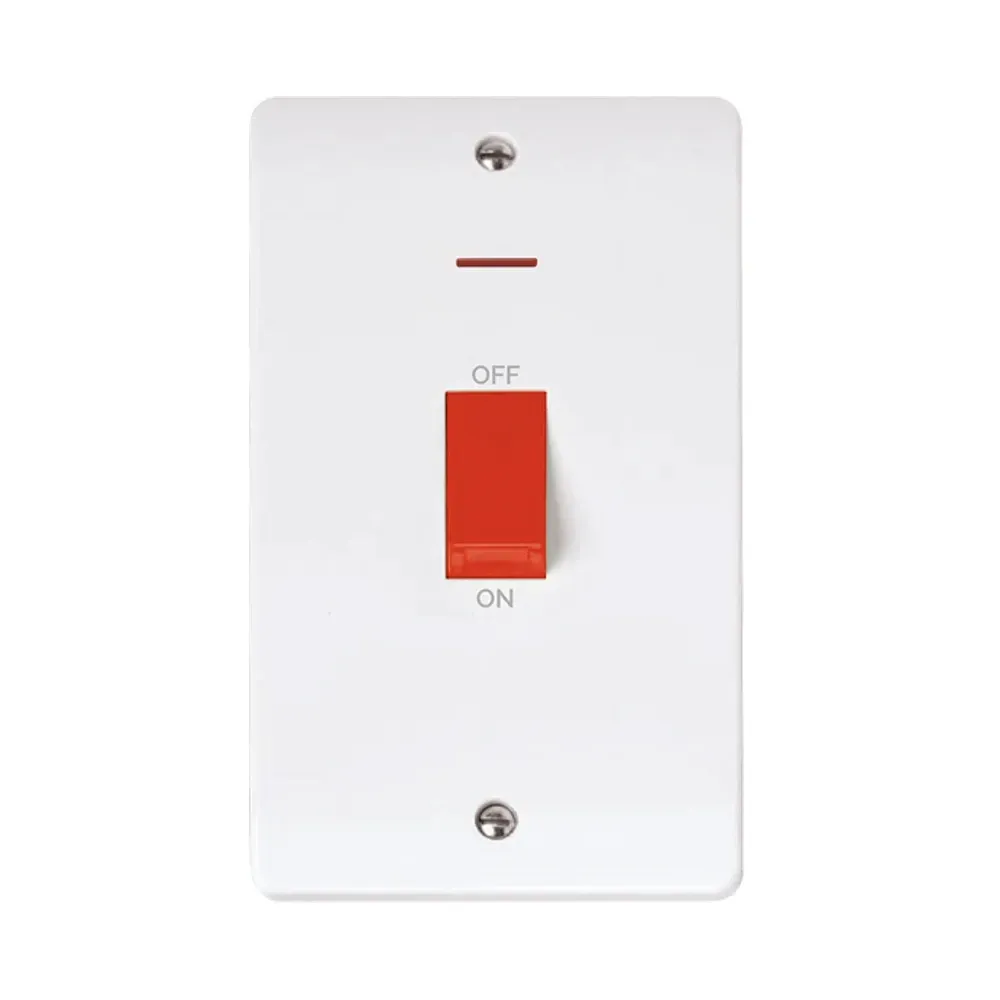

Click CMA2203 50A 2-Gang Vertical DP Switch LED - Polar White
50A double pole plate switch with 2-gang vertical configuration for high-load appliances requiring dedicated switching control. Features 6mm screw terminals accepting 16mm² conductors and red LED indicator for operational status. BS EN 60669-1 compliant with IP20 rating for domestic installations. Antimicrobial coating provides 99.9% bacterial kill rate. Requires 35mm minimum backbox depth with 120.6mm vertical fixing centres. 25-year manufacturer warranty covering materials and workmanship. Suitable for cooker circuits, immersion heaters, and industrial equipment up to 50A resistive load.
Product Information
Product Features
Documents
Technical Installation
Terminal Configuration
6mm diameter screw terminals with 2.5Nm torque specification. Twin earth terminals included for efficient installation and compliance with wiring regulations.
Mounting Requirements
35mm minimum backbox depth required. Standard 86x146mm plate dimensions with 120.6mm vertical fixing centres for professional installation.
High Current Capacity
50A resistive load rating suitable for cooker circuits, immersion heaters, and industrial equipment requiring double pole isolation switching.
Professional Applications
Cooker Circuit Control
Dedicated 50A capacity for electric cooker installations requiring double pole switching with visual indication for kitchen safety compliance.
Immersion Heater Systems
High-current switching for immersion heater control with LED status indication, suitable for domestic and light commercial water heating applications.
Industrial Equipment
50A resistive load capacity for workshop machinery and industrial equipment requiring reliable double pole isolation with visual confirmation.
Quality Standards
Antimicrobial Protection
Certified antimicrobial coating achieving 99.9% bacterial kill rate, important for kitchen installations and high-traffic commercial environments requiring hygiene compliance.
Extended Warranty
25-year manufacturer warranty covers materials and workmanship, demonstrating Click's confidence in product durability for professional installations.
Temperature Performance
Operates reliably from -5°C to +40°C ambient temperature range, suitable for varied installation environments including unheated utility areas.
Frequently Asked Questions
-
What backbox depth is required for the CMA2203 installation?
Requires minimum 35mm backbox depth with 120.6mm vertical fixing centres for proper installation and terminal access.
-
What cable size can the 6mm terminals accommodate?
Terminals accept 1 x 16mm² solid conductor with 2.5Nm torque specification, suitable for high-current cooker circuits.
-
Is this switch suitable for 50A cooker circuit applications?
Yes, rated for 50A resistive load at 250V AC, compliant with BS EN 60669-1 for cooker and immersion heater circuits.
-
What does the LED indicator show on this DP switch?
Red LED indicator displays on/off status for both poles, providing clear visual confirmation of switching position.
-
Does the CMA2203 meet current electrical installation standards?
Fully compliant with BS EN 60669-1 standard, UKCA marked, and suitable for domestic installations under 18th Edition wiring regulations.
