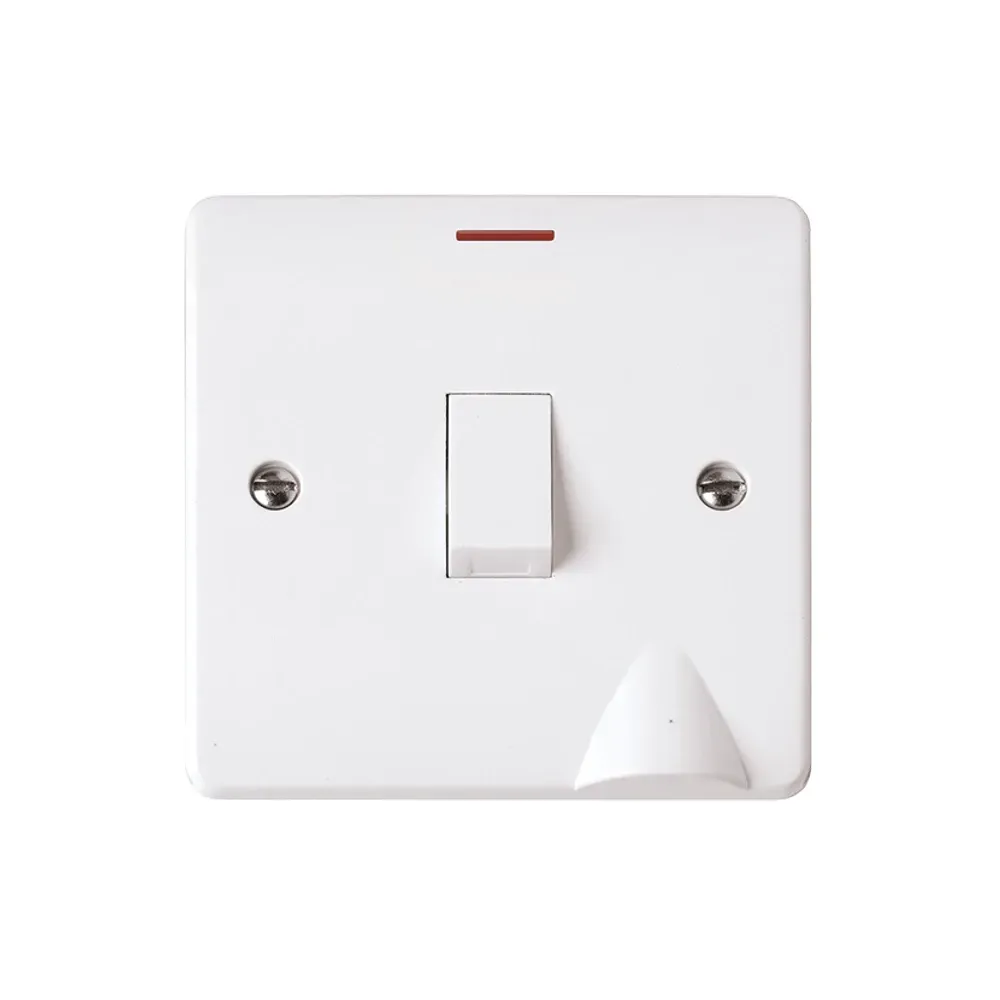

Click Mode CMA2023 20A double pole switch with LED indicator white finish

Photo is representative

Click Mode 20A 1-Gang DP Plate Switch LED Indicator - White

20A double pole plate switch with LED indicator for immersion heaters, storage heating, and high-load domestic circuits. Features screw terminals accepting 3x 2.5mm² conductors with 1.8Nm torque specification for secure connections. Optional 10mm flex outlet enables direct appliance connection. BS EN 60669-1 compliant with antimicrobial coating certified 99.9% effective against MRSA, E-Coli, and Salmonella. Suitable for 25mm minimum backbox depth with 86x86mm standard faceplate dimensions. Red LED indicates switching status - note: not suitable for 500V insulation testing. Twin earth terminals and 60.3mm fixing centres ensure straightforward installation. 25-year warranty coverage for professional confidence.

Product Information

Stock Code CMA2023
MPN —
GTIN —
Stock status: In stock
Price: £5.33
incl. VAT, 20% priced individually

Product Features
Current Rating 20A resistive load capacity
Switching Configuration Double Pole (DP) 1-gang plate switch
Operating Voltage 250V AC, 50Hz
Terminal Specification Screw terminals 5mm diameter, 1.8Nm torque
Terminal Capacity 3 x 2.5mm² solid conductors maximum
Backbox Compatibility 25mm minimum depth required
Plate Dimensions 86mm x 86mm x 9.5mm deep
LED Indicator Red LED switching status display
Flex Outlet Optional 10mm diameter bottom outlet
Antimicrobial Protection 99.9% kill rate certified (MRSA, E-Coli, Salmonella)
Standards Compliance BS EN 60669-1, CE/UKCA marked
Operating Temperature -5°C to +40°C range
IP Rating IP20 indoor use
Warranty Period 25 years manufacturer coverage

Installation Specifications

Terminal Connections

Brass terminals with steel passivated screws accept 3x 2.5mm² solid conductors. Twin earth terminals pre-fitted for faster installation.

Mounting Requirements

86x86mm faceplate with 60.3mm horizontal fixing centres. 9.5mm profile depth suits standard electrical accessories.

Professional Applications

Immersion Heating Control

20A capacity handles 3kW-4.8kW immersion heaters with double pole isolation for maintenance safety compliance.

Storage Heating Circuits

Suitable for Economy 7 storage heater switching with LED status indication for occupant convenience and energy management.

High-Load Appliances

Optional 10mm flex outlet enables direct connection of fixed appliances without separate outlet requirements.

Standards Compliance

Electrical Standards

BS EN 60669-1 compliance ensures switching performance and safety. CE/UKCA marking confirms UK market conformity.

Antimicrobial Certification

Independently tested 99.9% bacteria kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae for healthcare environments.

Frequently Asked Questions

  • What backbox depth required for the CMA2023 switch installation?

    Minimum 25mm backbox depth required. Standard 35mm backboxes provide optimal cable management space for 3x 2.5mm² conductors.

  • Can this 20A switch control immersion heaters and storage heaters?

    Yes, 20A resistive load rating suitable for immersion heaters up to 4.8kW and storage heating circuits requiring double pole isolation.

  • Why does the LED affect insulation testing procedures?

    Red LED indicator circuit prevents 500V insulation testing. Use 250V testing or isolate LED circuit during electrical installation testing procedures.

  • What terminal torque specification ensures secure electrical connections?

    1.8Nm torque specification for 5mm screw terminals. Use calibrated torque screwdriver to prevent over-tightening damage to brass terminals.

  • Does this switch meet Part P Building Regulations requirements?

    Yes, BS EN 60669-1 compliance meets Part P requirements. CE/UKCA marking confirms conformity with UK electrical safety regulations.
