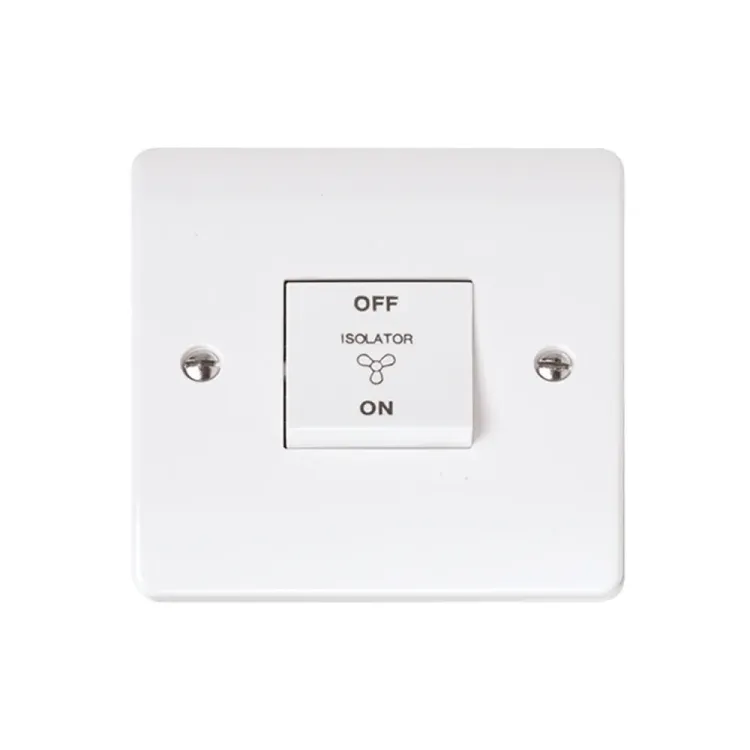

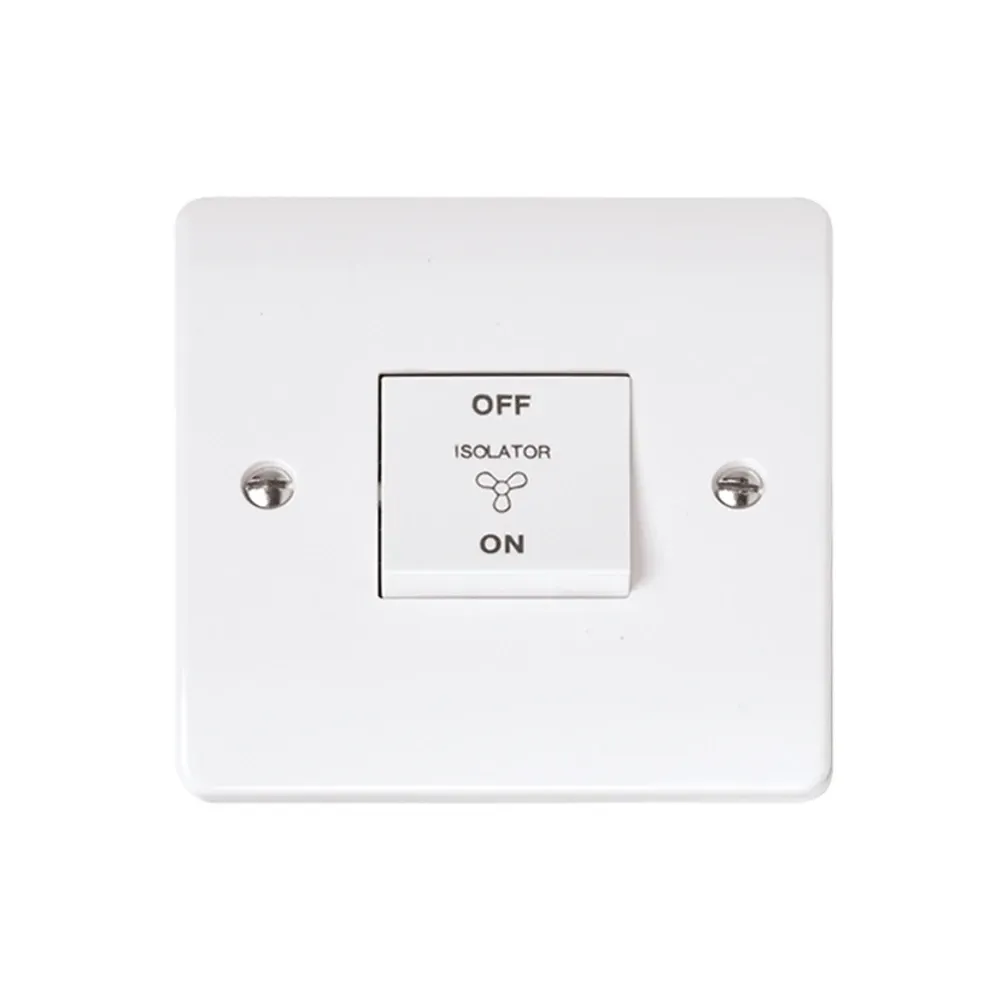

Click 10A Fan Isolator Switch 3 Pole - Polar White
10A 3-pole fan isolation switch with ON/OFF switching positions for bathroom ventilation systems. Screw terminals accept 4 x 1.5mm² or 2 x 2.5mm² conductors with 0.5Nm torque specification. Single gang plate fits standard 86x86mm aperture with 16-47mm backbox depth compatibility. BS EN 60669 compliant isolator with IP20 ingress protection for domestic installations. Antimicrobial treatment provides 99.9% kill rate against bacteria. Professional-grade construction with urea formaldehyde plate, brass terminals and silver-contact switching mechanism. 20-year warranty covers residential and commercial applications.
Online:
Product Features
| Current Rating | 10A resistive load at 250V~ 50Hz |
|---|---|
| Pole Configuration | 3 pole switching mechanism |
| Switch Function | Isolator with ON/OFF positions |
| Gang Size | Single gang 86mm x 86mm plate |
| Terminal Type | Screw terminals 3.5mm diameter |
| Terminal Capacity | 4 x 1.5mm² or 2 x 2.5mm² conductors |
| Terminal Torque | 0.5Nm tightening specification |
| Backbox Compatibility | 16-47mm depth range, minimum 16mm |
| IP Rating | IP20 ingress protection |
| Compliance Standards | BS EN 60669-2-4, BS EN 60669-1 |
| Antimicrobial Treatment | 99.9% kill rate certified to ISO 22196 |
| Warranty | 20 years comprehensive coverage |
Applications
Bathroom Ventilation
Primary application for extractor fan isolation in domestic bathrooms. Install outside zones per BS 7671 requirements.
Kitchen Extraction
Commercial kitchen ventilation control for maintenance isolation. 10A capacity handles standard extraction fan loads.
Utility Areas
Laundry room and utility ventilation systems. Provides safe isolation for equipment servicing and maintenance.
Installation
Terminal Connections
Connect L1, L2, L3 terminals per wiring diagram. Tighten screws to 0.5Nm using 3.5mm flat blade screwdriver.
Mounting Requirements
Standard 86x86mm aperture with 60.3mm fixing centres. Compatible with 16-47mm depth metal or plastic backboxes.
Cable Entry
Top or bottom cable entry through 20mm knockouts. Ensure adequate conductor length for terminal connections.
Standards
BS EN 60669-2-4
Specific standard for isolating switches covering mechanical endurance, temperature rise and dielectric properties testing.
Low Voltage Directive
CE marking compliance under 2006/95/EC directive for electrical equipment 50-1000V AC supply voltages.
Frequently Asked Questions
-
What backbox depth is required for the CMA020 fan isolator?
Minimum 16mm depth backbox required, compatible with standard 25-47mm depth enclosures for flush mounting installations.
-
Can this isolator switch handle 10A fan motor loads?
Yes, rated for 10A resistive loads at 250V. Suitable for standard bathroom extractor fans and ventilation equipment.
-
Is the CMA020 suitable for bathroom zone 2 installation?
IP20 rating limits use to areas outside bathroom zones. Install minimum 0.6m from bath/shower edges per BS 7671.
-
What cable sizes fit the screw terminals?
Terminals accommodate 4 x 1.5mm² conductors or 2 x 2.5mm² cables. Tighten to 0.5Nm torque specification using 3.5mm screwdriver.
-
Does this fan isolator meet Part P building regulations?
BS EN 60669 compliance ensures regulatory approval. Installation in bathrooms requires qualified electrician for Part P notification.
-
Why does the switch not work after installation?
Check L1, L2, L3 terminal connections are secure to 0.5Nm torque. Verify correct live feed to appropriate terminal per wiring diagram.
