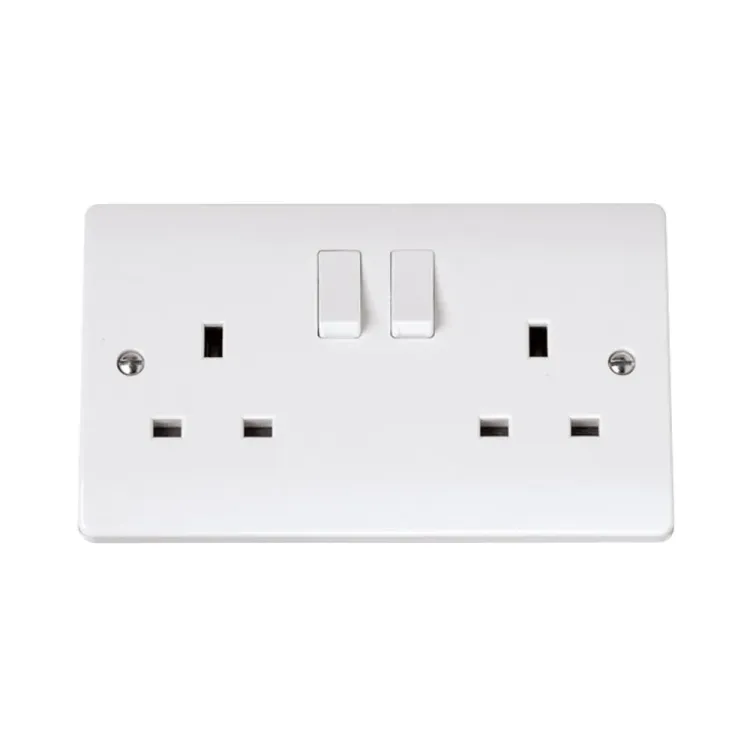

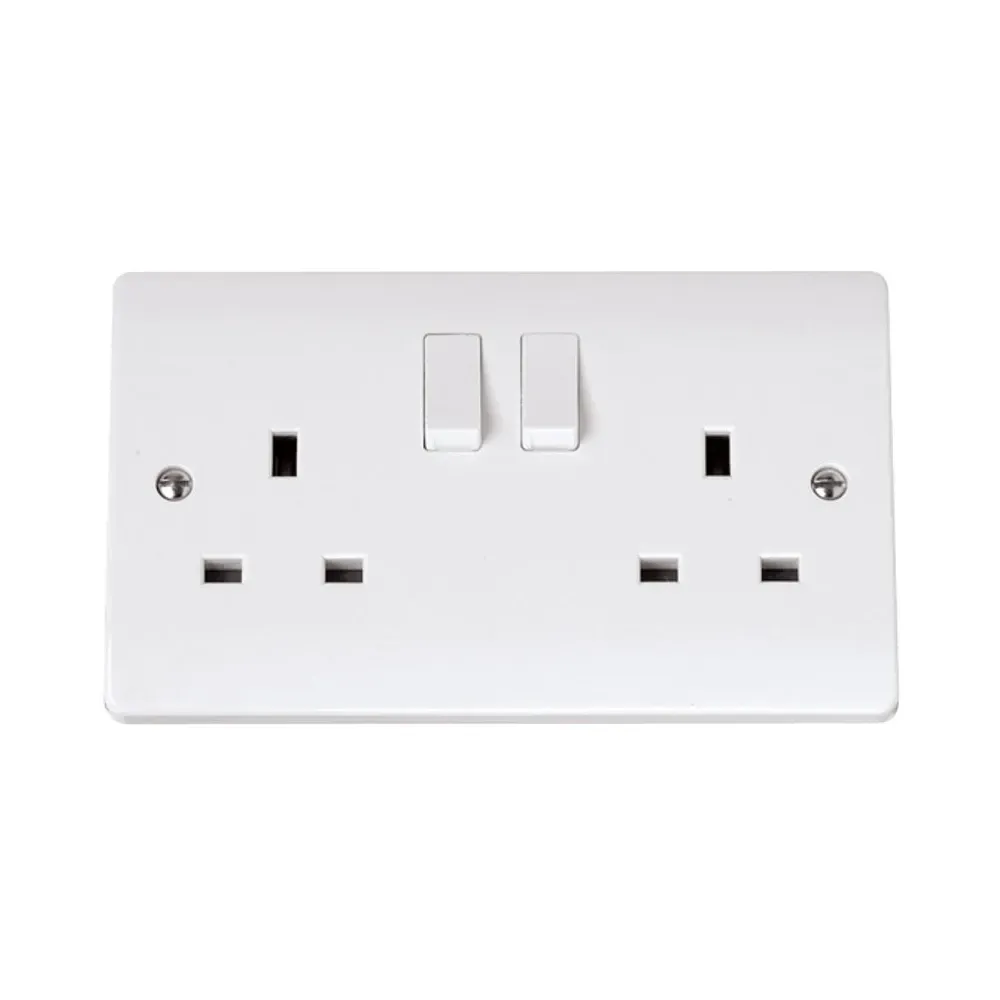

Click Mode 13A 2-Gang DP Switched Socket - Polar White
13A double pole switched socket outlet with 2-gang configuration for domestic installations. Features individual switching for each outlet with 26A total capacity (13A per socket). 146mm width fits standard 2-gang backbox with 25mm depth compatibility. Antimicrobial Polar White finish provides 99.9% bacterial reduction within 24 hours. Captive terminals accept 2.5mm² cable with 2Nm torque specification. BS 1363-2 compliant with twin earth terminals and safety shutters. Ideal for kitchen worktops, utility rooms and workshop installations requiring switched control of multiple appliances.
Online:
Product Features
| Current Rating | 13A per socket (26A total capacity) |
|---|---|
| Configuration | 2-gang double pole switched |
| Switching Type | Individual DP switches per outlet |
| Plate Width | 146mm standard 2-gang |
| Backbox Compatibility | 25mm minimum depth |
| Terminal Type | Captive screw terminals 2Nm torque |
| Cable Capacity | 2.5mm² with twin earth |
| Antimicrobial Properties | 99.9% bacterial kill rate 24hrs |
| Finish | Polar White polymer |
| Safety Features | Child safety shutters BS 1363-2 |
| Compliance | BS 1363-2 socket outlets |
| Brand Series | Click Mode range |
Professional Installation Specifications
Terminal Configuration
Captive screw terminals with 2Nm torque specification. Twin earth terminals fitted as standard for faster ring main connections.
Mounting Requirements
146mm width requires standard 2-gang backbox. 25mm minimum depth suitable for most installations, 35mm recommended for cable management.
Cable Specifications
Accepts 2.5mm² twin and earth cable standard for 20A ring final circuits. Terminal access from top for efficient installation.
Electrical Performance Features
Current Capacity
13A rating per outlet provides 26A total capacity. Suitable for simultaneous operation of high-power appliances up to individual socket limits.
Double Pole Switching
Individual DP switches provide complete isolation of live and neutral per outlet. Essential for certain appliance types requiring full disconnection.
Safety Protection
Integral safety shutters meet BS 1363-2 requirements. Antimicrobial surface technology provides continuous bacterial protection in use.
Commercial Applications
Kitchen Installations
Worktop mounting for appliances requiring switched control. Antimicrobial finish maintains hygiene standards in food preparation areas.
Utility Areas
Laundry rooms and plant rooms where appliances need individual isolation. Double pole switching suitable for motor loads and heating equipment.
Workshop Environments
Bench installations for power tools and equipment. Individual switching allows selective equipment control while maintaining other outlet availability.
Frequently Asked Questions
-
What backbox depth is required for the CMA1036 socket?
Requires minimum 25mm backbox depth for flush mounting. Standard 35mm depth provides easier cable management and future modifications.
-
Can both outlets be controlled independently on this socket?
Yes, each 13A outlet has individual double pole switching, allowing independent control of connected appliances with complete isolation when switched off.
-
What are the benefits of double pole switching over single pole?
Double pole switching isolates both live and neutral conductors, providing complete disconnection for safer maintenance and compliance with some appliance requirements.
-
What torque setting should be used for terminal connections?
Terminal screws should be tightened to 2Nm torque specification using appropriate torque screwdriver to ensure secure connection without over-tightening damage.
-
Is the antimicrobial finish suitable for kitchen installations?
Yes, the antimicrobial Polar White finish provides 99.9% bacterial reduction within 24 hours, ideal for food preparation areas and hygiene-critical environments.
-
Does this socket meet current wiring regulations?
Fully compliant with BS 1363-2 and meets 18th Edition wiring regulations requirements including safety shutters and appropriate current ratings.
