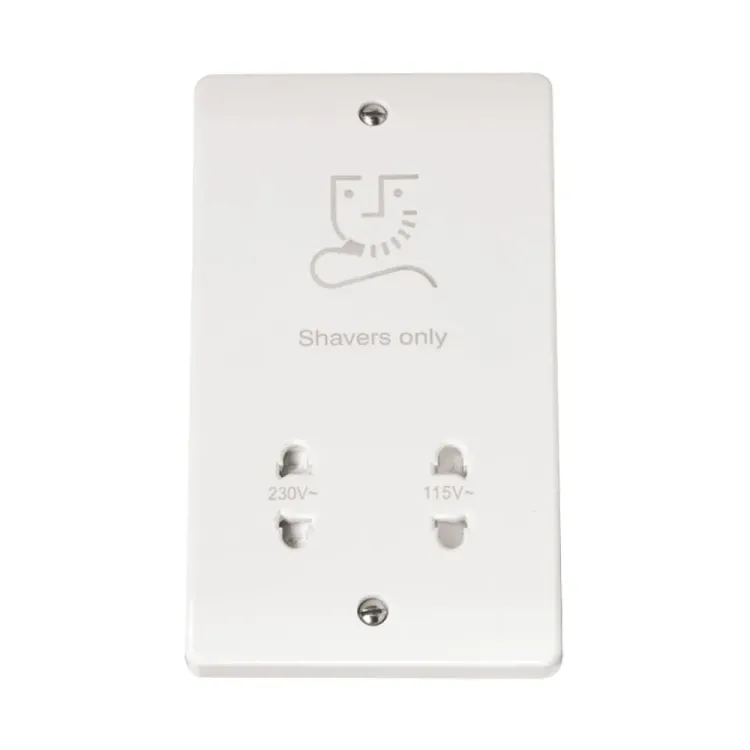

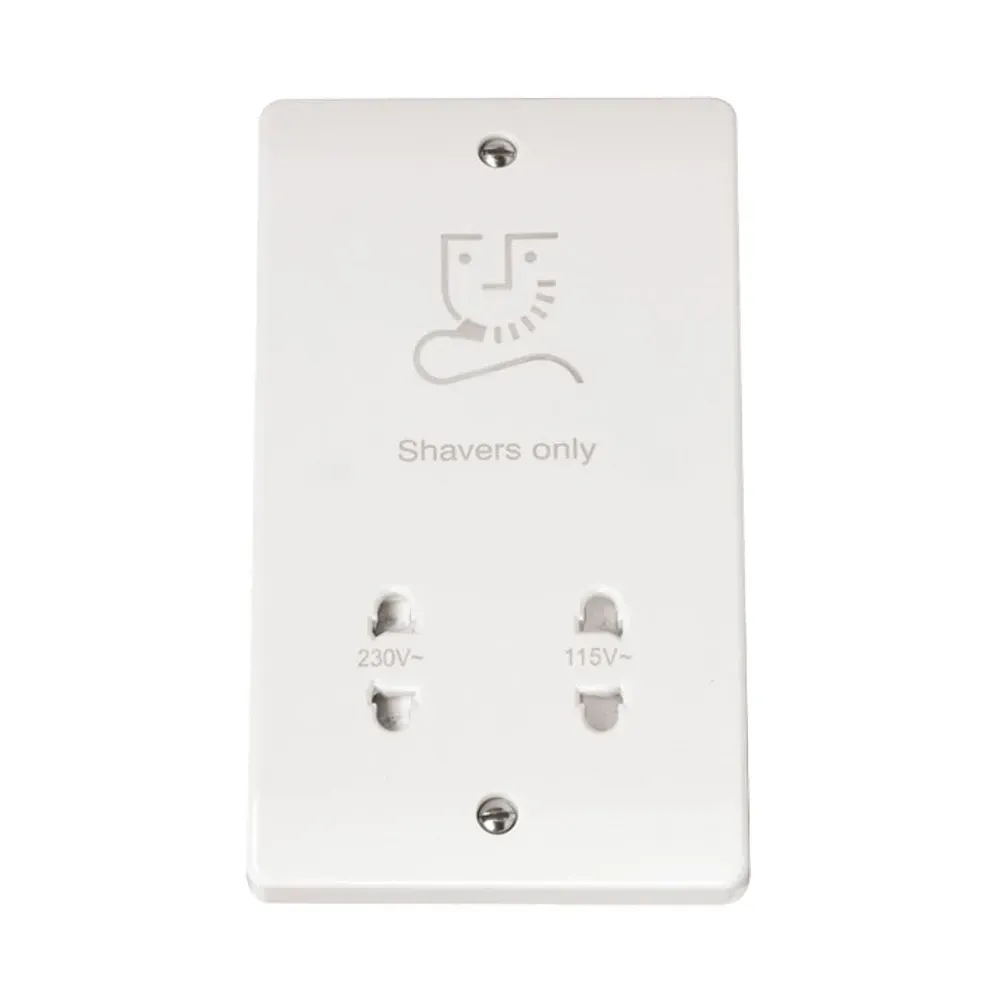

Click Mode 115V/230V Dual Shaver Socket CMA100 - White
115V/230V dual voltage shaver socket with isolation transformer rated 20VA for bathroom installations. BS EN 61558-2-5 compliant with PTC resettable fuse protection and antimicrobial Urea construction. Safety interlock allows single outlet operation only. Requires 47mm backbox depth for flush mounting with 120.6mm fixing centres.
Online:
Product Features
| Voltage Rating | 115V/230V dual voltage operation |
|---|---|
| Load Rating | 20VA at 115V and 230V |
| Transformer Type | Double wound isolating transformer |
| Safety Protection | PTC resettable fuse thermal protection |
| Bathroom Compliance | BS EN 61558-2-5:2010 approved |
| Backbox Requirement | 47mm depth minimum |
| Fixing Centres | 120.6mm vertical spacing |
| Terminal Capacity | 2x 1.5mm² or 1x 2.5mm² solid |
| Construction Material | Antimicrobial Urea formaldehyde |
| IP Rating | IP21 for bathroom zone applications |
| Safety Interlock | Single outlet operation only |
| Temperature Range | -5°C to +40°C operational |
Professional Installation Requirements
Backbox Specifications
47mm minimum depth required for isolation transformer clearance. Standard 35mm boxes insufficient. 120.6mm fixing centres for secure mounting.
Terminal Connections
3.5mm terminal screws with 0.5Nm torque setting. Accepts 2x 1.5mm² or single 2.5mm² solid conductors for bathroom circuits.
Circuit Protection
Connect via bathroom lighting circuit or dedicated 20A radial. RCD protection mandatory per BS 7671 bathroom regulations for zone compliance.
Bathroom Safety Standards
BS EN 61558-2-5 Compliance
Double wound isolating transformer provides Class II insulation. Meets 2010 standard for bathroom shaver units with 20VA power limitation.
Zone Classification
IP21 rating suitable for bathroom zones per BS 7671. Safety interlock prevents simultaneous outlet operation for enhanced protection.
Thermal Protection
PTC resettable fuse provides automatic overload protection. Self-resetting thermal cutout operates at safe temperature limits without replacement.
International Compatibility
Dual Voltage Operation
115V output for North American shavers, 230V for European models. Automatic voltage selection based on plug type inserted.
Frequency Compatibility
50/60Hz operation supports international appliances. 20VA rating sufficient for most electric shavers and electric toothbrushes up to maximum load.
Safety Interlock System
Mechanical interlock prevents dual outlet use. Safety feature ensures only appropriate voltage is available when shaver plug is inserted.
Frequently Asked Questions
-
What backbox depth is required for CMA100 installation?
Requires minimum 47mm backbox depth with 120.6mm vertical fixing centres. Standard 35mm backboxes are insufficient for the isolation transformer housing.
-
Can both 115V and 230V outlets be used simultaneously?
No, the safety interlock system allows only one outlet to operate at a time, preventing simultaneous use for safety compliance.
-
Is the CMA100 suitable for bathroom zone 2 installation?
Yes, BS EN 61558-2-5:2010 compliance with isolation transformer and IP21 rating makes it suitable for bathroom installation per zone requirements.
-
What is the maximum load capacity for each voltage?
20VA maximum at both 115V and 230V outputs. Double wound isolating transformer provides safe power delivery for electric shavers and toothbrushes.
-
How does the PTC fuse protection work?
PTC (Positive Temperature Coefficient) resettable fuse provides automatic thermal protection, cutting power during overload conditions and self-resetting when cooled.
-
Does the antimicrobial construction meet current hygiene standards?
Urea formaldehyde construction provides inherent antimicrobial properties that inhibit bacterial and viral growth, certified for antiviral and antibacterial performance.
