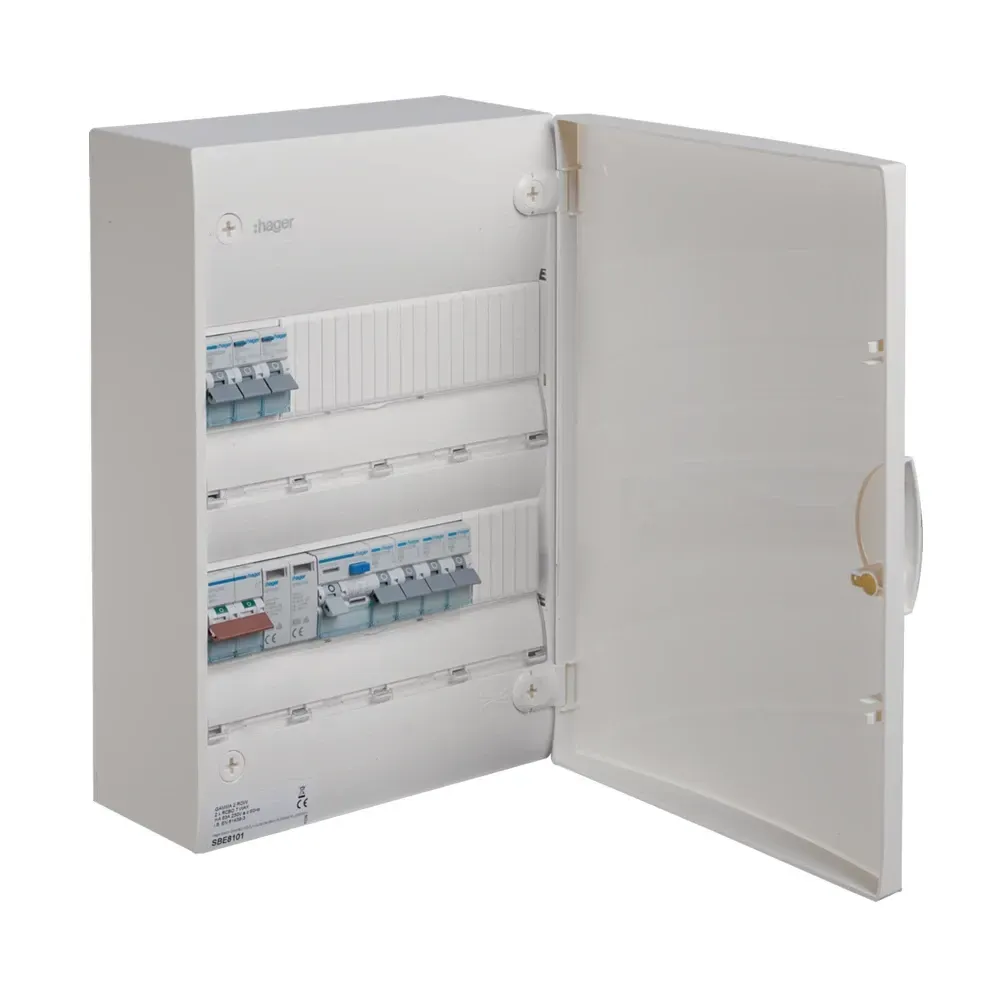

Photo is representative
Hager Consumer Unit 2 Row 26 Module Isolator Surge SBE8101SPD
Pre-wired Gamma series consumer unit featuring integrated surge protection and dual RCBO circuits. Compact surface-mount design ideal for residential installations.
Configuration:
- 1x 63A RCD (30mA Type AC)
- 1x Type 2 SPD
- 1x 32A MCB (Type B)
- 4x 20A MCB (Type B)
- 2x 6A RCBO (30mA Type B)
Technical Details:
- 26 module capacity (13 modules per row)
- 63A rated current
- No main switch included - separate isolator required
- IP40 / IK07 rated polystyrene enclosure
- Transparent snap-lock door
- Surface mount installation
- Pre-wired neutral and earth terminal blocks
- Class II double insulated
- Dimensions: 375H x 250W x 103D mm
- RAL 9010 (Pure white)
Note: This unit does not include a main isolation switch. For compliant installation, consider adding a 63A or 100A main switch (see frequently bought together).
Online:
Product Features
Product Code | SBE8101SPD |
---|---|
Depth | 103 mm |
Width | 250 mm |
Height | 375 mm |
Material | Polystyrol (PS) |
Range Name | Gamma |
Fixing Mode | Surface-Mounting |
Number of Modules | 26 |
RAL Colour Number | 9010 |
Protection Index IP | IP40 |
Type of Door Closing | Latch |
Type of Protection Devices | Miniature- / Earth Leakage Circuit Breaker |
Box Content
- 1 x 63A RCD
- 1 x SPD
- 2 x 6A RCBO
- 4 x 20A MCB
- 1 x 32A MCB
