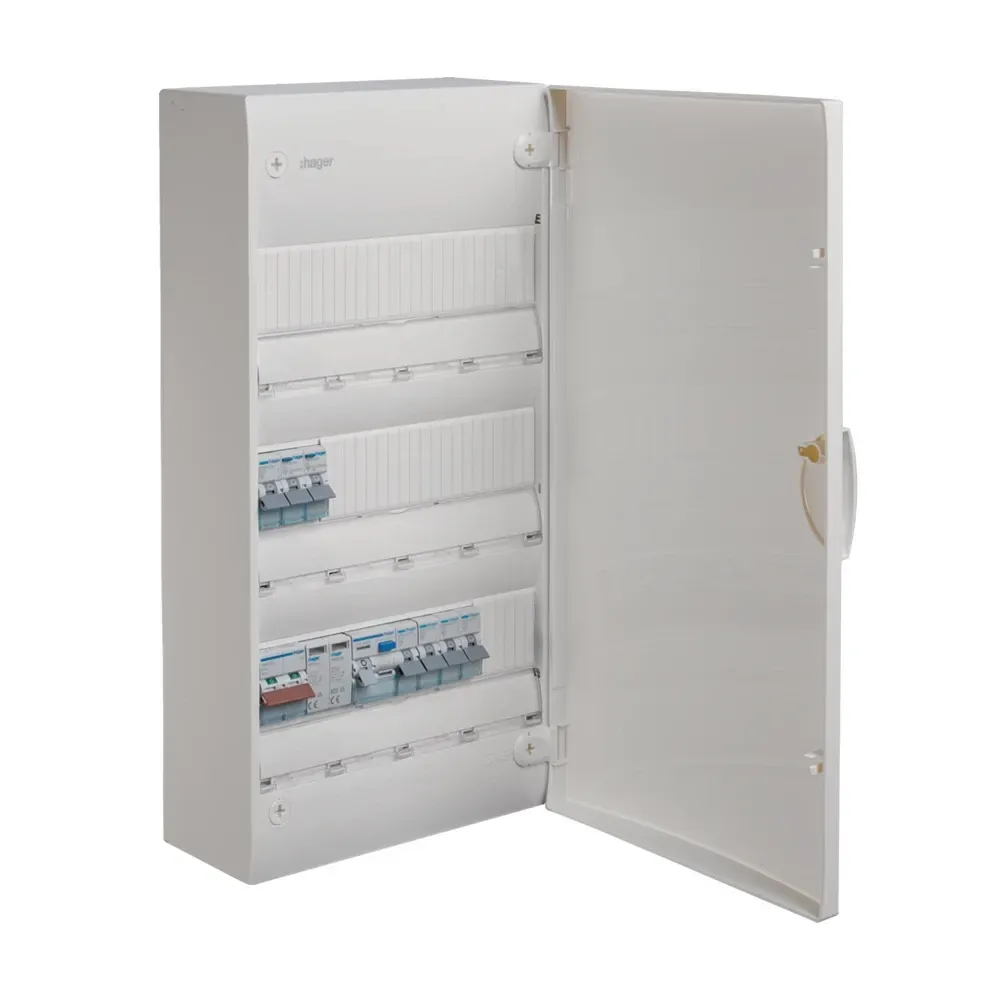

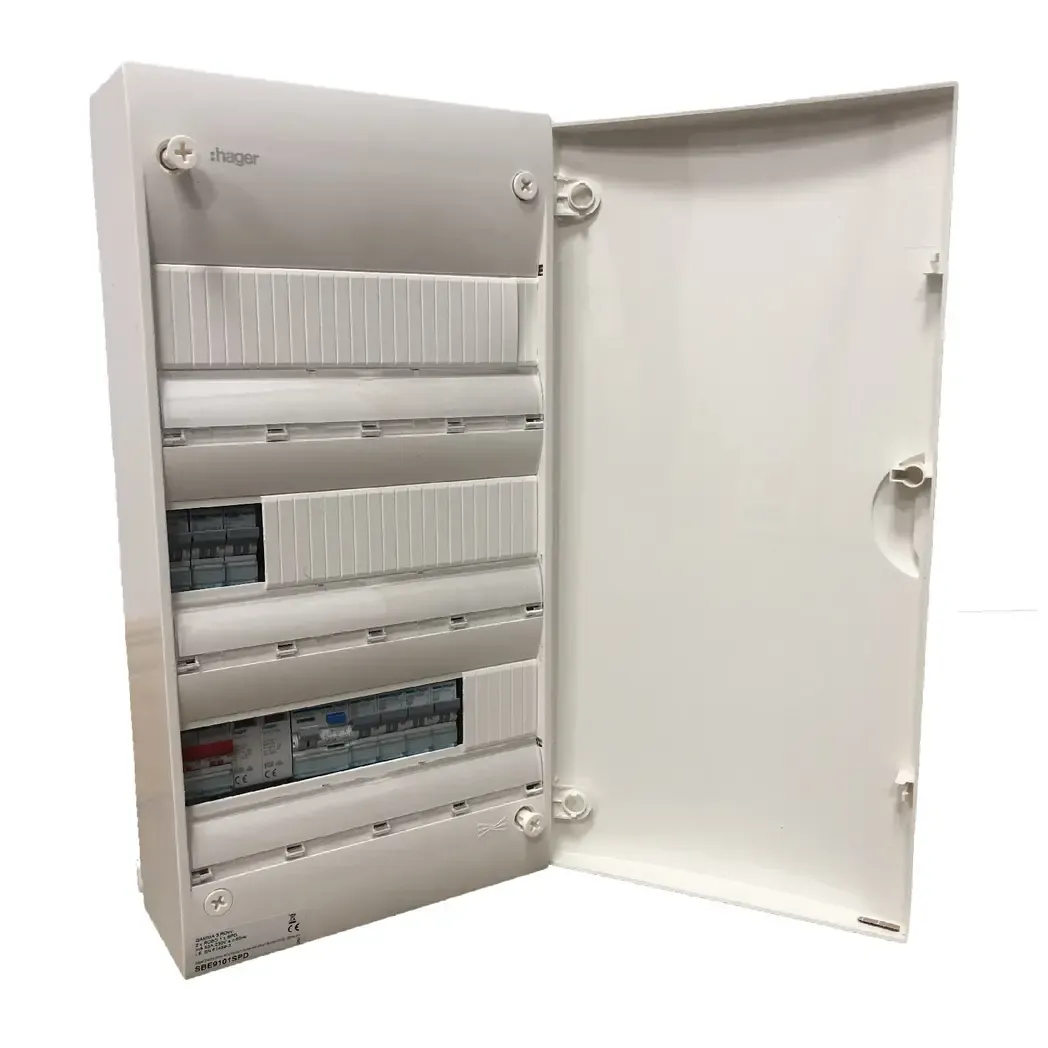

Hager Consumer Unit 3 Row 39 Module Isolator Surge SBE9101SPD

Pre-wired Gamma series consumer unit featuring integrated surge protection and dual RCBO circuits. Compact surface-mount design ideal for residential installations.

Configuration:

• 1x 63A RCD (30mA Type AC)
• 1x Type 2 SPD
• 1x 32A MCB (Type B)
• 4x 20A MCB (Type B)
• 2x 6A RCBO (30mA Type B)

Technical Details:

• 39 module capacity (13 modules per row)
• 63A rated current
• No main switch included - separate isolator required
• IP40 / IK07 rated polystyrene enclosure
• Transparent snap-lock door
• Surface mount installation
• Pre-wired neutral and earth terminal blocks
• Class II double insulated
• Dimensions: 500H x 250W x 103D mm
• RAL 9010 (Pure white)

Note: This unit does not include a main isolation switch. For compliant installation, consider adding a 63A or 100A main switch (see frequently bought together).
