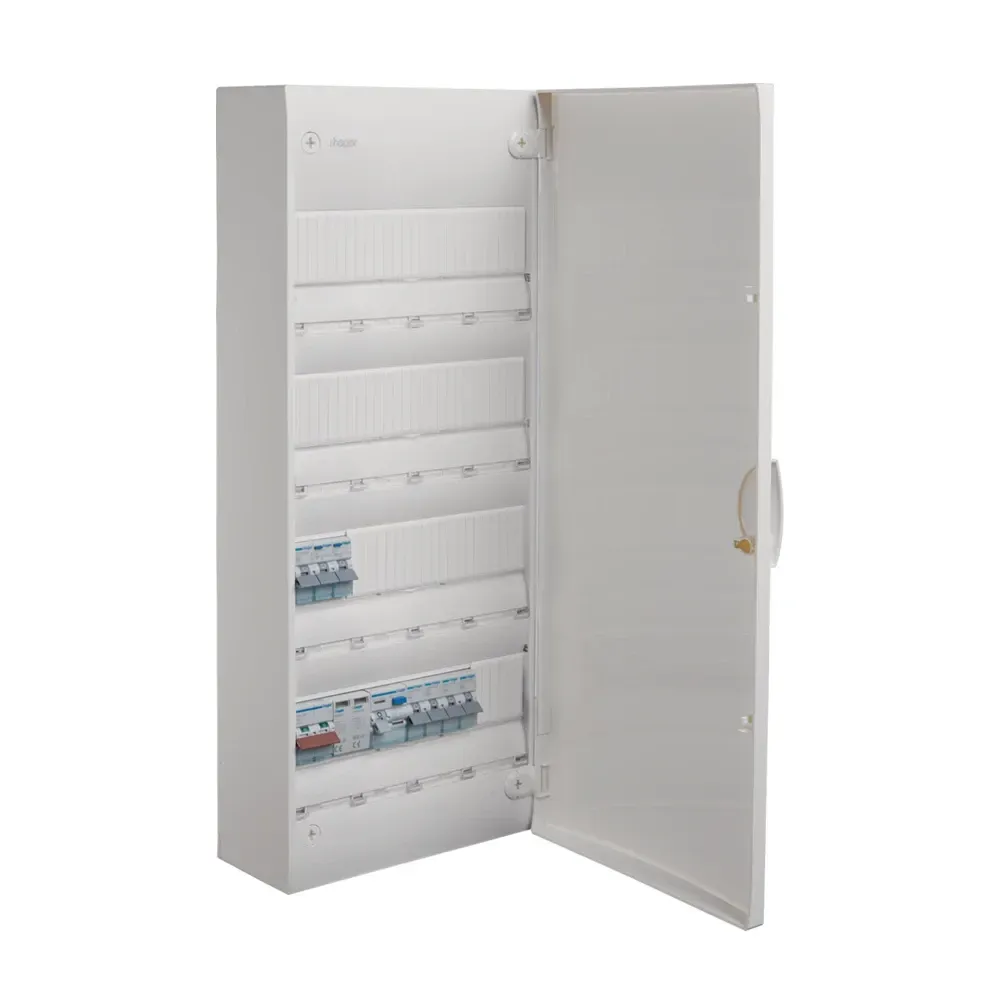

Hager Gamma Series, SBE10101SPD, 4 row, 52Module, 63A RCD, SPD, 20A-32AMCB, 6A RCBO

Photo is representative

Hager Consumer Unit, 4 Row, 52 Module, Surge Protected SBE10101SPD

Pre-wired Gamma series consumer unit featuring integrated surge protection and dual RCBO circuits. Compact surface-mount design ideal for residential installations.

Configuration:

  • 1x 63A RCD (30mA Type AC)
  • 1x Type 2 SPD
  • 1x 32A MCB (Type B)
  • 4x 20A MCB (Type B)
  • 2x 6A RCBO (30mA Type B)

Technical Details:

  • 52 module capacity (13 modules per row)
  • 63A rated current
  • No main switch included - separate isolator required
  • IP40 / IK07 rated polystyrene enclosure
  • Transparent snap-lock door
  • Surface mount installation
  • Pre-wired neutral and earth terminal blocks
  • Class II double insulated
  • Dimensions: 625H x 250W x 103D mm
  • RAL 9010 (Pure white)

Note: This unit does not include a main isolation switch. For compliant installation, consider adding a 63A or 100A main switch (see frequently bought together).

Stock Code: SBE10101SPD

Online:

5 available
Price 322.95 £
incl. VAT, 20% priced individually

Product Features

Product Code SBE10101SPD
Dimensions 625mm (H) x 250mm (W) x 103mm (D)
Range Name Gamma
Fixing Mode Surface
Number of Modules 52
Protection Index IP IP40

Box Content

  • 1 x 63A RCD
  • 1 x SPD
  • 2 x 6A RCBO
  • 4 x 20A MCB
  • 1 x 32A MCB
