12 Core 0.75mm2 LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

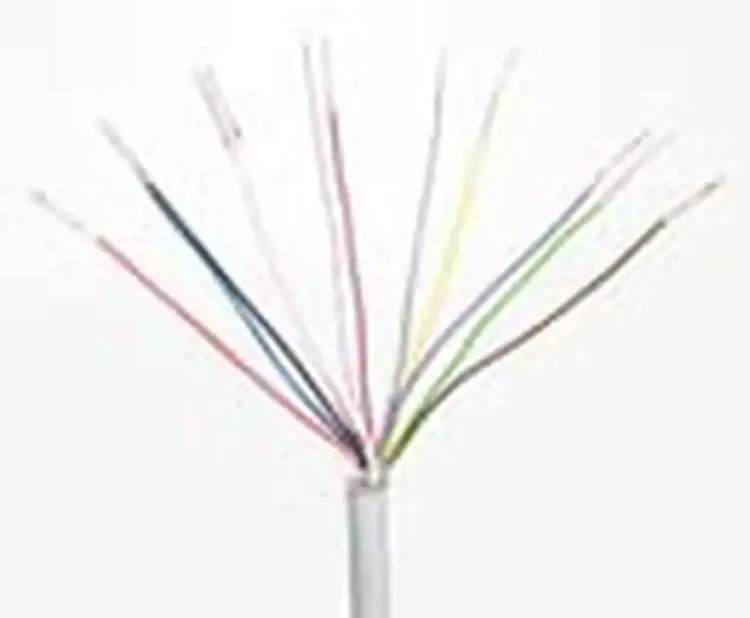

Photo is representative

12 Core 0.75mm2 LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1275LIYCY
GTIN —
Stock status: In stock

priced per metre

Net price: £3.03

Gross price

£3.63

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

12-core LIYCY screened control cable with LSZH insulation and sheath. Designed for measuring, checking and control equipment where EMC shielding is required and fire safety is a factor — LSZH construction keeps smoke and toxic gas emissions down in the event of a fire.

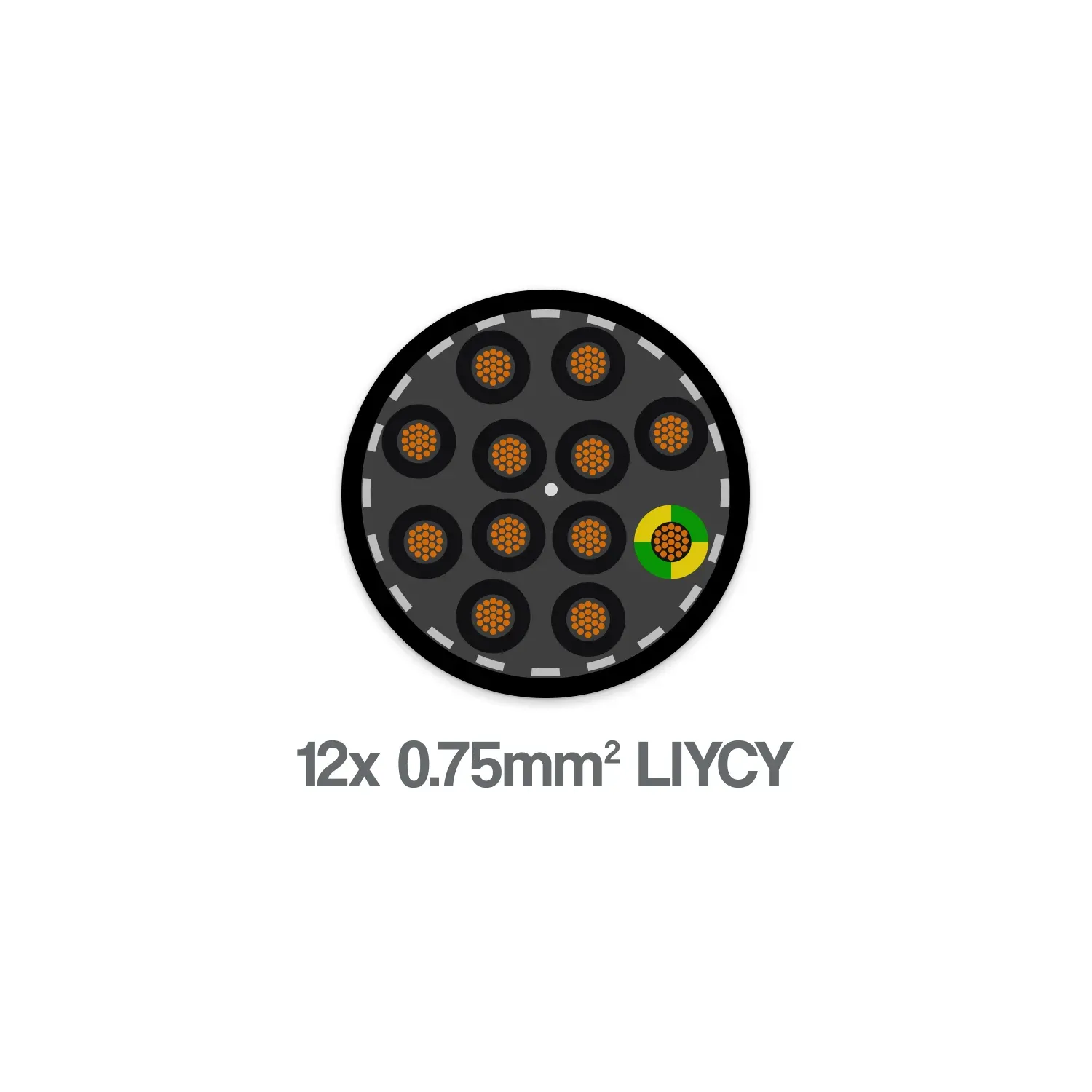

Tinned Cu braid screen over plain annealed flexible conductors. 11 black numbered cores plus a green/yellow earth. Rated to BS EN 50525-3-11.

  • 12 cores: 11 black numbered + G/Y earth
  • 0.75mm² CSA, 24⁄0.20mm stranding
  • Tinned Cu wire braid screen
  • LSZH insulation and grey LSZH sheath
  • 300/500V, 16A current carrying capacity (in air at 30°C)
Specifications

Voltage Rating

300/500V

Number of Cores

12

Conductor Size

0.75mm²

Core Identification

11 black numbered cores + earth (green/yellow)

Stranding

24/0.20mm

Conductor Material

Plain annealed flexible copper

Screen

Tinned copper wire braid

Insulation

Low Smoke Zero Halogen (LSZH)

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Standard

BS EN 50525-3-11 / VDE 0250
