LIY-CY 2 Core 0.75mm2 300 500V LSZH Screened Flexible Control Cable Grey

Photo is representative

LIY-CY 2 Core 0.75mm2 300 500V LSZH Screened Flexible Control Cable Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 275LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.81

Gross price

£0.97

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

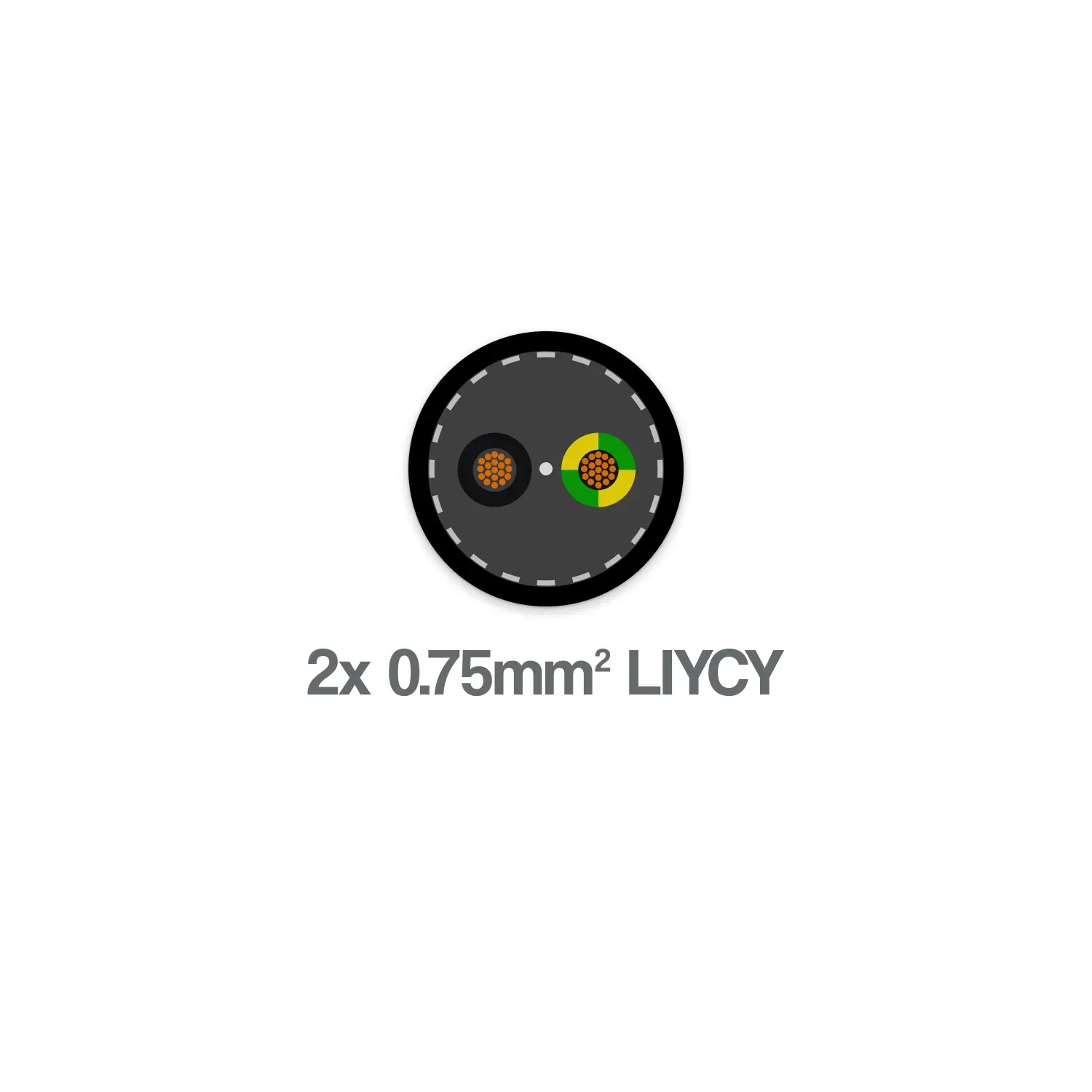

LIY-CY screened flexible control cable, 2 core 0.75mm², LSZH insulation and sheath. Built for signal and data circuits where both EMC screening and fire safety are required — measuring, checking, and control equipment in fire-critical installations.

Tinned Cu wire braid screen handles interference protection. LSZH construction cuts toxic gas and smoke output if there’s a fire.

  • 300/500V rated
  • OD 5.50mm — gland size 20/16mm
  • 16A current carrying capacity in air at 30°C
  • Black numbered cores, grey sheath
  • Complies with BS EN 50525-3-11 / VDE 0250
Specifications

Voltage Rating

300/500V

Cores

2

Conductor CSA

0.75mm²

Stranding

24/0.20mm

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Core Identification

Black numbered cores

Outside Diameter

5.50mm

Gland Size

20/16mm

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Weight

43 kg/km

Standard

BS EN 50525-3-11 / VDE 0250
