7 Core 0.75mm2 LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

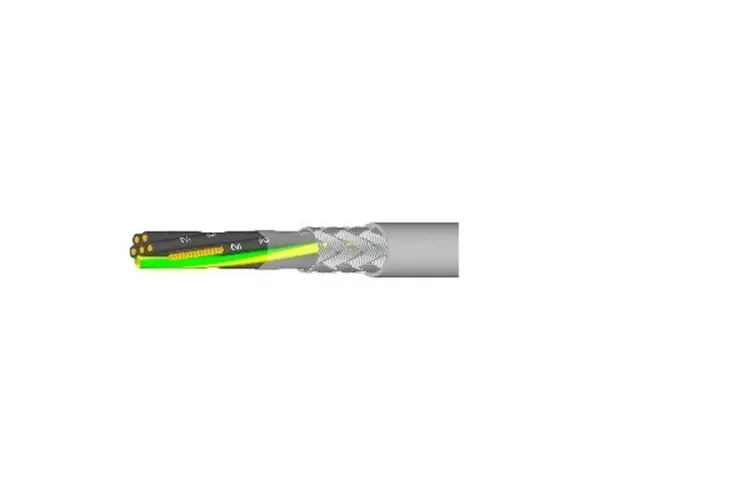

Photo is representative

7 Core 0.75mm2 LiYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 775LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.42

Gross price

£2.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

7-core LiYCY screened control cable with LSZH insulation and sheath. Rated 300/500V, built to BS EN 50525-3-11 / VDE 0250. Suited to EMC-sensitive control, measuring, and signal circuits where fire safety is a requirement — LSZH construction limits toxic gas and smoke output in a fire.

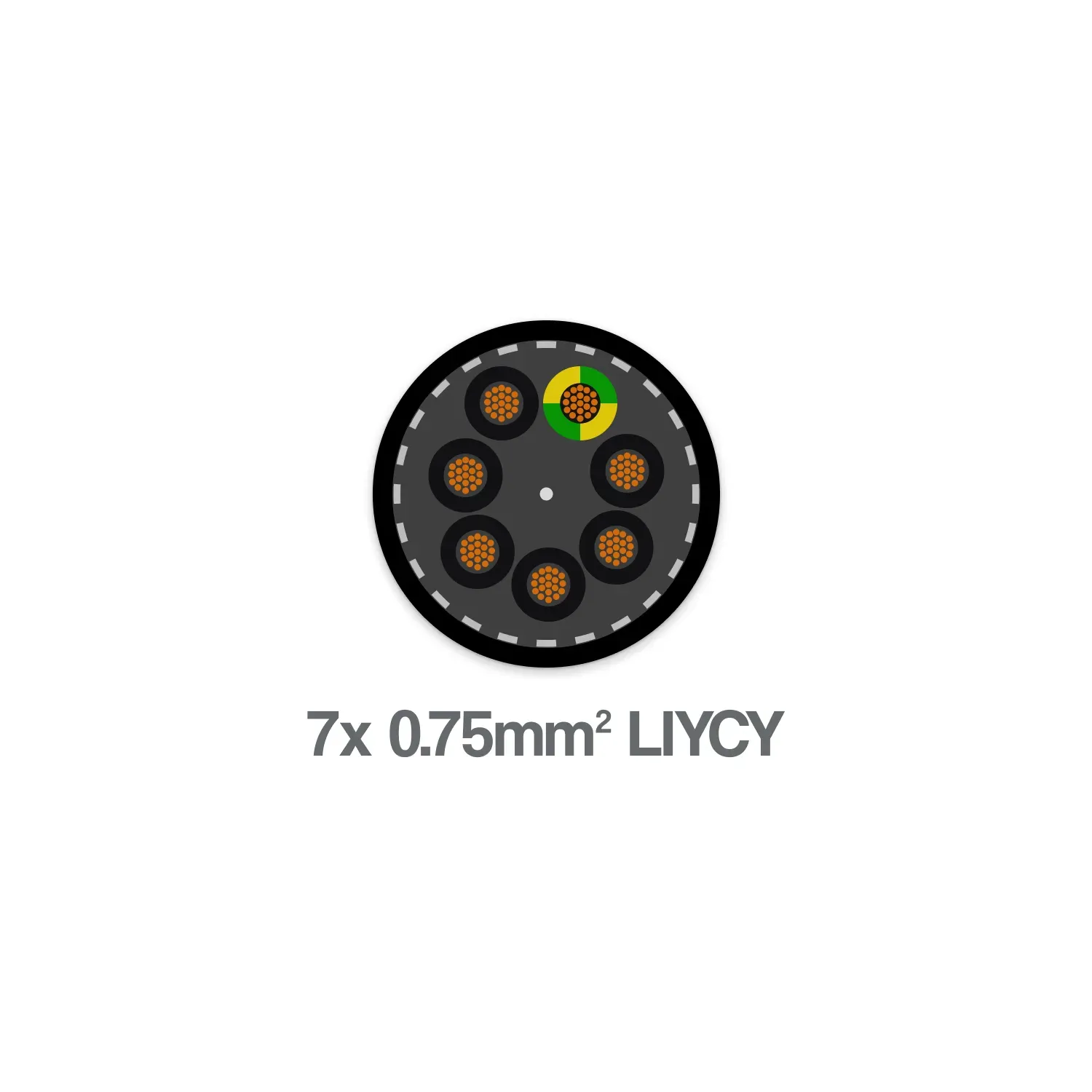

Cores are 6 black numbered plus a G/Y earth. Tinned copper wire braid screen gives interference protection. OD is 7.60mm — suits a 20/16mm gland.

  • Conductor: 24⁄0.20mm plain annealed flexible copper, 0.75mm² CSA
  • Screen: Tinned Cu wire braid
  • Sheath: LSZH, grey
  • Current capacity: 16A in air at 30°C
  • Temp range: -5°C to +70°C flexing / -20°C to +70°C static
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Number of Cores

7

Conductor Size

0.75mm²

Stranding

24/0.20mm

Core Identification

6 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Outside Diameter

7.60mm

Gland Size

20/16mm

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Weight

103 kg/km
