LiYCY 4 Core 0.75mm2 300 500V LSZH Screened Flexible Control Cable Grey

Photo is representative

LiYCY 4 Core 0.75mm2 300 500V LSZH Screened Flexible Control Cable Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 475LIYCY
GTIN —
Stock status: In stock

priced per metre

Net price: £1.24

Gross price

£1.49

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4 core 0.75mm² LiYCY screened flexible control cable with LSZH insulation and sheath. Rated 300/500V to BS EN 50525-3-11 / VDE 0250.

For use in measuring, checking and control equipment where interference protection on data and signal transmissions is required. LSZH construction reduces toxic gas and smoke in fire conditions — suited to fire-critical installations. Tinned copper braid screen for EMC protection.

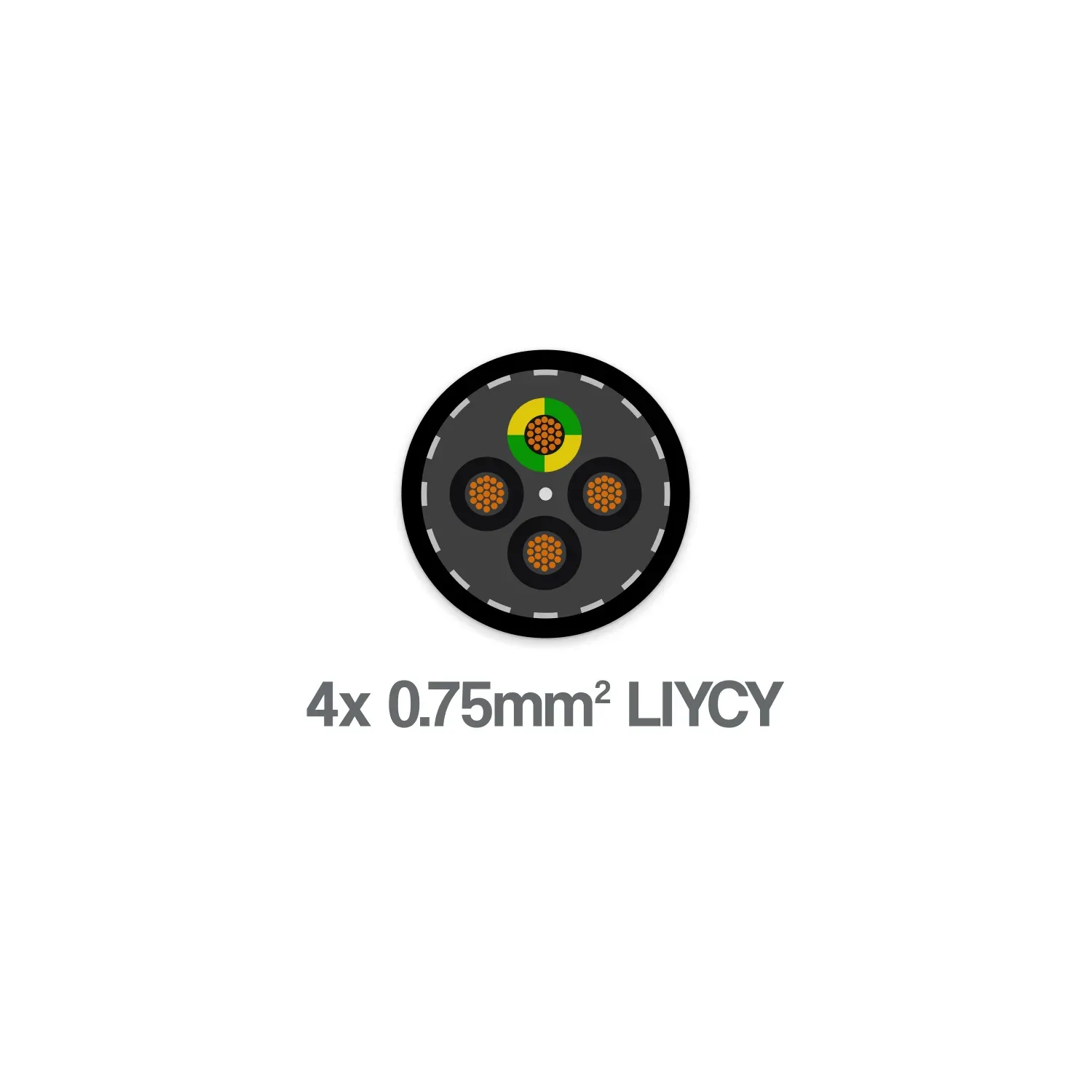

  • 4 cores: 3 black numbered + green/yellow earth
  • Tinned Cu wire braid screen
  • LSZH insulation and grey LSZH sheath
  • 6.50mm OD — 20/16mm gland size
  • 16A current carrying capacity in air at 30°C
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Number of Cores

4

Conductor Size

0.75mm²

Stranding

24/0.20mm

Core Identification

3 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Outside Diameter

6.50mm

Gland Size

20/16mm

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Weight

68 kg/km
