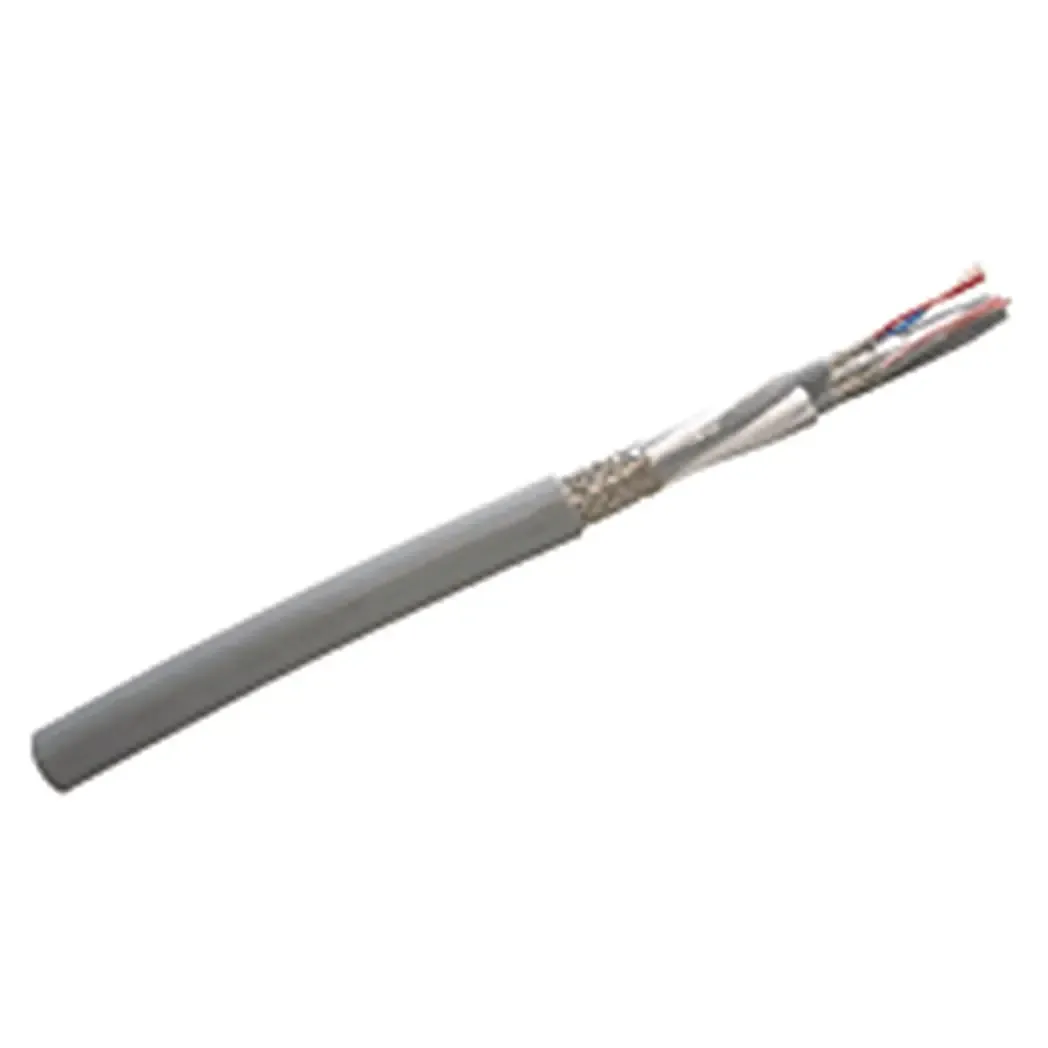

LIYCY 3 Core 0.75mm2 Screened LSZH Flexible Control Cable Grey 300 500V

Photo is representative

LIYCY 3 Core 0.75mm2 Screened LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 375LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.98

Gross price

£1.18

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

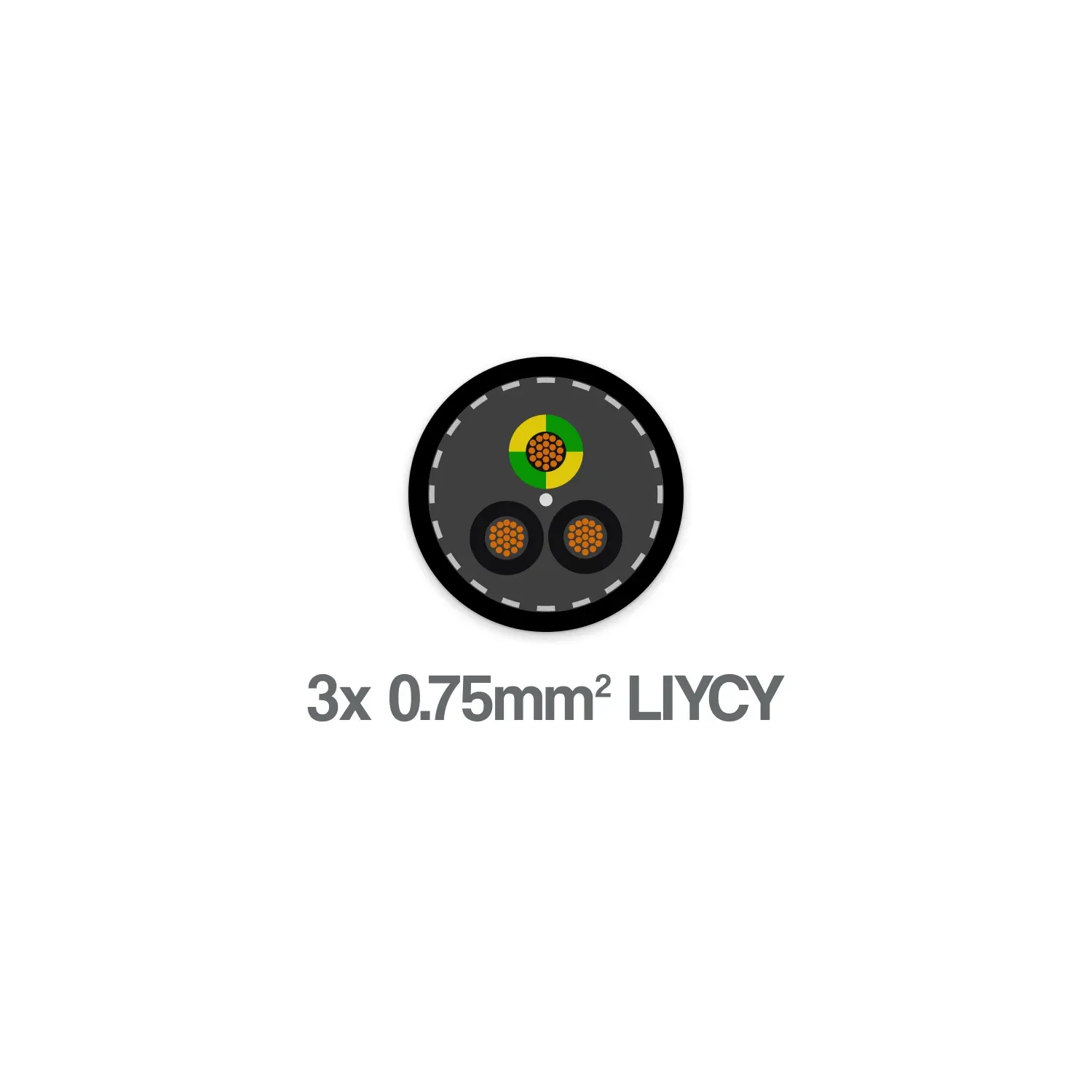

3 core 0.75mm² LIY-CY with LSZH insulation and sheath throughout. Tinned Cu braid screen for interference protection on signal and data circuits. Grey sheath, black numbered cores plus G/Y earth.

LSZH construction makes this suitable where fire safety matters — reduced toxic gas and smoke output compared to standard PVC types. Rated for both fixed and flexible installations.

  • 300/500V, 16A current carrying capacity (in air at 30°C)
  • Tinned Cu braid screen, LSZH insulation and sheath
  • Operating range -5°C to +70°C flexing, -20°C to +70°C static
  • OD 5.80mm, suits 20/16mm glands
  • BS EN 50525-3-11 / VDE 0250
Specifications

Voltage Rating

300/500V

Cores

3

CSA

0.75mm²

Stranding

24/0.20mm

Core ID

2 black numbered cores + earth (green/yellow)

Conductor Material

Plain annealed flexible copper

Insulation

LSZH

Screen

Tinned copper wire braid

Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

5.80mm

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Temp Rating (Flexing)

-5°C to +70°C

Temp Rating (Static)

-20°C to +70°C

Weight

52 kg/km

Gland Size

20/16mm

Standard

BS EN 50525-3-11 / VDE 0250
