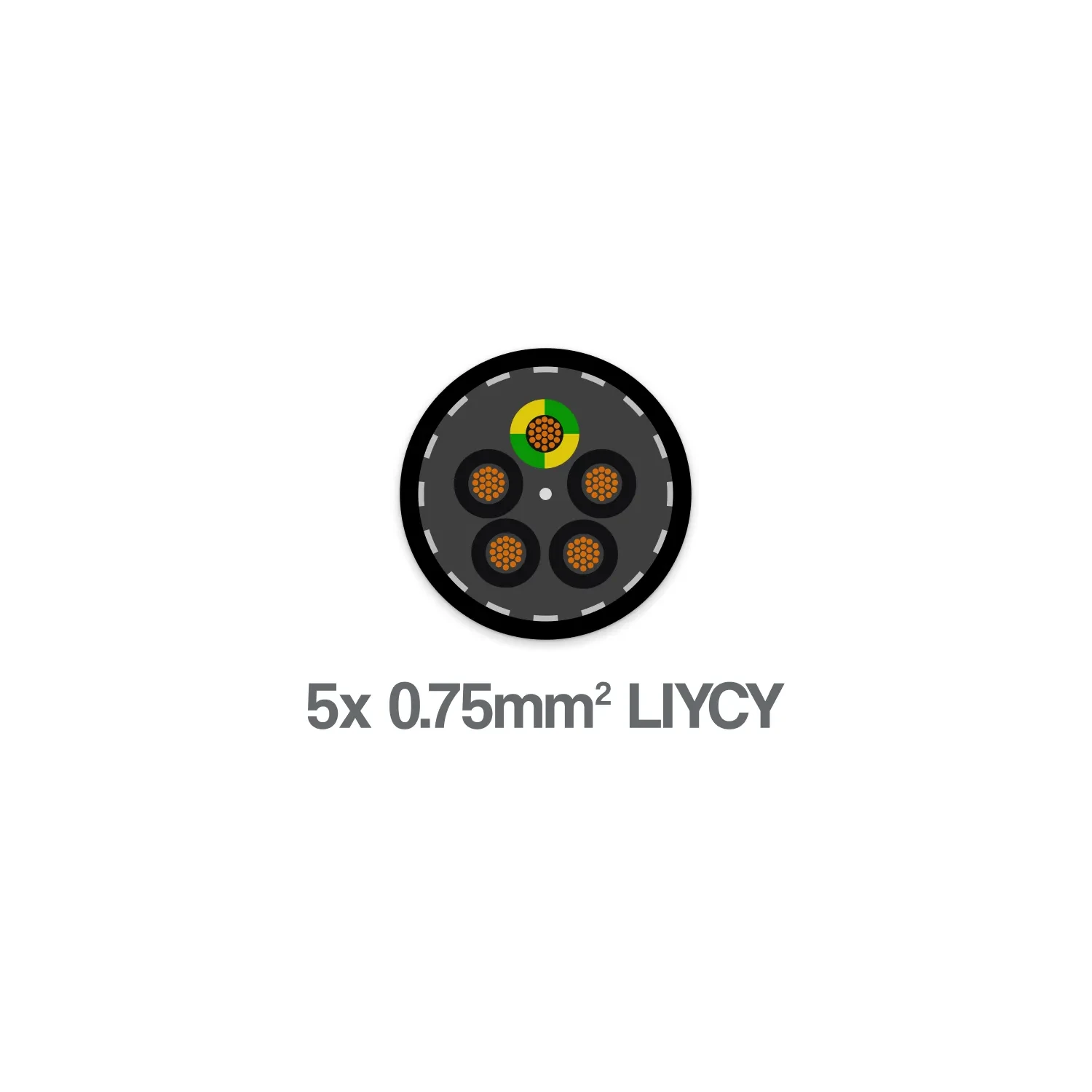

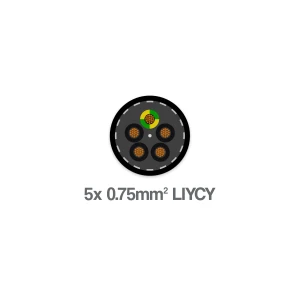

5 Core 0.75mm2 LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

Photo is representative

5 Core 0.75mm2 LIYCY LSZH Screened Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 575LIYCY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.50

Gross price

£1.80

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5-core 0.75mm² LIYCY flexible screened control cable with LSZH insulation and sheath throughout. For measuring, checking and control equipment where interference protection is required on data and signal transmissions.

LSZH construction reduces toxic gas and smoke emissions in the event of fire — suited to installations where fire safety is critical. Tinned Cu wire braid screen for EMC. Includes green/yellow earth core.

  • 4 black numbered cores + green/yellow earth
  • Tinned Cu braid screen, LSZH insulation and sheath
  • 300/500V, 16A current carrying capacity (in air at 30°C)
  • OD 6.50mm, gland size 20/16mm
  • Flexing range -5°C to +70°C
Specifications

Standard

BS EN 50525-3-11 / VDE 0250

Voltage Rating

300/500V

Cores

5

CSA

0.75mm²

Core ID

4 black numbered cores + earth (green/yellow)

Stranding

24/0.20mm

Conductor Material

Plain annealed flexible copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned copper wire braid

Sheath

Low Smoke Zero Halogen (LSZH)

Sheath Colour

Grey

Temperature Rating (Flexing)

-5°C to +70°C

Temperature Rating (Static)

-20°C to +70°C

Outside Diameter

6.50mm

Gland Size

20/16mm

Current Carrying Capacity

16A (in air at 30°C)

Conductor Resistance at 20°C

26 Ohm/km

Weight

68 kg/km
