93321 - Luxomat 130 Motion Detector RC-Plus Next N130 White 93321

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

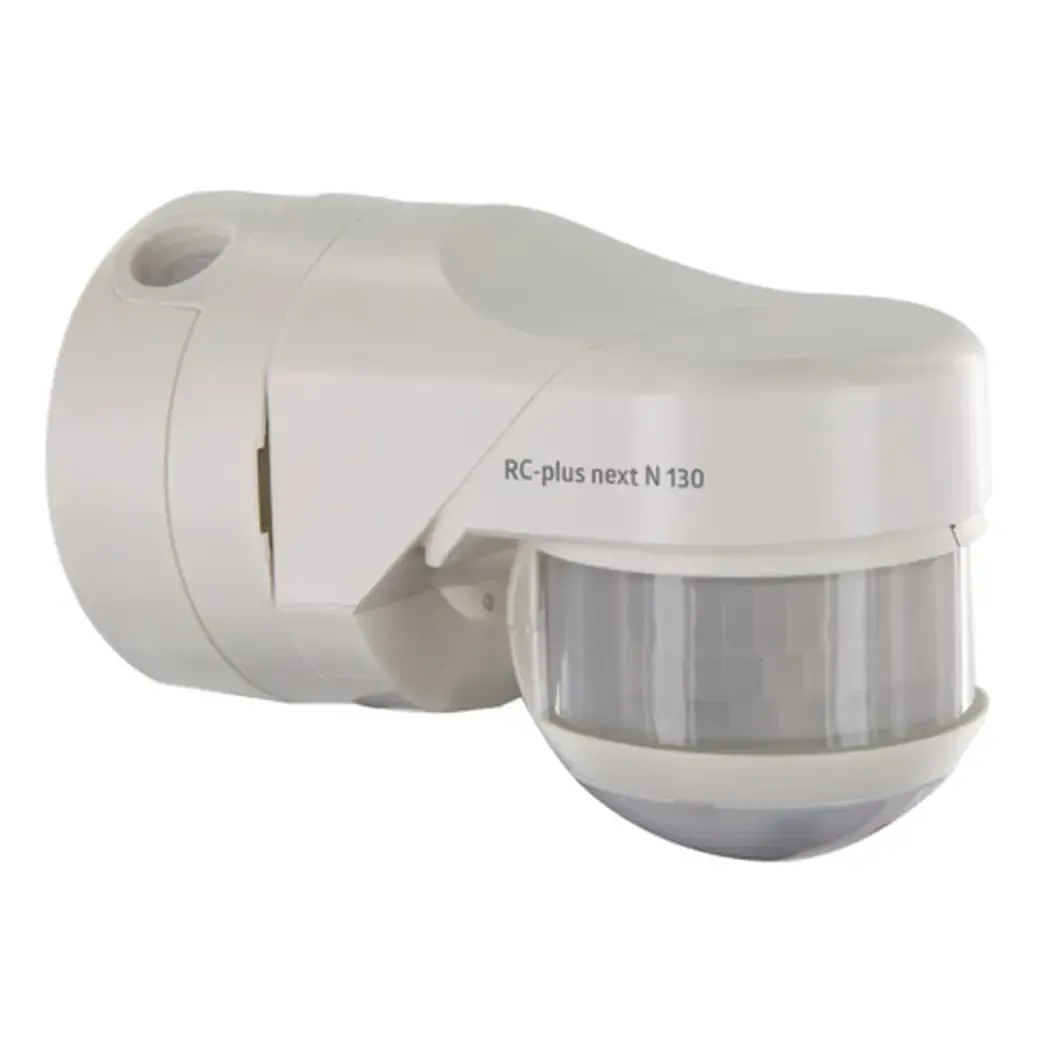

Luxomat 130 Motion Detector RC-Plus Next N130 White 93321

The Luxomat 130 Motion Detector is an advanced solution for detecting movement with a 130-degree range and anti-creep zone. It offers mechanical range adjustment, varied follow-up times, and uninterrupted detection. This detector allows manual switching and features an adjustable ball head. The plug base ensures easy mounting on walls, ceilings, or corners. It has a voltage range of 110-240 V AC, consumes approximately 0.5 W, and has a detection range of up to 20 m. The IP54-rated housing is made of UV-resistant polycarbonate, making it suitable for various applications.

Stock Code 93321
Out of stock

Product Features

  • SKU

    93321

  • Range

    Up to 20 m across, 6 m towards, 4 m for anti-creep protection

  • Voltage

    110-240 V AC 50/60 Hz

  • Dimensions

    121 x 71 x 85 mm

  • Detection Area

    130-degree horizontal

  • Follow-Up Time

    15 sec to 16 min

  • Monitored Area

    225 m² / 2.5 m mounting height

  • Mounting Height

    Min. 2 m / Max. 5 m / Recommended 2.5 m

  • Switching Power

    3000 W (cos = 1) / 1500 VA (cos = 0.5) / 300 W LED

  • Power Consumption

    Approx. 0.5 W

  • Ambient Temperature

    -25°C to +50°C

  • Pulse Switch-On Threshold

    2-2000 Lux

  • Degree/Class of Protection

    IP54 / Class II
