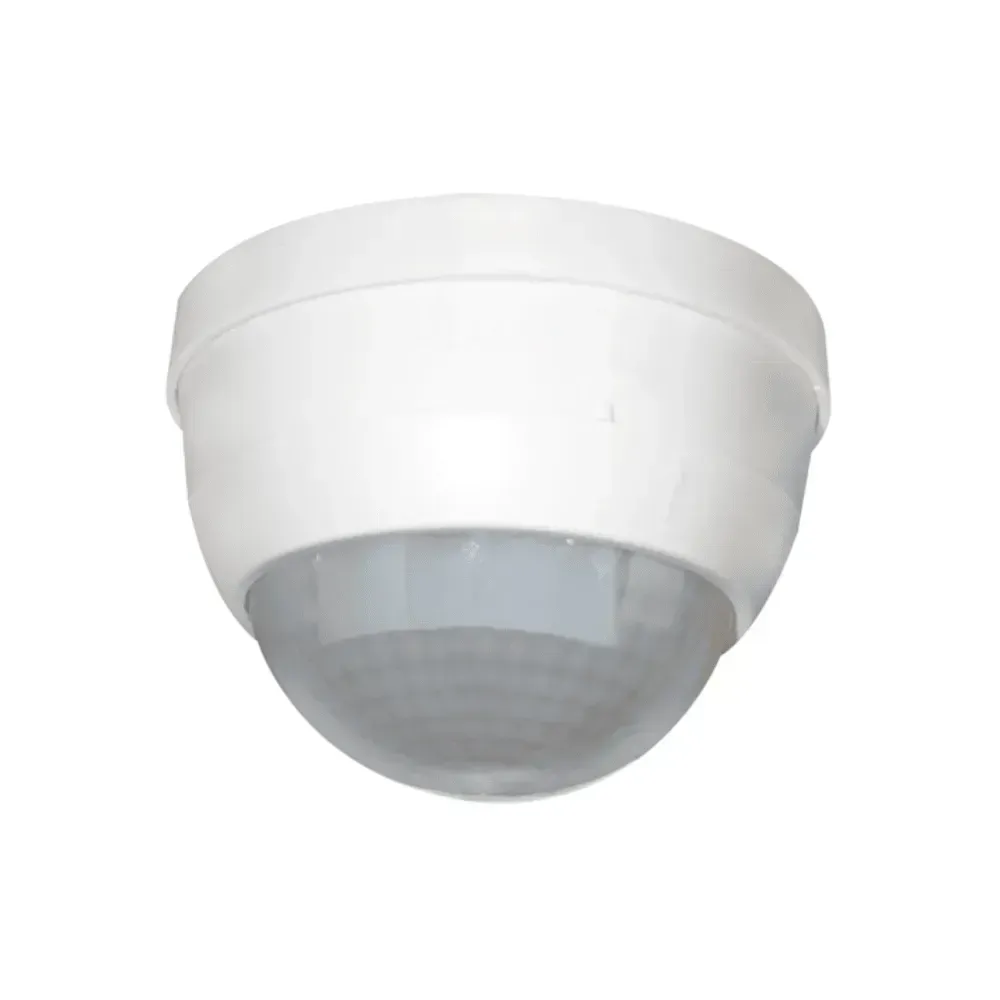

Luxomat 360-degree 40m 1-channel motion detector
Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

LUXOMAT 360° 40m 1-Channel Motion Detector IP54 - PD4-M-1C-C-SM

The LUXOMAT PD4-M-1C-C-SM Motion Detector provides a robust 40-meter range with 360° detection, ideal for corridor applications.

Key features include:

  • 110-240V AC with low power consumption
  • 1-channel lighting control, IP54-rated for indoor/outdoor use
  • Configurable via optional remote, with mixed light measurement
  • Durable polycarbonate housing with impact strength IK04
Stock Code: 92587

Online:

2 available
Price 97.04 £
incl. VAT, 20% priced individually

Product Features

Range max. 40 m x 5 m across
Voltage 110 – 240 V AC 50 / 60 Hz
Mounting Surface-mounted
Dimensions Ø 101 x 76 mm
Detection area 360° horizontal (ceiling mount)
Follow-up time 15 sec – 30 min
Ideal use cases corridors, hallways
Impact strength IK04
Light measuring Mixed light measuring
Switching power 2300 W (lighting)
Housing material Polycarbonate, UV-resistant
Power consumption 0.5 W
Ambient temperature -25 °C to +50 °C
Switch-on threshold 10 – 2000 Lux
Degree of protection IP54 / Class II
