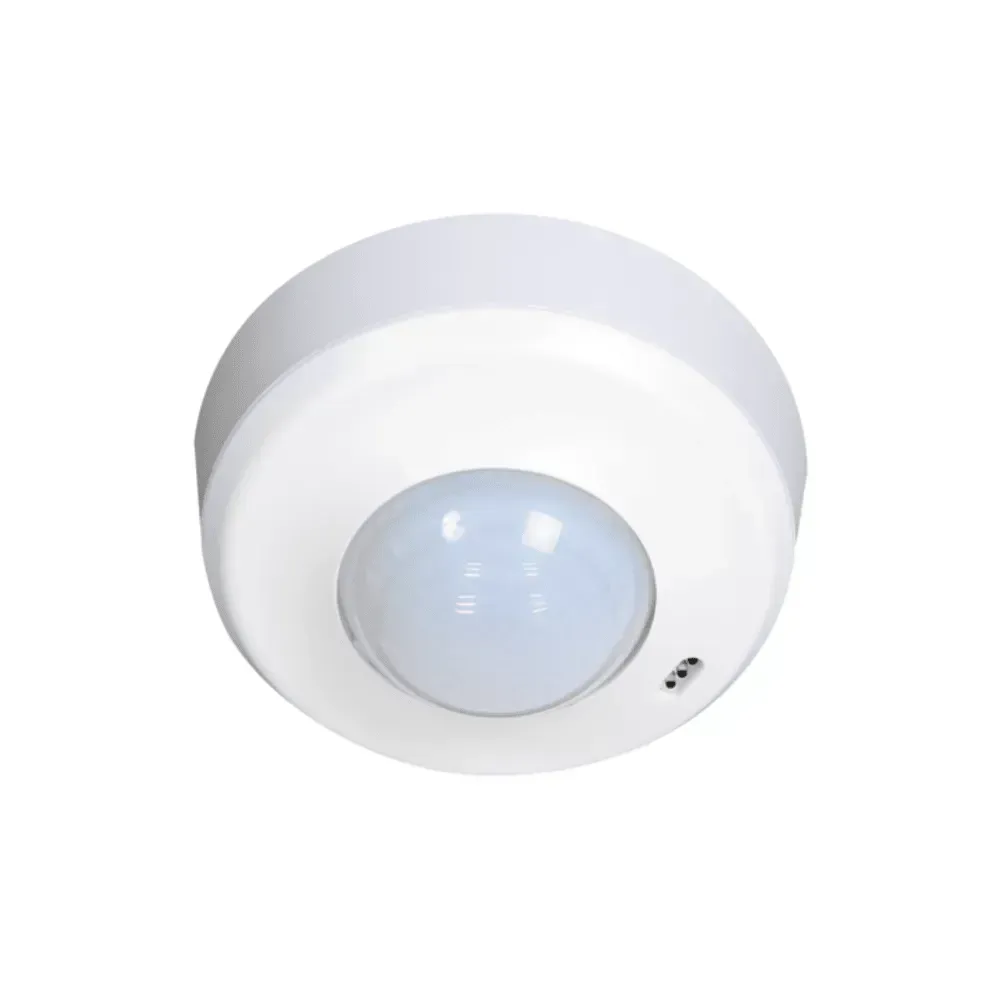

Luxomat 360-degree 1-channel surface-mounted motion detector

Photo is representative

LUXOMAT 360° 1-Channel Motion Detector IP20 - PD2-M-1C-SM

The LUXOMAT PD2-M-1C-SM Motion Detector provides 360° coverage with a single channel for lighting control. It’s surface-mounted and ideal for energy-efficient occupancy sensing in offices, conference rooms, schools, and hospitals.

Key features include:

  • 110-240V AC operation with low power consumption
  • 10-meter detection range with mixed light measurement
  • Manual switching and optional remote configuration
  • IP20-rated for indoor use with durable, UV-resistant housing

Product Information

Stock Code 92550
MPN —
GTIN —
Stock status: Out of stock
Price: £65.89
incl. VAT, 20% priced individually

Product Features
Range max. Ø 10 m across
Voltage 110 – 240 V AC 50 / 60 Hz
Mounting Surface-mounted
Dimensions Ø 98 x 47 mm
Detection area 360° horizontal (ceiling mount)
Follow-up time 15 sec – 30 min
Ideal use cases offices, conference rooms, schools, hospitals
Impact strength IK05
Light measuring Mixed light measuring
Switching power 2300 W (lighting)
Housing material Polycarbonate, UV-resistant
Power consumption 0.4 W
Ambient temperature -25 °C to +50 °C
Switch-on threshold 10 – 2000 Lux
Degree of protection IP20 / Class II
