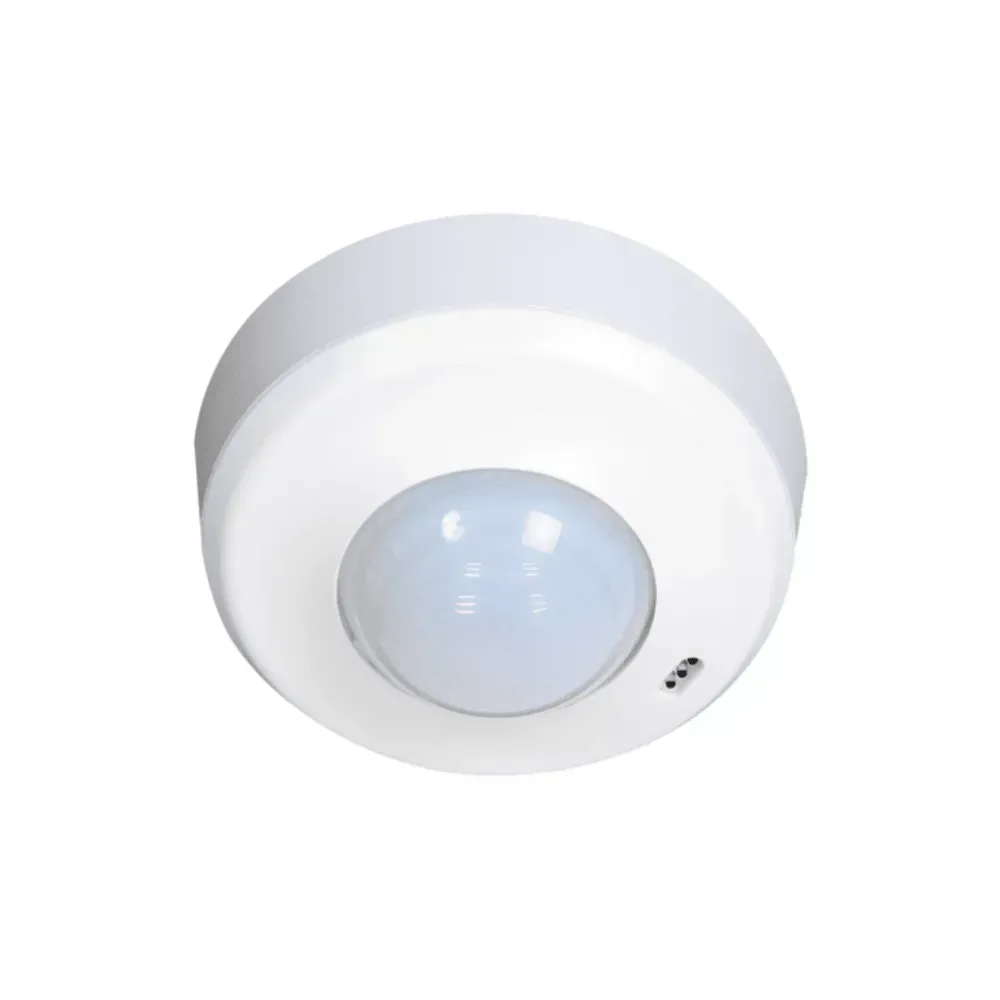

Luxomat 360-degree 2-channel surface-mounted motion detector

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

LUXOMAT PD2-M-2C-SM 360° 2-Channel Motion Detector IP20

The LUXOMAT PD2-M-2C-SM Motion Detector provides 360° detection with dual channels for efficient lighting and HVAC control. Ideal for hallways, stairwells, offices, and restrooms, it ensures energy-efficient occupancy sensing and automation.

Key features include:

  • 110-240V AC operation, low power consumption
  • Surface-mounted design with a 10-meter detection range
  • Mixed light measurement, zero-crossing switching for efficiency
  • Optional remote control setup for customized use
  • IP20-rated for indoor use, with Class II protection
Stock Code: 92150
In stock
Price 70.68 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Range

    max. Ø 10 m across

  • Voltage

    110 – 240 V AC 50 / 60 Hz

  • Mounting

    Surface-mounted

  • Dimensions

    Ø 98 x 47 mm

  • Monitored area

    78 m² / 2.5 m height

  • Impact strength

    IK05

  • Mounting height

    2 m / 5 m / 2.5 m (min/max/recommended)

  • Switching power

    2300 W (lighting), 3 A (HVAC)

  • Housing material

    Polycarbonate, UV-resistant

  • Power consumption

    0.5 W

  • Ambient temperature

    -25 °C to +50 °C

  • Switch-on threshold

    10 – 2000 Lux

  • Follow-up time (HVAC)

    5 min – 120 min

  • Follow-up time (lighting)

    15 sec – 30 min
