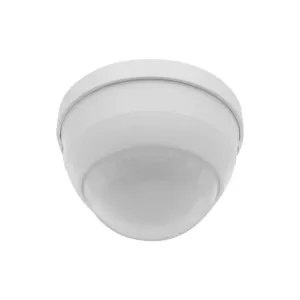

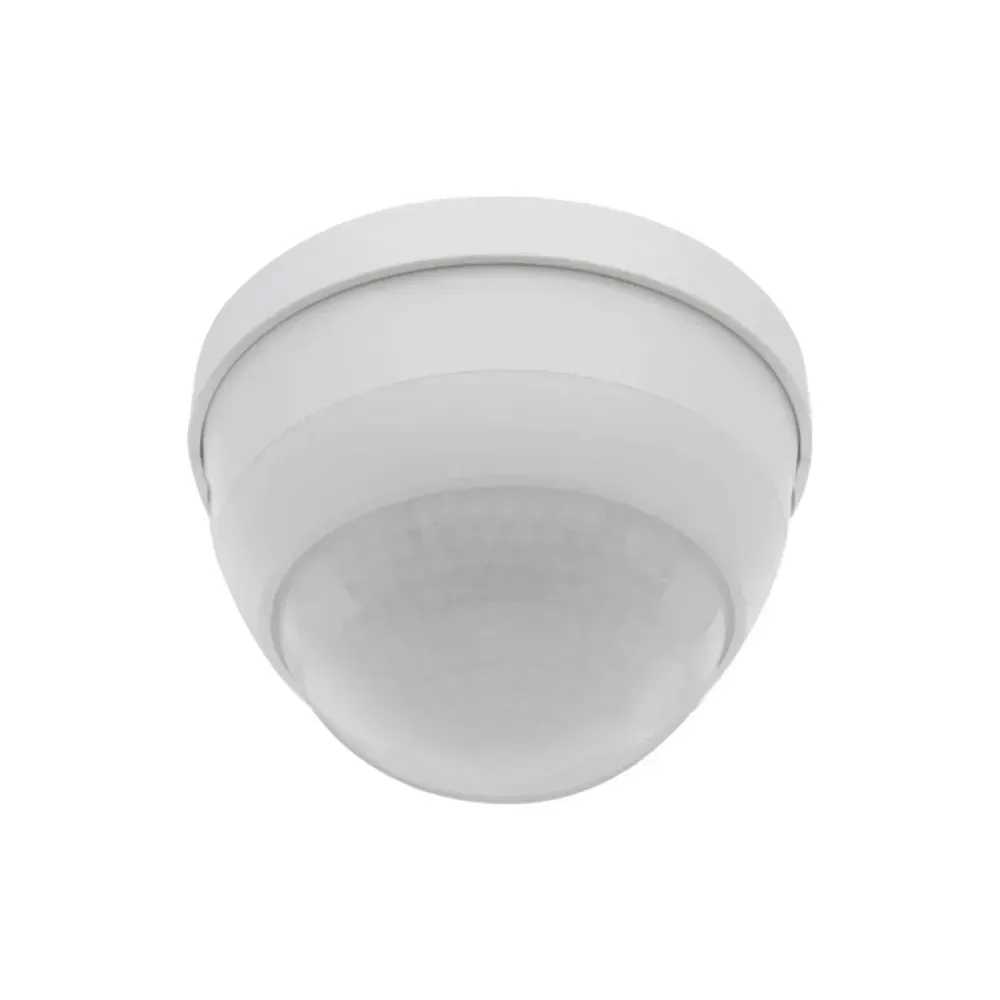

Luxomat 360° motion detector extender for master devices
Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

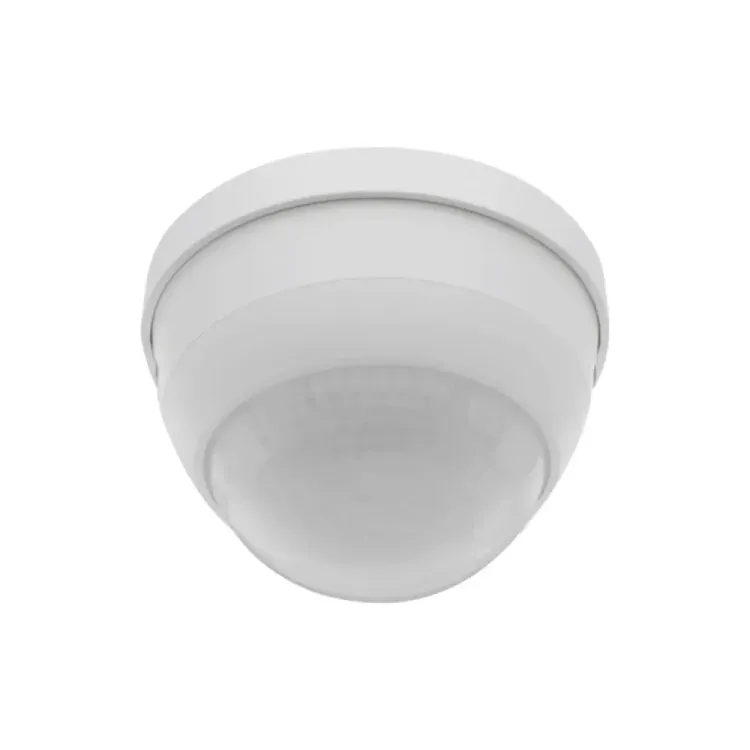

LUXOMAT 360° Motion Detector Extender IP54 - PD4-S-C-SM

The LUXOMAT PD4-S-C-SM Motion Detector Extender is a surface-mounted, 360° occupancy sensor designed to expand the detection range of a master device. Ideal for corridor and staircase applications, it operates with:

  • 110-240V AC and low power consumption
  • 40m detection range, IP54-rated for protected indoor/outdoor use
  • Simple alignment for seamless installation
  • Compatible with master detectors, triggering upon movement
Stock Code: 92442

Online:

4 available
Price 74.28 £
incl. VAT, 20% priced individually

Product Features

Range max. 40 m x 5 m across
Voltage 110 – 240 V AC 50 / 60 Hz
Mounting Surface-mounted
Dimensions Ø 101 x 76 mm
Detection area 360° horizontal (ceiling mount)
Pulse interval 2 or 9 sec
Ideal use cases corridors, hallways, staircases
Impact strength IK04
Housing material Polycarbonate, UV-resistant
Power consumption 0.2 W
Ambient temperature -25 °C to +50 °C
Degree of protection IP54 / Class II
