92196 - Luxomat Remote Control-Capable Ceiling Motion Detector 92196

Please note: The images provided are for informational purposes only. While we strive for accuracy, some images may contain inaccuracies or may not perfectly represent the subject matter.

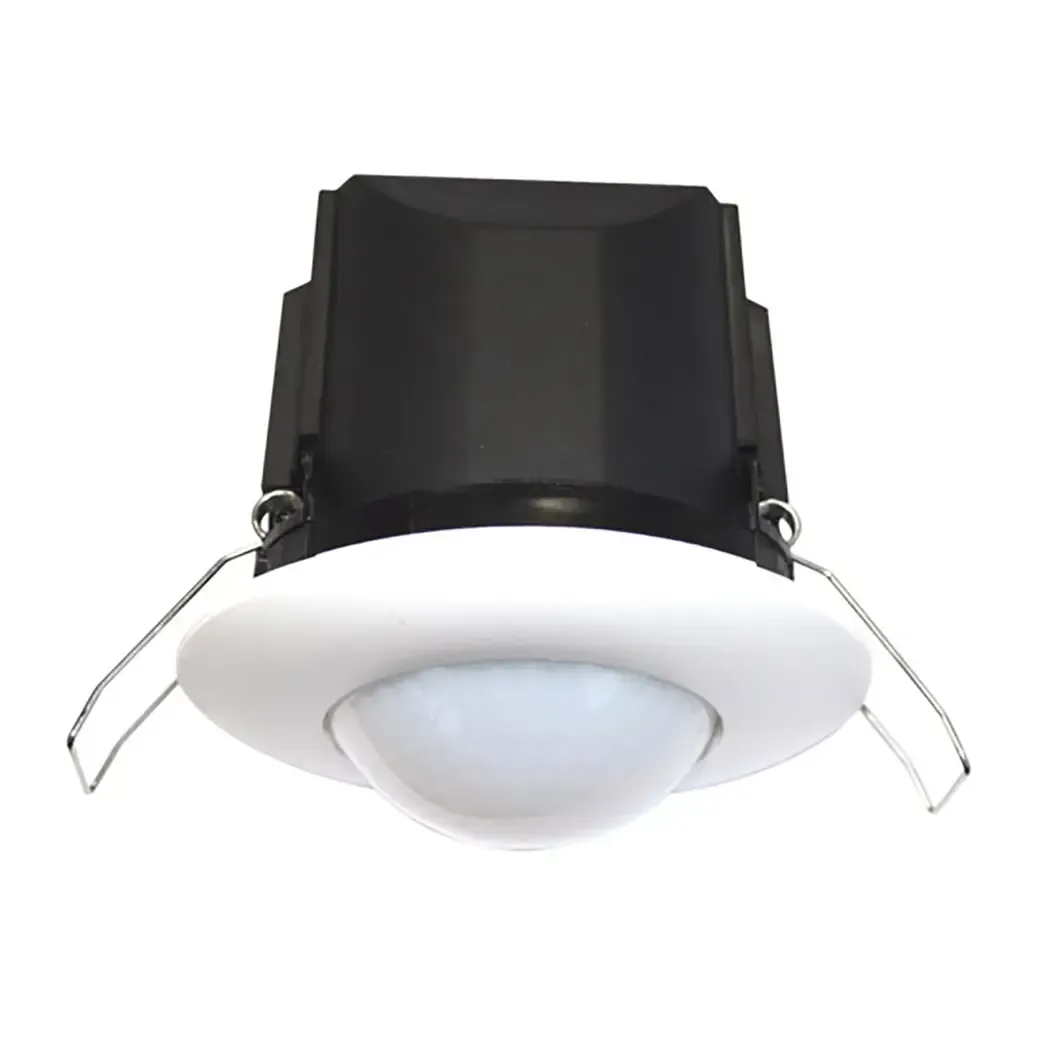

Luxomat Remote Control-Capable Ceiling Motion Detector 92196

The Luxomat Remote Control-Capable Ceiling Motion Detector 92196 is a versatile solution for indoor lighting control. With a detection range of up to 10 meters across and advanced features such as inrush current control, this motion detector offers efficient and reliable performance.

Stock Code 92196
In stock
Price 42.09 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • Range

    Max. 10 m across, max. 6 m towards, max. 4 m seated

  • Housing

    Polycarbonate UV-Resistant

  • Voltage

    110-240 V AC 50/60 Hz

  • Detection Area

    Vertical 360°

  • Follow-up Time

    15 sec - 30 min

  • Monitored Area

    79 m² / 2.5 m mounting height

  • Mounting Height

    Min. 2 m / Max. 5 m / Recommended 2.5 m

  • Switching Power

    2300 W cos = 1, 1150 VA cos = 0.5, 300 W LED

  • Power Consumption

    Approx. 0.5 W

  • Ambient Temperature

    -25°C to +50°C

  • Pulse Switch-On Threshold

    10-2000 Lux

  • Degree/Class of Protection

    SM= IP44 / Class II, FM= IP20 / Class II, FC=IP23 / Class II
