12 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V

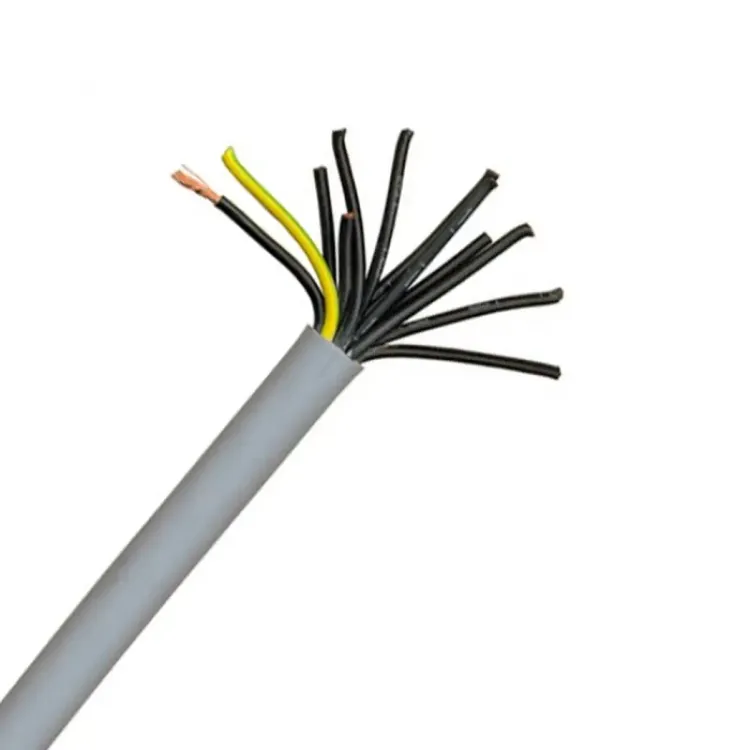

Photo is representative

12 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1275YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £3.19

Gross price

£3.83

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

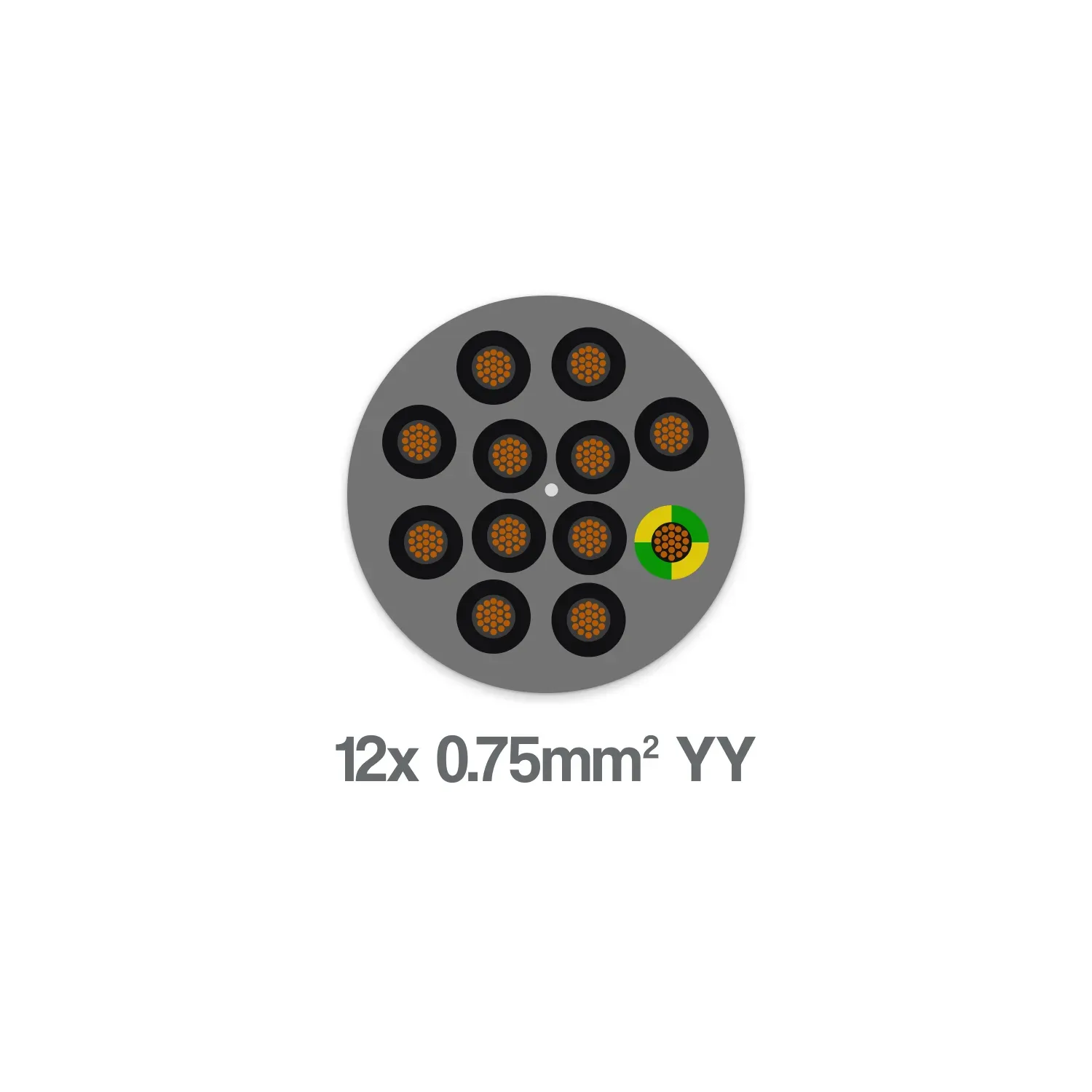

12-core YY control cable with LSZH insulation and sheath. 11 black numbered cores plus G/Y earth — ready to land without sleeving. Grey outer sheath, 9.5mm OD.

LSZH sheath keeps smoke and toxic gas down in the event of fire — suits enclosed plant rooms, production areas, and anywhere people density is a concern. Rated 300/500V to BS EN 50525-2-11.

  • 0.75mm² plain annealed stranded copper, 24⁄0.20mm
  • 13A current capacity in air at 30°C, 9A in conduit
  • Flex temp range -5°C to +70°C, static -20°C to +70°C
  • Recommended gland: 20S
Specifications

Core Count

12

CSA

0.75mm²

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core ID

11 black numbered cores + Green/Yellow earth

Voltage Rating

300/500V

Outside Diameter

9.50mm

Current Capacity in Air at 30°C

13A

Current Capacity in Conduit at 30°C

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temp Range (Flexing)

-5°C to +70°C

Temp Range (Static)

-20°C to +70°C

Weight

155 kg/km

Recommended Gland Size

20S mm

Cable Standard

BS EN 50525-2-11
