5 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V

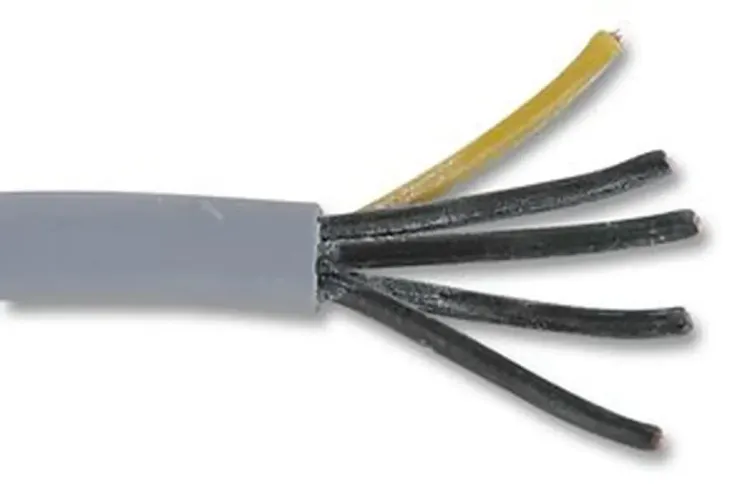

Photo is representative

5 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 575YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.15

Gross price

£1.38

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5x0.75mm YY control cable with LSZH insulation and sheath. Suitable for measuring, control and signal circuits on conveyors, assembly lines and production equipment.

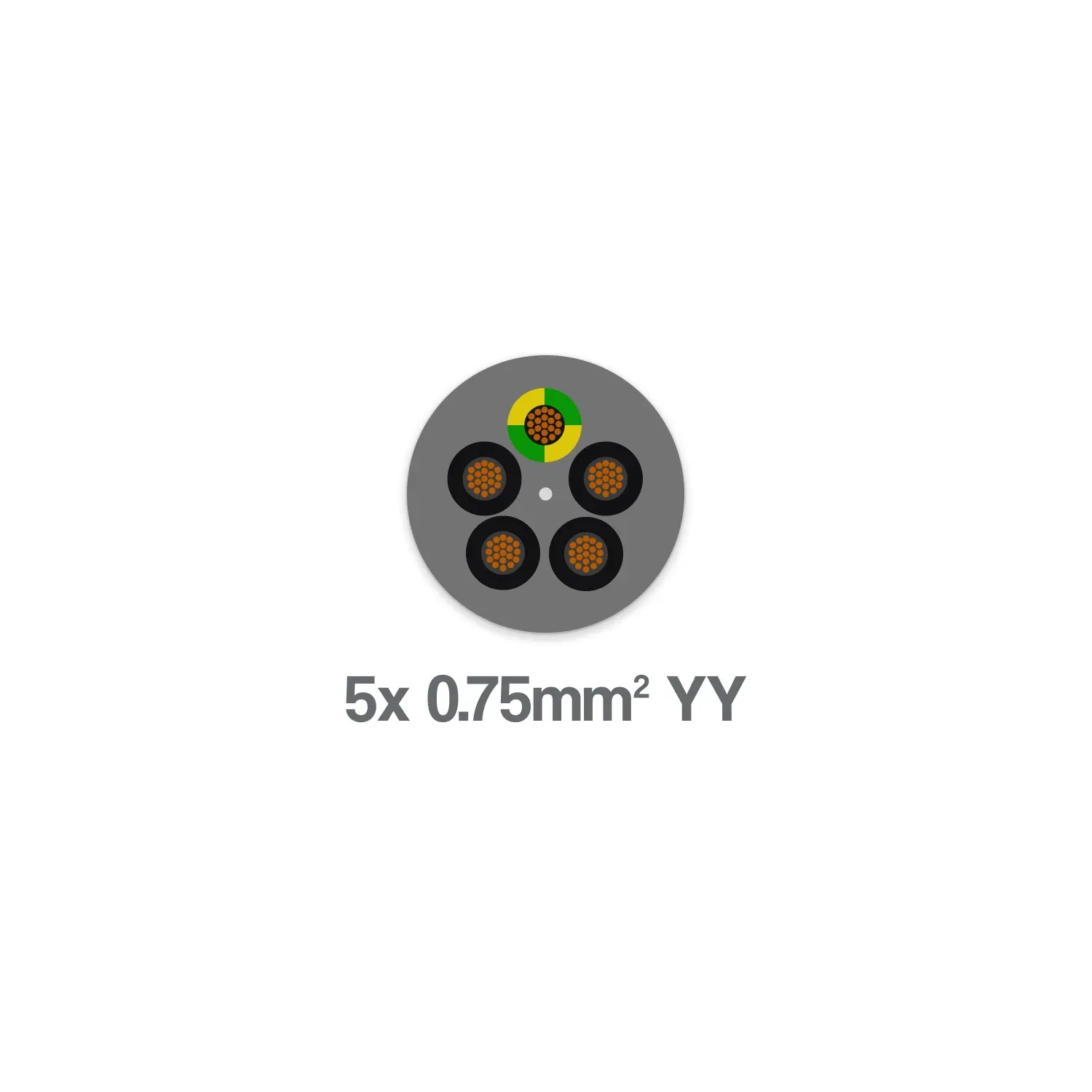

LSZH outer sheath limits smoke and toxic fumes in a fire — suited to areas with high concentrations of people. Core ID is 4 black numbered cores plus a G/Y earth.

  • 300/500V rated
  • 7.00mm OD, 24⁄0.20mm stranding, plain annealed stranded Cu conductors
  • 13A in air / 9A in conduit at 30°C
  • Flexing range: -5°C to +70°C | Static: -20°C to +70°C
Specifications

Conductor CSA

0.75mm²

Core Count

5

Core Identification

4 black numbered cores + Green/Yellow earth

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Voltage Rating

300/500V

Outside Diameter

7.00mm

Weight

77 kg/km

Current Capacity in Air at 30°C

13A

Current Capacity in Conduit at 30°C

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Recommended Gland Size

20/16mm

Cable Standard

BS EN 50525-2-11
