3 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Earth

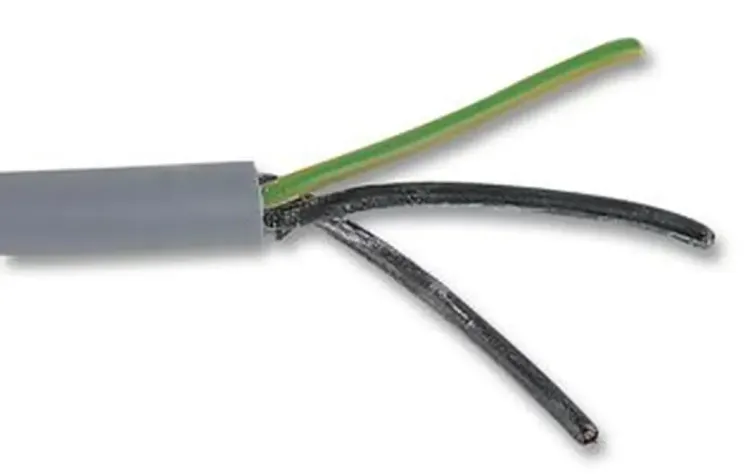

Photo is representative

3 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 375YY
GTIN —
Stock status: In stock

priced per meter

Net price: £0.70

Gross price

£0.84

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

3C 0.75mm² YY control cable with LSZH insulation and outer sheath. Suitable for measuring, control and signal circuits on conveyors, assembly lines and production equipment.

LSZH sheath limits smoke and toxic fumes in a fire — suits occupied areas where standard PVC isn’t appropriate.

  • 300/500V rated
  • 13A in air / 9A in conduit at 30°C
  • OD 5.70mm — 20/16mm gland
  • Flexible class: -5°C to +70°C flexing, -20°C to +70°C static
Specifications

Voltage Rating

300/500V

Number of Cores

3

Conductor CSA

0.75mm²

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core ID

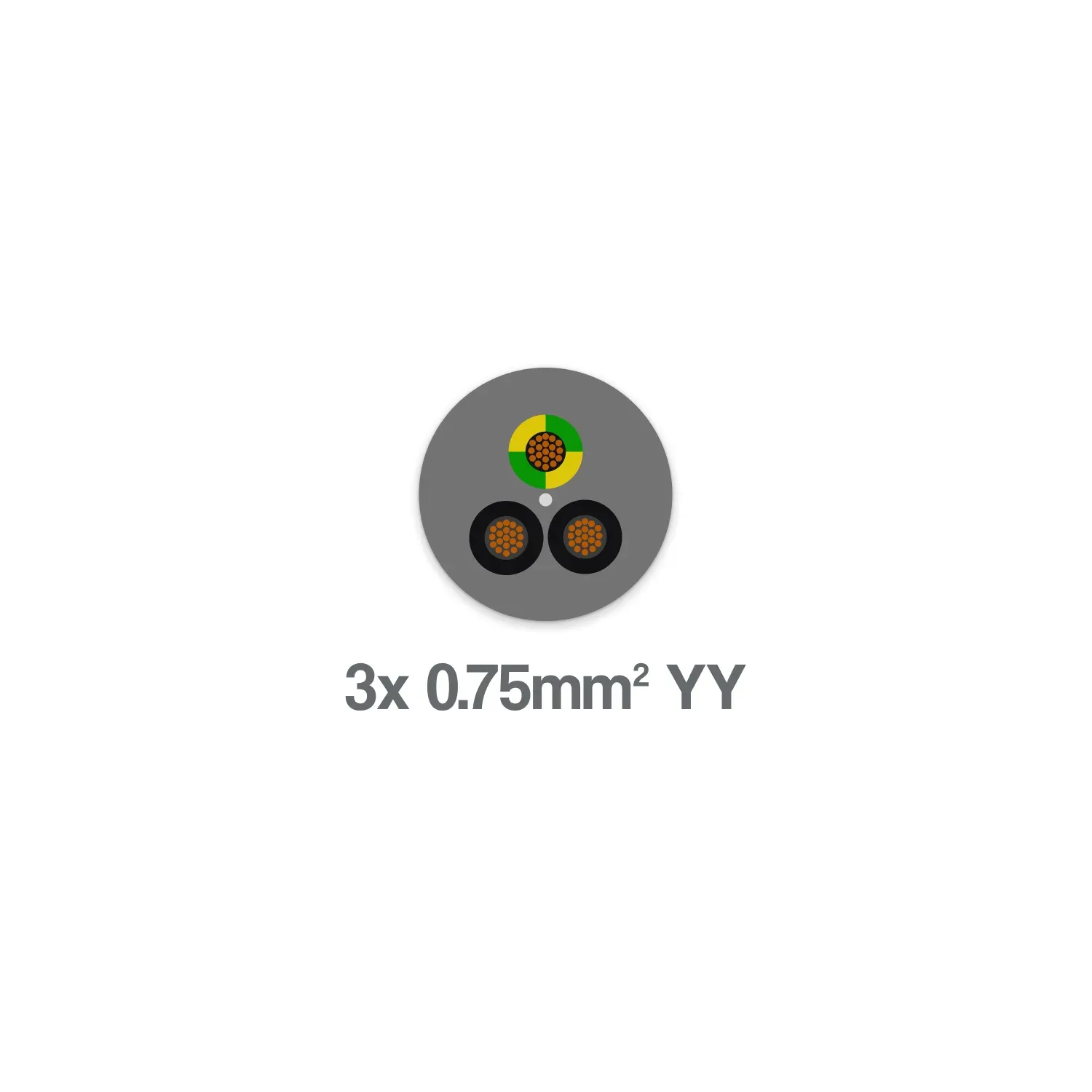

2 black numbered cores + Green/Yellow earth

Outside Diameter

5.70mm

Recommended Gland Size

20/16mm

Current Capacity in Air at 30°C

13A

Current Capacity in Conduit at 30°C

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

52 kg/km

Cable Standard

BS EN 50525-2-11
