4 Core 0.75mm2 YY LSZH Flexible Control Cable Grey 300 500V

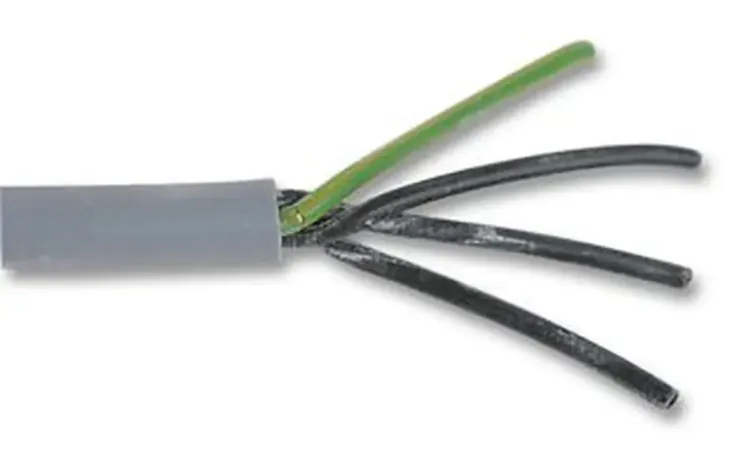

Photo is representative

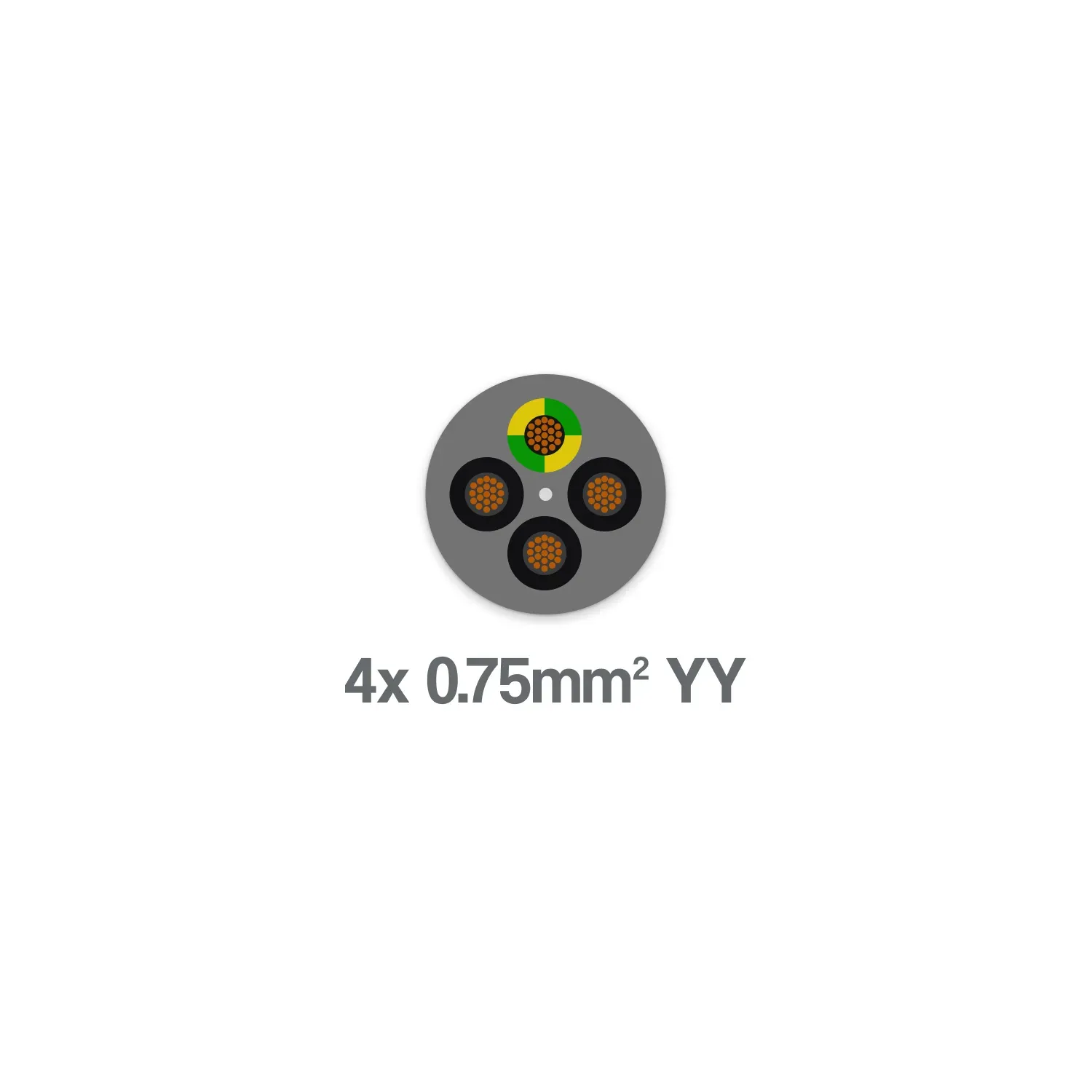

4 Core 0.75mm2 YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 475YY
GTIN —
Stock status: In stock

priced per meter

Net price: £0.97

Gross price

£1.16

4 core 0.75mm² YY flexible control cable with LSZH insulation and sheath. Rated 300/500V. Suited to control and signal circuits on conveyors, assembly lines, and production equipment.

LSZH sheath limits smoke and toxic fume emission in the event of fire — suitable where people density is a factor.

  • 3 black numbered cores + G/Y earth
  • 13A in air / 9A in conduit at 30°C
  • Static temp range: -20°C to +70°C
  • Recommended gland: 20/16mm
  • BS EN 50525-2-11
Specifications

Voltage Rating

300/500V

Conductor CSA

0.75mm²

Number of Cores

4

Core Identification

3 black numbered cores + Green/Yellow earth

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

6.20mm

Current Capacity in Air at 30°C

13A

Current Capacity in Conduit at 30°C

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

64 kg/km

Recommended Gland Size

20/16mm

Cable Standard

BS EN 50525-2-11
