2 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered

Photo is representative

2 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 275YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £0.54

Gross price

£0.64

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

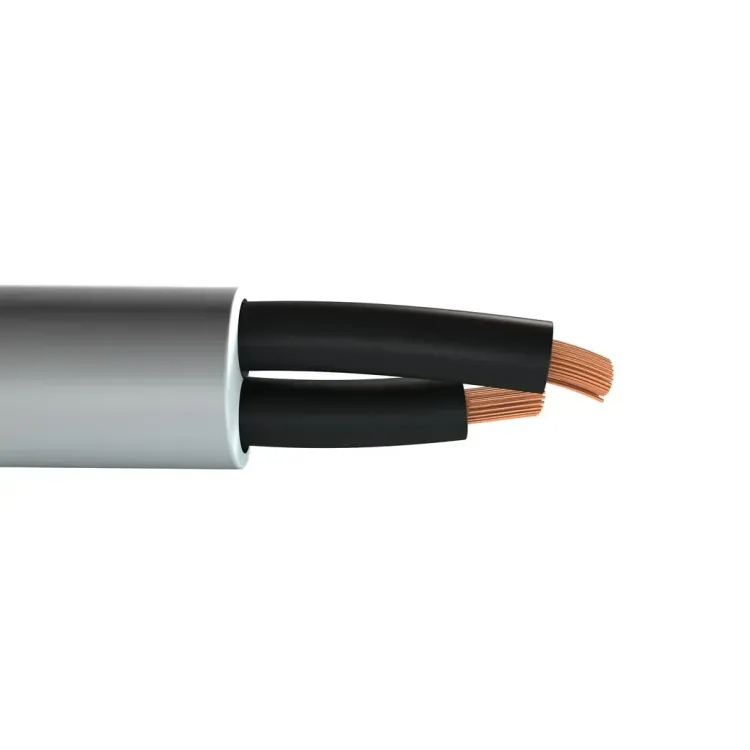

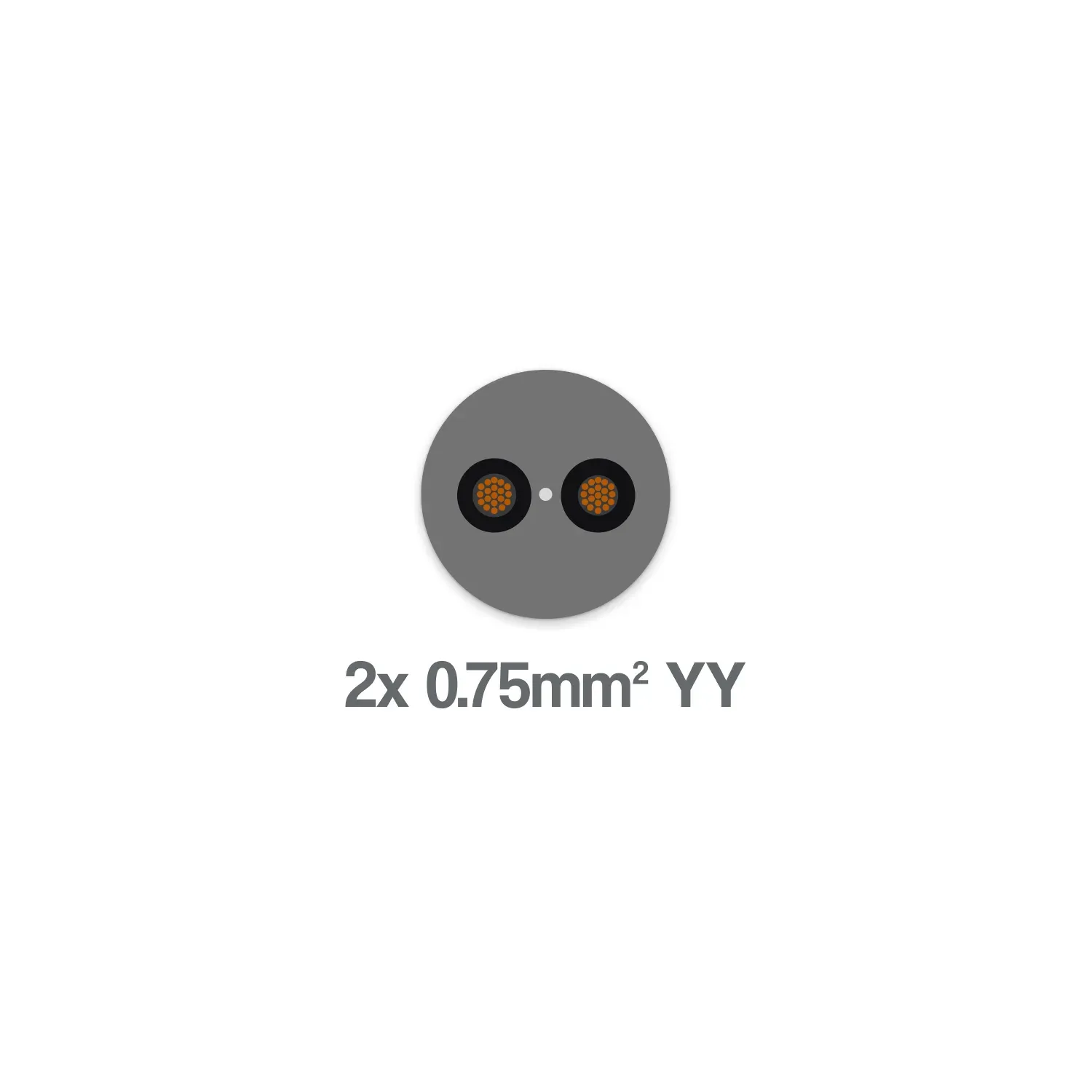

2 core 0.75mm² YY control cable with LSZH insulation and outer sheath. Grey sheath, black numbered cores. Rated 300/500V to BS EN 50525-2-11.

LSZH sheath limits smoke and toxic fume output in fire conditions — suited to areas with high concentrations of people. Plain annealed stranded copper conductors, 24⁄0.20mm stranding.

  • 13A current capacity in air at 30°C, 9A in conduit
  • Operating range: -5°C to +70°C flexing, -20°C to +70°C static
  • OD: 5.60mm — recommended gland size 20/16mm
Specifications

Voltage Rating

300/500V

Cores

2

Conductor CSA

0.75mm²

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core Identification

Black numbered cores

Outside Diameter

5.60mm

Weight

46 kg/km

Current Capacity (Air 30°C)

13A

Current Capacity (Conduit 30°C)

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Recommended Gland Size

20/16mm

Cable Standard

BS EN 50525-2-11
