YY 25 Core 0.75mm2 LSZH Flexible Control Cable 300 500V Grey 2575YY

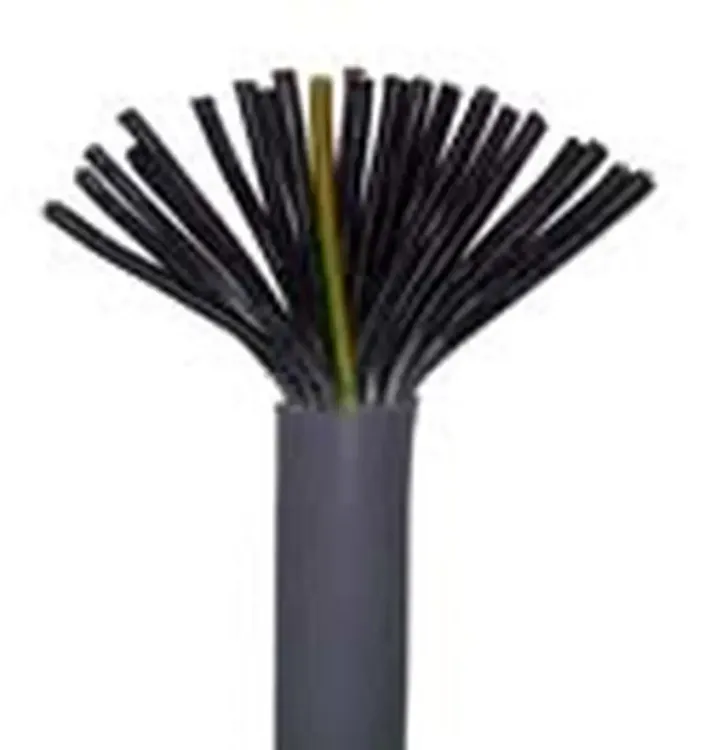

Photo is representative

YY 25 Core 0.75mm2 LSZH Flexible Control Cable 300 500V Grey 2575YY

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2575YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £5.65

Gross price

£6.78

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

25-core YY flexible control cable with LSZH insulation and sheath. Rated 300/500V to BS EN 50525-2-11. Suited to conveyors, assembly lines, and production equipment where smoke and fume emission in a fire event must be minimised.

Cores are 24 black numbered plus a G/Y earth — saves time on termination. Recommended gland size is 20mm.

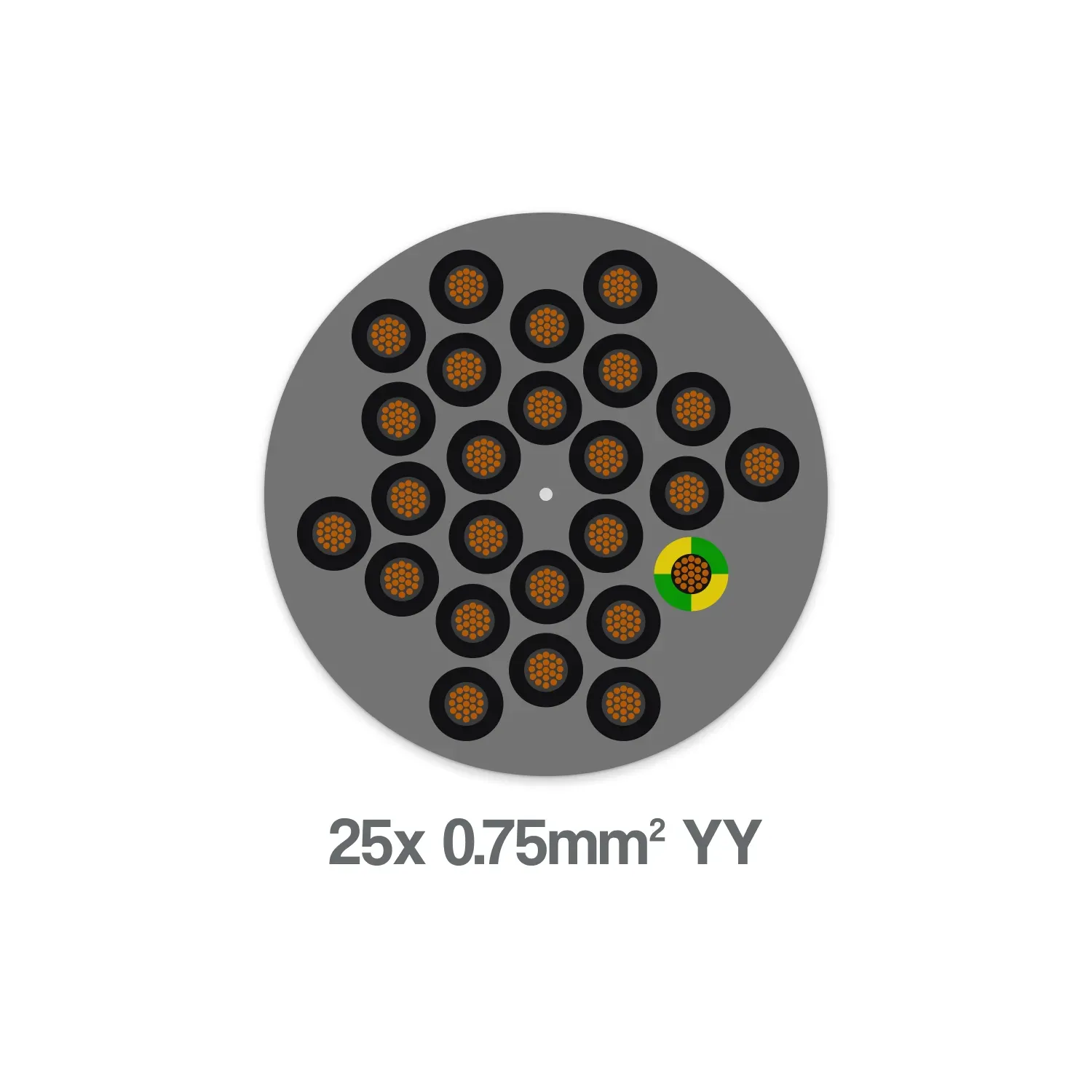

  • 25 cores: 24 numbered black + G/Y earth
  • 0.75mm² plain annealed stranded Cu (24⁄0.20mm)
  • LSZH insulation and grey LSZH sheath
  • OD 13.20mm, 305 kg/km
Specifications

Voltage Rating

300/500V

Core Count

25

CSA

0.75mm²

Stranding

24/0.20mm

Conductor Type

Plain Annealed Stranded Copper

Core Identification

24 black numbered cores + Green/Yellow earth

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

13.20mm

Weight

305 kg/km

Current Capacity in Air at 30°C

13A

Current Capacity in Conduit at 30°C

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Recommended Gland Size

20mm

Cable Standard

BS EN 50525-2-11
