18 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Cores Earth

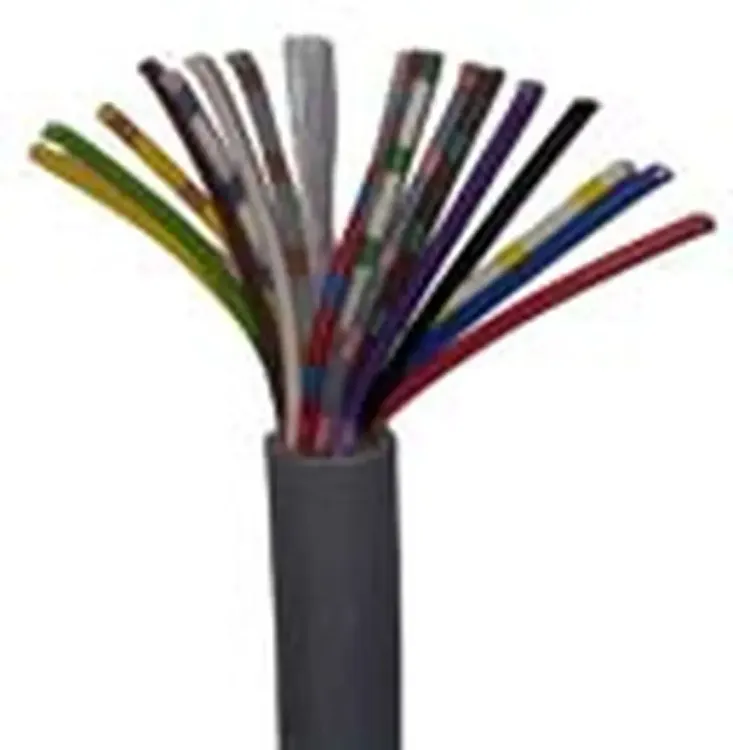

Photo is representative

18 Core 0.75mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Cores Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1875YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £6.00

Gross price

£7.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

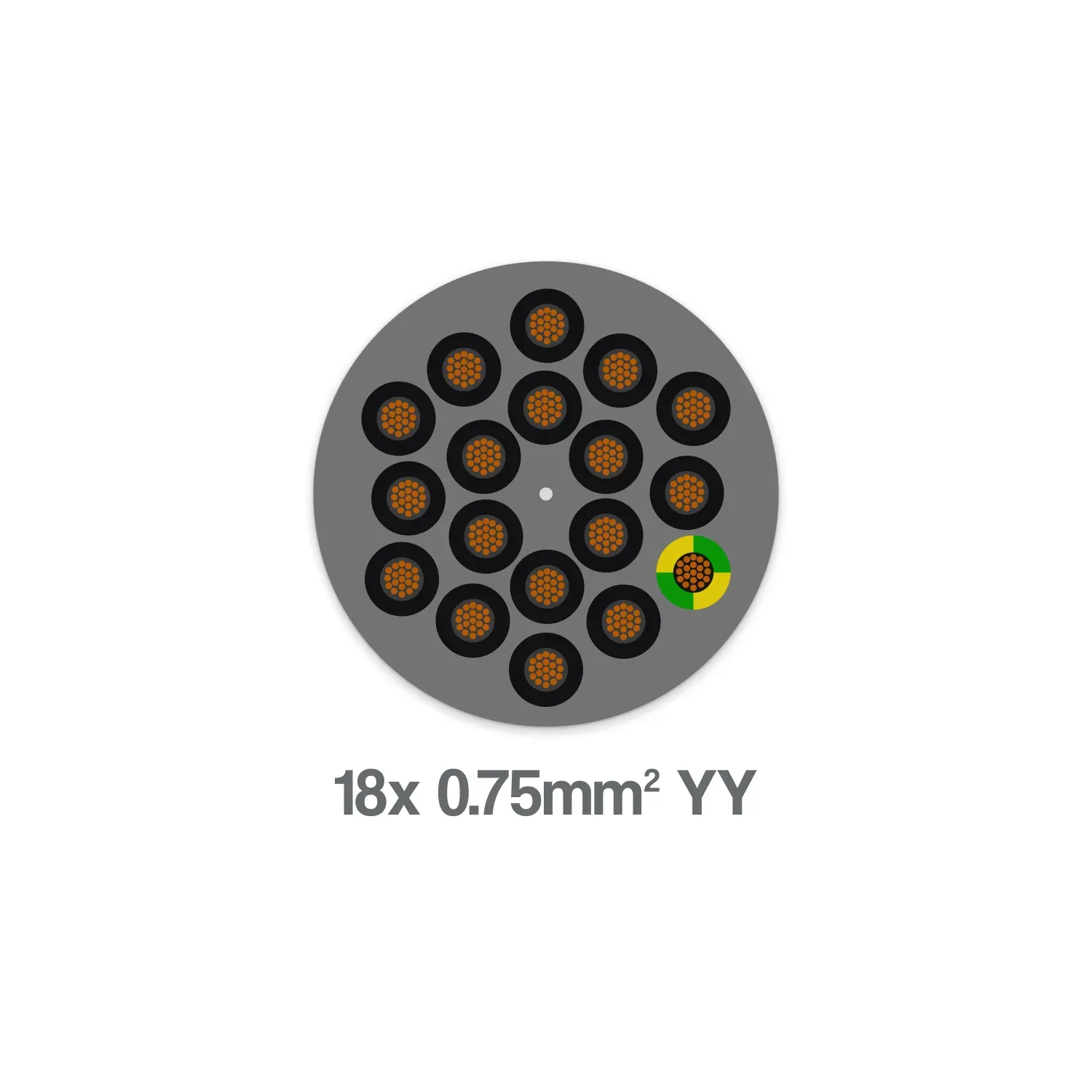

18-core 0.75mm² YY control cable with LSZH insulation and outer sheath. Grey sheath, 17 black numbered cores plus G/Y earth — no need to sleeve or label at termination.

LSZH sheath limits smoke and toxic fume emission in fire conditions. Suited to conveyors, assembly lines, and production equipment where personnel density makes halogen-free spec a requirement.

  • 13A current capacity in air at 30°C / 9A in conduit
  • Conductor resistance: 26 Ω/km at 20°C
  • Flex temp range: -5°C to +70°C | Static: -20°C to +70°C
  • Plain annealed stranded copper, 24⁄0.20mm stranding
Specifications

Cores

18

CSA

0.75mm²

Core ID

17 black numbered cores + Green/Yellow earth

Voltage Rating

300/500V

Conductor Type

Plain annealed stranded copper

Stranding

24/0.20mm

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Current Capacity (Air, 30°C)

13A

Current Capacity (Conduit, 30°C)

9A

Max Conductor Resistance at 20°C

26 Ω/km

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Cable Standard

BS EN 50525-2-11
