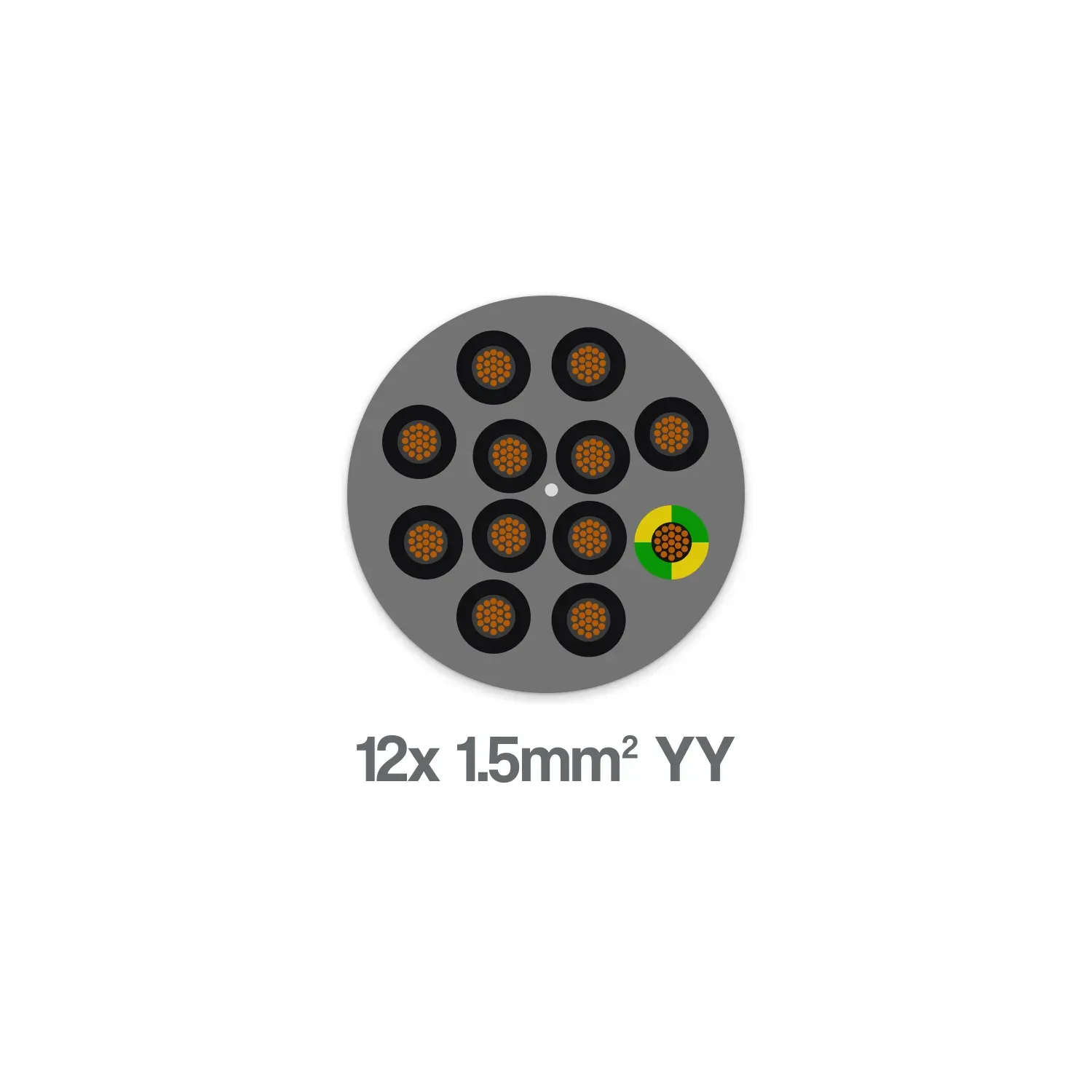

YY 12 Core 1.5mm2 LSZH Flexible Control Cable 300 500V Grey 1215YY

Photo is representative

YY 12 Core 1.5mm2 LSZH Flexible Control Cable 300 500V Grey 1215YY

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 1215YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £5.19

Gross price

£6.23

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

12-core YY control cable with LSZH insulation and outer sheath. Grey, 13.1mm OD. Suited to control and signal circuits on conveyors, assembly lines, and production equipment where low smoke emission matters.

LSZH sheath limits smoke and toxic fume output in fire conditions — relevant where cable runs near occupied or enclosed areas.

  • 12 cores: 11 black numbered + G/Y earth
  • Plain annealed stranded Cu, 30⁄0.25mm, 1.5mm² CSA
  • 18.5A current capacity in air at 30°C, 15A in conduit
  • Recommended gland size: 20mm
  • BS EN 50525-2-11
Specifications

Voltage Rating

300/500V

Core Count

12

CSA

1.5mm²

Core Identification

11 black numbered cores + Green/Yellow earth

Conductor Type

Plain Annealed Stranded Copper

Stranding

30/0.25mm

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

13.10mm

Weight

290 kg/km

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Recommended Gland Size

20mm

Cable Standard

BS EN 50525-2-11
