3 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

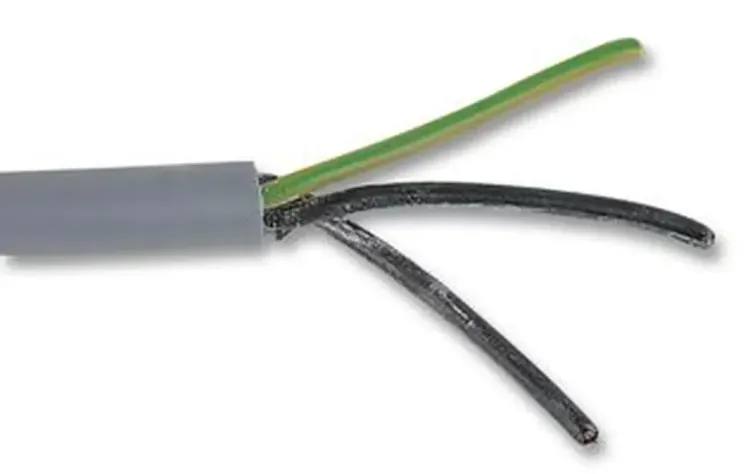

Photo is representative

3 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 315YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £1.30

Gross price

£1.56

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

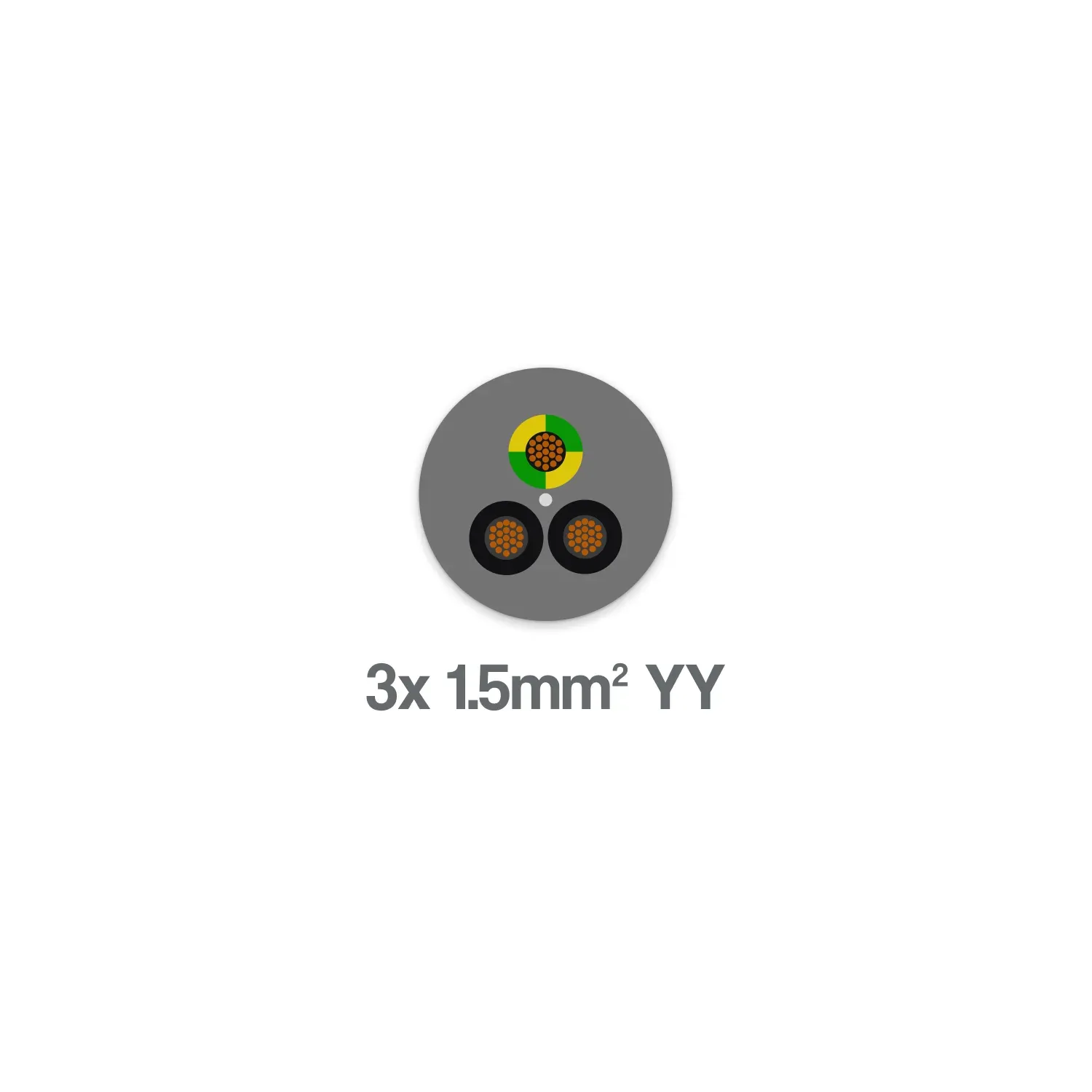

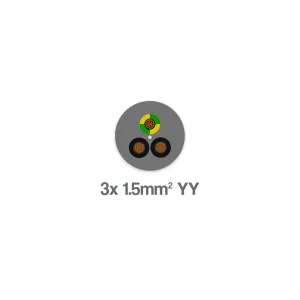

3 core 1.5mm YY flexible control cable with LSZH insulation and outer sheath. Grey sheath, 2 black numbered cores plus green/yellow earth. Rated 300/500V.

LSZH construction limits smoke and toxic fume output in fire conditions — suitable where people density is a factor. Used on conveyors, assembly lines and production equipment.

  • 1.5mm² plain annealed stranded copper, 30⁄0.25mm stranding
  • 18.5A current capacity in air at 30°C, 15A in conduit
  • OD 7.00mm — recommended gland 20/16mm
  • Static install down to -20°C, flexing from -5°C
Specifications

Conductor CSA

1.5mm²

Number of Cores

3

Stranding

30/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Core ID

2 black numbered cores + Green/Yellow earth

Voltage Rating

300/500V

Outside Diameter

7.00mm

Recommended Gland Size

20/16mm

Temp Range (Flexing)

-5°C to +70°C

Temp Range (Static)

-20°C to +70°C

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Weight

87 kg/km

Cable Standard

BS EN 50525-2-11
