25 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Cores Earth

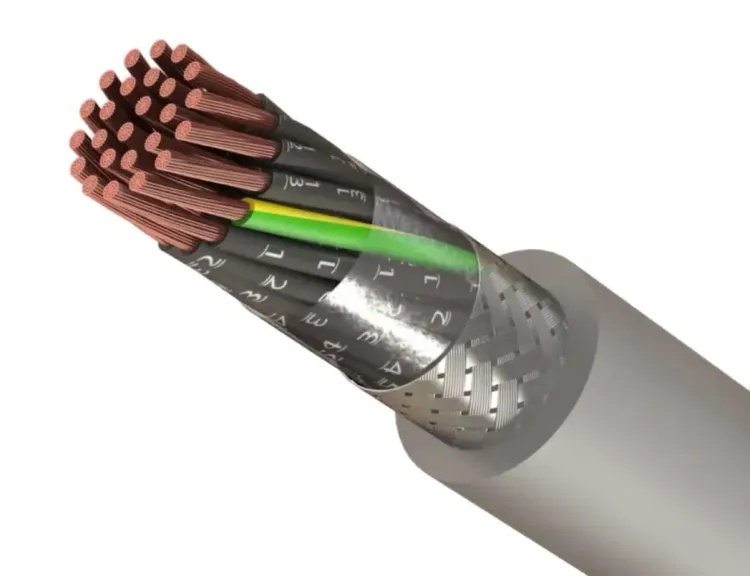

Photo is representative

25 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V Black Numbered Cores Earth

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2515YY
GTIN —
Stock status: In stock

priced per metre

Net price: £11.58

Gross price

£13.90

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

25-core 1.5mm² YY flexible control cable with LSZH insulation and outer sheath. Suited to conveyors, assembly lines, and production equipment where smoke emission and toxic fumes in a fire event are a concern.

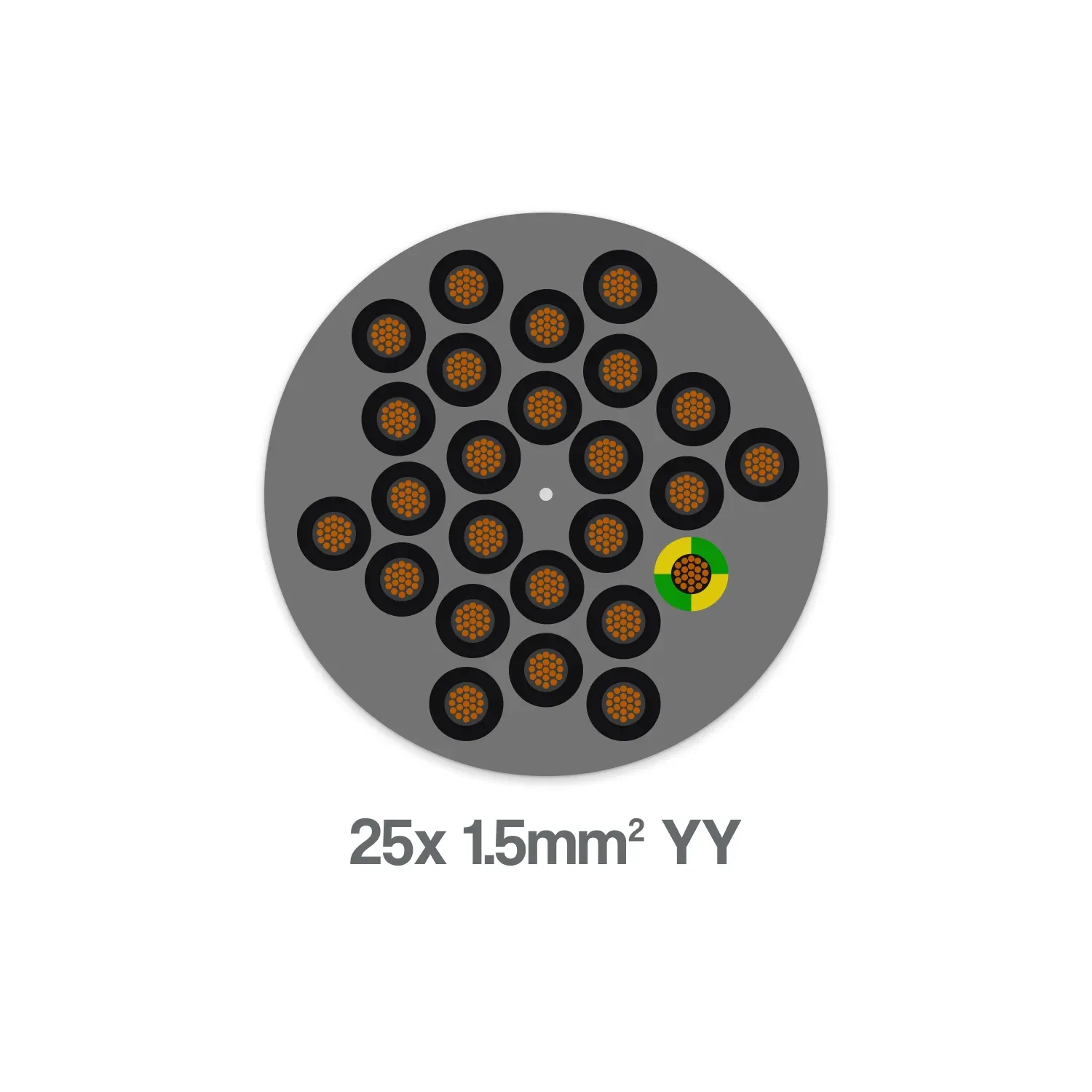

Cores are plain annealed stranded copper (30⁄0.25mm), numbered black 1–24 plus a G/Y earth. Recommended gland size is 25mm.

  • 300/500V rated, BS EN 50525-2-11
  • 18mm OD, 565 kg/km
  • Current capacity: 18.5A in air, 15A in conduit (both at 30°C)
  • Flexing range: -5°C to +70°C | Static: -20°C to +70°C
Specifications

Voltage Rating

300/500V

Core Count

25

CSA

1.5mm²

Core Identification

24 black numbered cores + Green/Yellow earth

Stranding

30/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

18.00mm

Weight

565 kg/km

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Recommended Gland Size

25mm

Cable Standard

BS EN 50525-2-11
