34 Core 1.5mm YY LSZH Flexible Control Cable 300 500V Grey

Photo is representative

34 Core 1.5mm YY LSZH Flexible Control Cable 300 500V Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 3415YY
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £13.93

Gross price

£16.71

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

34-core 1.5mm² YY cable with LSZH insulation and sheath. Suited to control and signal circuits on conveyors, assembly lines and production equipment where low smoke emission matters.

LSZH sheath limits smoke and toxic fumes in a fire — relevant for installations in occupied or high-density areas.

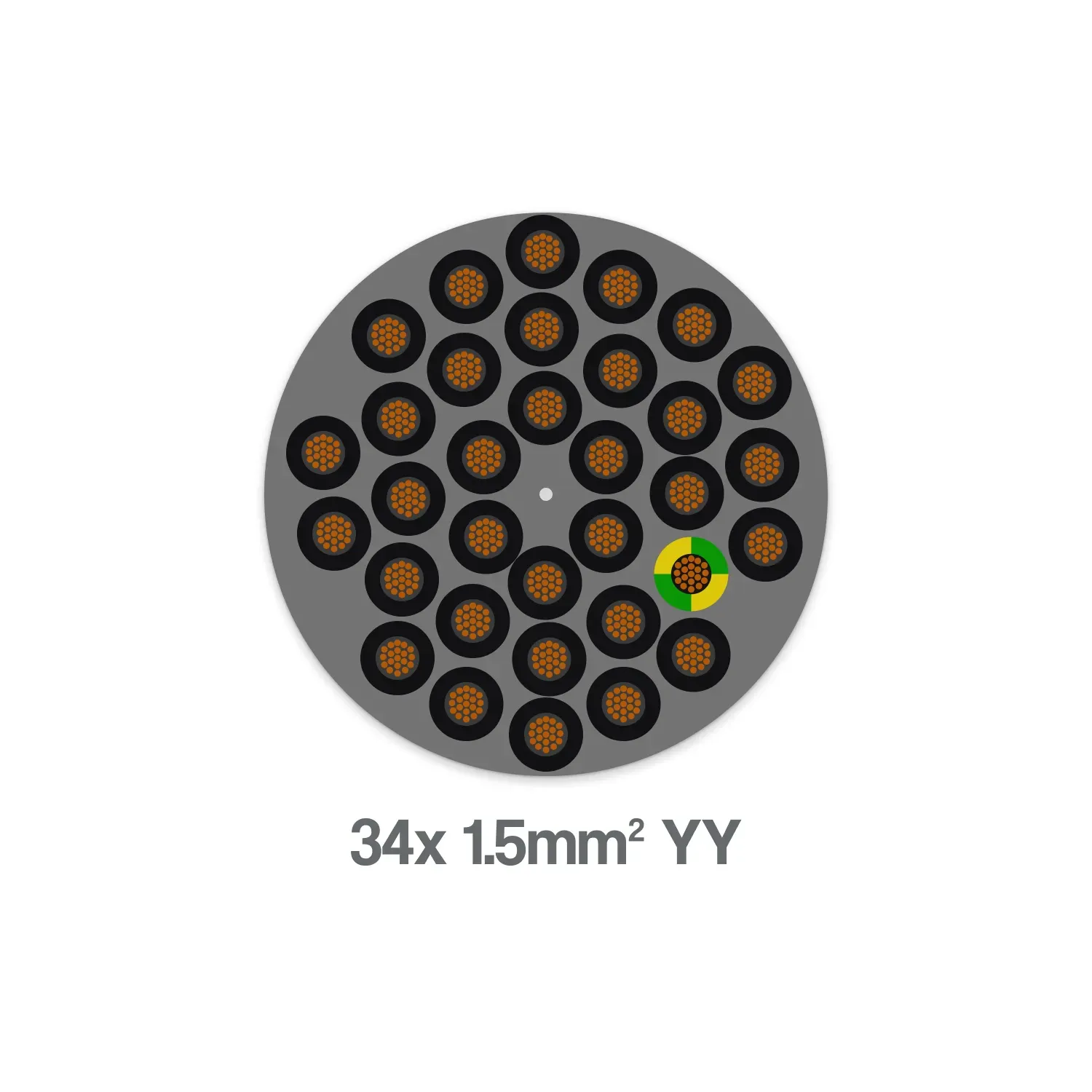

  • 33 black numbered cores + G/Y earth
  • Plain annealed stranded copper, 30⁄0.25mm
  • Current capacity: 18.5A in air, 15A in conduit (at 30°C)
  • 21mm OD — use 32mm gland
  • Rated -5°C to +70°C flexing, -20°C to +70°C static
Specifications

Cores

34 (33 black numbered + G/Y earth)

CSA

1.5mm²

Stranding

30/0.25mm

Conductor Type

Plain annealed stranded copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Voltage Rating

300/500V

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Outside Diameter

21.00mm

Recommended Gland Size

32mm

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Voltage Drop (2-core DC)

29 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

775 kg/km

Cable Standard

BS EN 50525-2-11
