4 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

Photo is representative

4 Core 1.5mm YY LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 415YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £2.05

Gross price

£2.47

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

4 core 1.5mm YY flexible control cable with LSZH insulation and outer sheath. Suits control and signal circuits on conveyors, assembly lines and production equipment.

LSZH sheath limits smoke emission and toxic fumes — suitable where high concentrations of people are present.

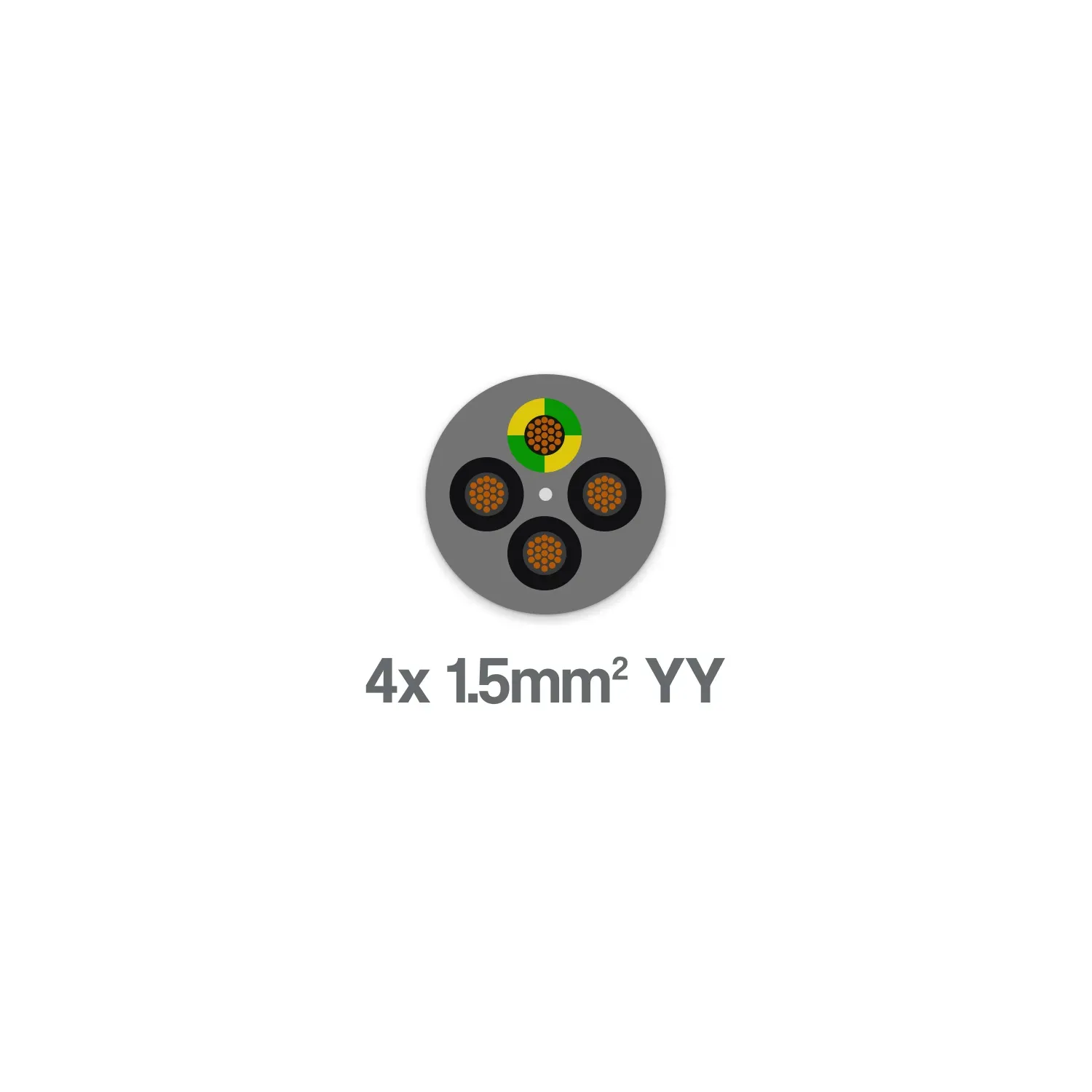

  • 3 black numbered cores + G/Y earth
  • 18.5A current capacity in air at 30°C
  • 7.60mm OD — recommended gland 20/16mm
  • Static temp range: -20°C to +70°C
Specifications

Cores

4

CSA

1.5mm²

Voltage Rating

300/500V

Core ID

3 black numbered cores + Green/Yellow earth

Conductor Type

Plain Annealed Stranded Copper

Stranding

30/0.25mm

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

7.60mm

Recommended Gland Size

20/16mm

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

110 kg/km

Cable Standard

BS EN 50525-2-11
