YY 7 Core 1.5mm2 LSZH Flexible Control Cable Grey 300 500V

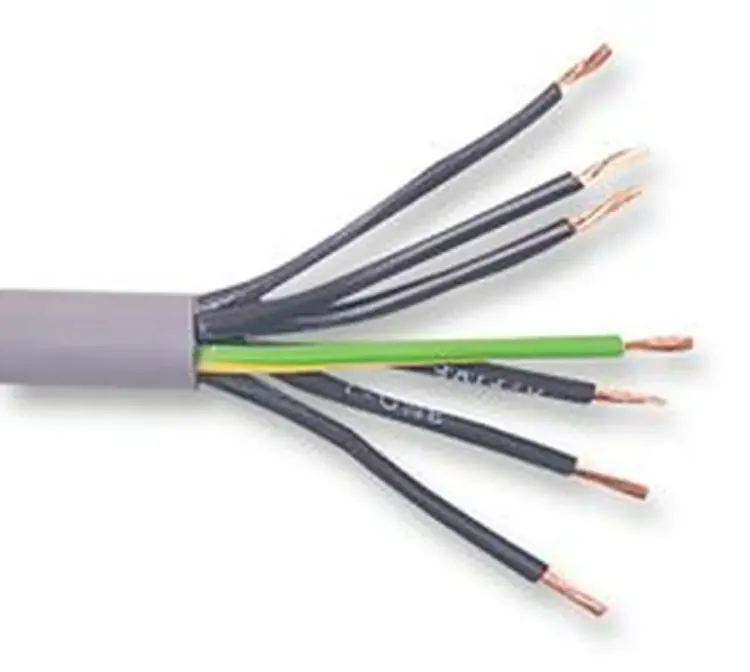

Photo is representative

YY 7 Core 1.5mm2 LSZH Flexible Control Cable Grey 300 500V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 715YY
GTIN —
Stock status: In stock

priced per metre

More arriving soon

Net price: £4.17

Gross price

£5.01

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

7-core YY control cable with LSZH insulation and outer sheath. 1.5mm² plain annealed stranded copper conductors — 30⁄0.25mm stranding. Cores are 6 black numbered plus a G/Y earth, so termination is straightforward on panels and machinery.

LSZH sheath limits smoke and toxic fumes in fire — suits installs where people are concentrated. Rated 300/500V, built to BS EN 50525-2-11.

  • Current capacity: 18.5A in air / 15A in conduit (both at 30°C)
  • OD: 9.20mm — recommended gland size 20S
  • Static temp range: -20°C to +70°C
Specifications

Voltage Rating

300/500V

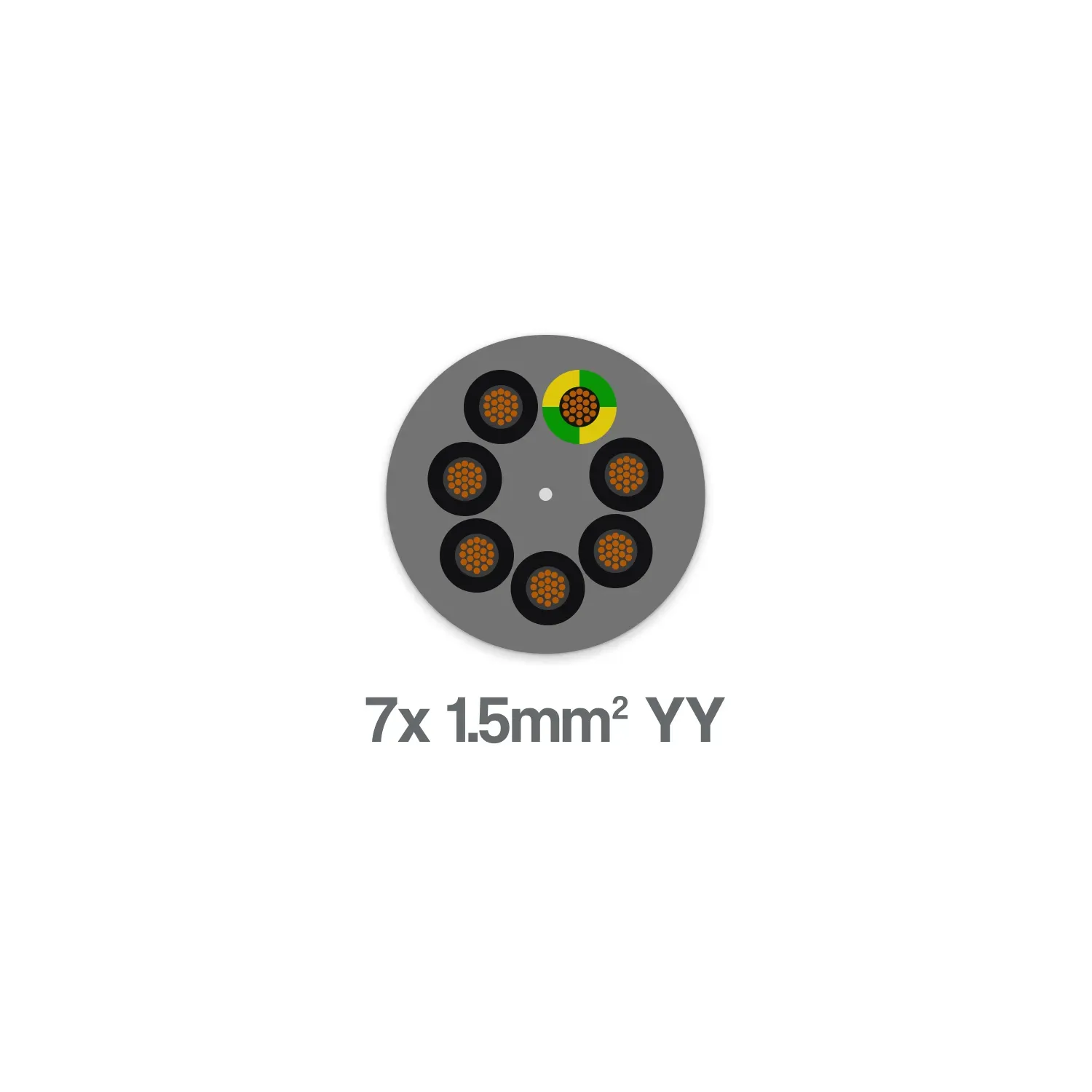

Core Configuration

6 black numbered cores + Green/Yellow earth

Number of Cores

7

Conductor CSA

1.5mm²

Stranding

30/0.25mm

Conductor Type

Plain Annealed Stranded Copper

Insulation

LSZH

Outer Sheath

LSZH

Sheath Colour

Grey

Outside Diameter

9.20mm

Recommended Gland Size

20S mm

Current Capacity in Air at 30°C

18.5A

Current Capacity in Conduit at 30°C

15A

Max Conductor Resistance at 20°C

13.3 Ω/km

Voltage Drop (Single Phase AC)

29 mV/A/m

Voltage Drop (Three Phase AC)

25 mV/A/m

Temperature Range (Flexing)

-5°C to +70°C

Temperature Range (Static)

-20°C to +70°C

Weight

176 kg/km

Cable Standard

BS EN 50525-2-11
