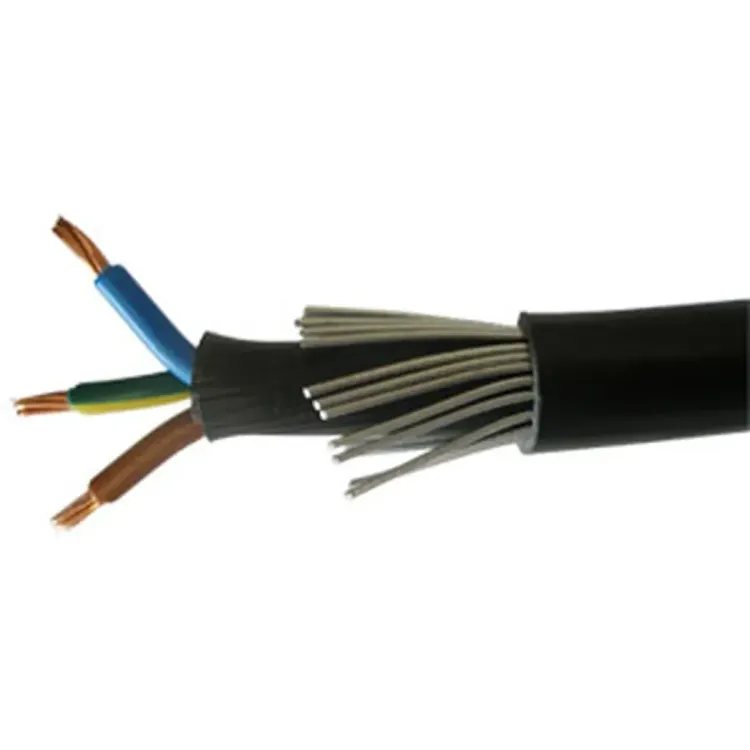

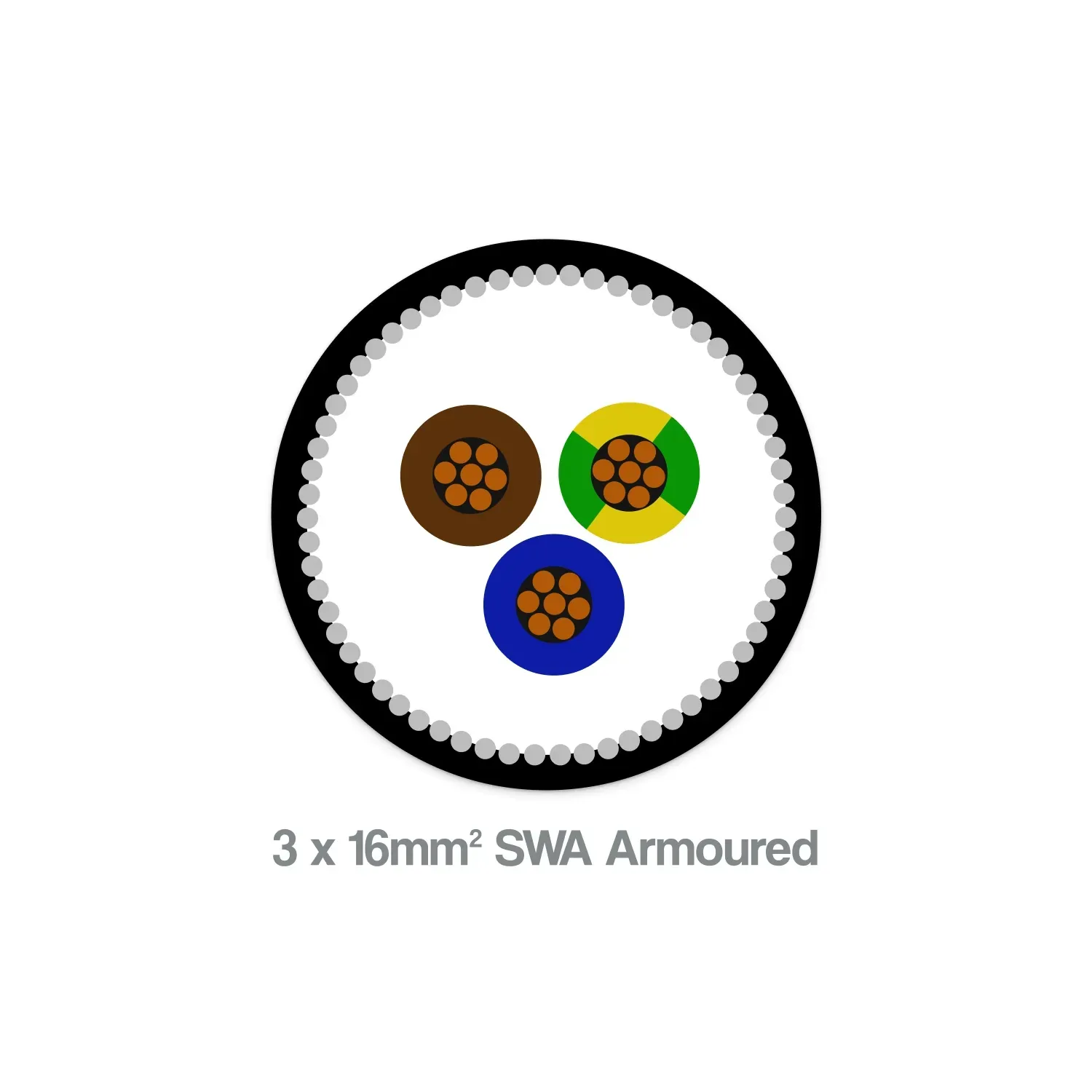

Close-up of 16mm² 3 core SWA armoured power cable with black LSZH sheath

Photo is representative

16mm² 3 Core SWA Armoured Cable 600/1000V XLPE/LSZH BS6724

Product Information

Stock Code 316SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £12.56

Gross price

£15.07

This item is not available to order online. Contact us to arrange supply.

This 16mm² 3 core SWA armoured cable is designed for mains power distribution in safety-critical environments, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and a low smoke zero halogen (LSZH) inner bedding and outer sheath. The cable features class 2 stranded copper conductors and complies with BS 6724 and IEC 60502. Operating temperature range is -20°C to +90°C, with 90°C maximum conductor temperature. Steel wire armour (SWA) provides mechanical protection, making this cable suitable for direct burial, underground, duct, and outdoor installations where fire safety is paramount. Certified to BS EN/IEC 60332 and 61034 standards for flame retardancy and low smoke emission.

Specifications

Conductor Cross-Sectional Area

16mm² Class 2 stranded copper

Core Count

3 core configuration (brown, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross-Linked Polyethylene), 90°C maximum conductor temperature

Sheath Type

LSZH (Low Smoke Zero Halogen) inner bedding and black outer sheath

Armour Type

Galvanised steel wire armour (SWA) for mechanical protection

Operating Temperature Range

-20°C to +90°C (fixed)

Overall Diameter

20mm (approximate)

Weight per Metre

0.99kg/m (990kg/km)

Minimum Bending Radius

6 x overall diameter (fixed installation)

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60502, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24 (Cat C), BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Voltage Drop (Three-Phase AC)

2.5mV/A/m at full load (typical)
