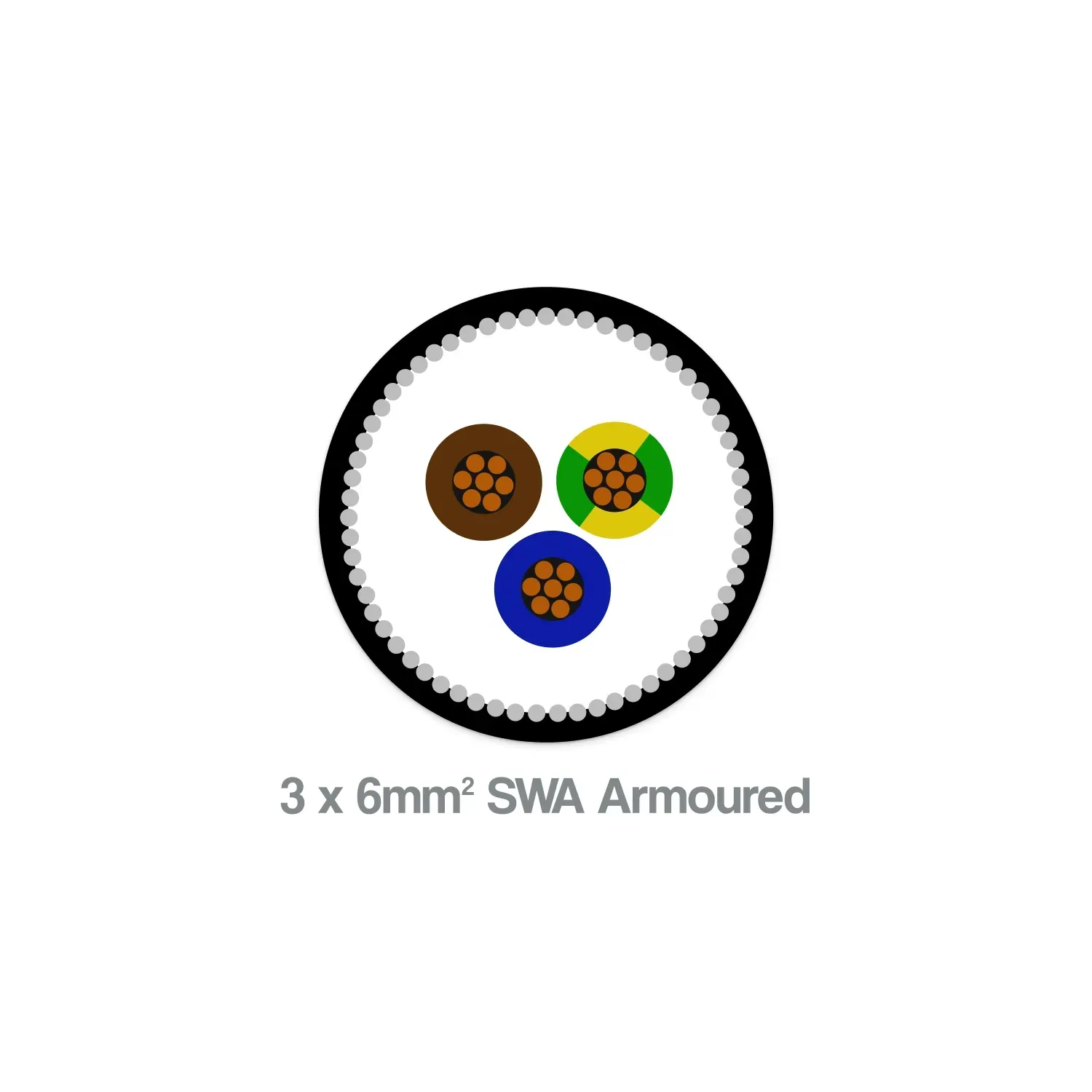

6mm² 3 Core SWA Armoured Cable - cross-section view with visible XLPE insulation and steel wire armour

Photo is representative

6mm² 3 Core SWA Armoured Cable 600/1000V XLPE/LSZH

This 6mm² 3 core SWA armoured cable is designed for mains power and control applications in critical safety environments, rated at 600/1000V with XLPE insulation and a low smoke zero halogen (LSZH) bedding and sheath. The cable features class 2 stranded copper conductors and complies with BS 6724 and IEC 60228 standards. With an operating temperature range of -20°C to +90°C, it is suitable for direct burial, underground, outdoor, and cable duct installations. Steel wire armour (SWA) provides mechanical protection, while the black LSZH sheath ensures reduced smoke and toxic emissions. This cable is ideal for public buildings, transport hubs, and areas where fire safety and reduced emissions are paramount.

Product Information

Stock Code 36SWA
GTIN
Stock status: In stock
More arriving soon
Price: £4.97
incl. VAT, 20% priced per meter

This item is currently unavailable for online purchase. Contact us for more info.

Product Features

Conductor Cross-Sectional Area 6mm² class 2 stranded copper
Core Count 3 core configuration (brown, blue, green/yellow)
Voltage Rating (Uo/U) 600/1000V
Insulation Type XLPE (cross-linked polyethylene), 90°C maximum conductor temperature
Bedding & Sheath Low Smoke Zero Halogen (LSZH), black colour
Armour Type Galvanised steel wire armour (SWA) for mechanical protection
Operating Temperature Range -20°C to +90°C (fixed installation)
Minimum Bending Radius 6 x overall diameter (fixed)
Current Carrying Capacity Refer to BS 7671 Table 4E4A (Installation Method D)
Voltage Drop (Three-phase AC) 6.8mV/A/m
Overall Diameter Approximately 14.8mm
Standards Compliance BS 6724, BS EN/IEC 60228, low smoke and acid gas emission tests
