35mm² 3 Core SWA Armoured Cable XLPE LSZH

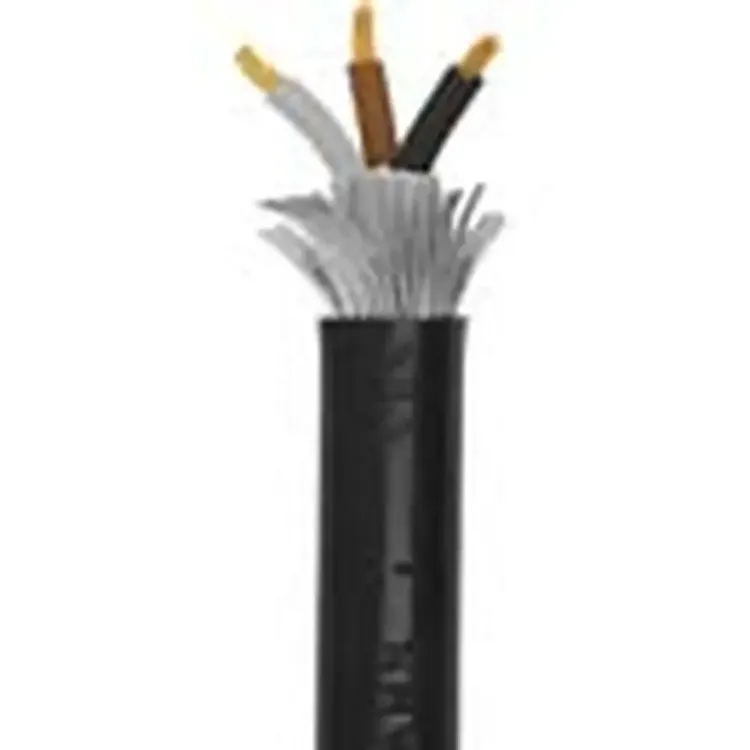

Photo is representative

35mm² 3 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 335SWA
GTIN —
Stock status: In stock

priced per meter

Net price: £19.15

Gross price

£22.99

This item is not available to order online. Contact us to arrange supply.

This 35mm² 3 core SWA armoured cable is designed for power distribution in demanding environments, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and a black low smoke zero halogen (LSZH) outer sheath. The cable features class 2 stranded copper conductors and complies with BS 6724 and BS EN 60228. Operating temperature range: -20°C to +90°C. Steel wire armour (SWA) provides mechanical protection, making this cable suitable for direct burial, ducting, indoor and outdoor use. LSZH bedding and sheath ensure reduced smoke and toxic fume emissions in fire conditions for public buildings and critical installations.

Specifications

Conductor Cross-Sectional Area

35mm² class 2 stranded copper

Core Count

3 core configuration (Brown, Blue, Green/Yellow)

Voltage Rating (Uo/U)

600/1000V

Insulation Type

XLPE (Cross Linked Polyethylene), max conductor temperature 90°C

Outer Sheath

Black LSZH (Low Smoke Zero Halogen)

Armour Type

Galvanised Steel Wire Armour (SWA)

Operating Temperature

-20°C to +90°C (fixed installation)

Minimum Bending Radius

6 x overall diameter (installation)

Approximate Overall Diameter

26.5mm

Current Carrying Capacity

See BS 7671 Table 4D4A (installation-dependent)

Voltage Drop (Three-phase AC)

1.35mV/A/m

Standards Compliance

BS 6724, BS EN 60228, BS EN 60332-1-2, BS EN 61034-2, BS EN 60754-1/2
