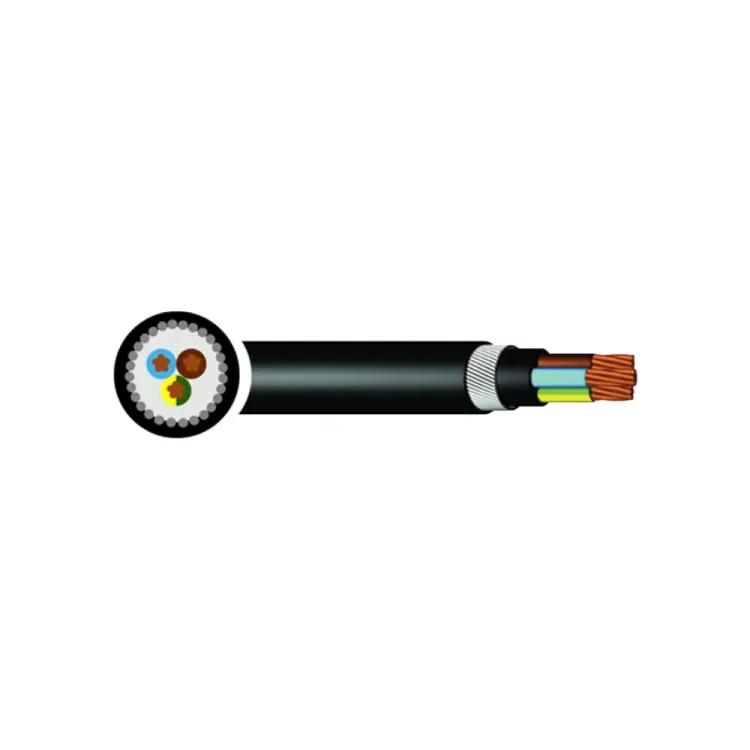

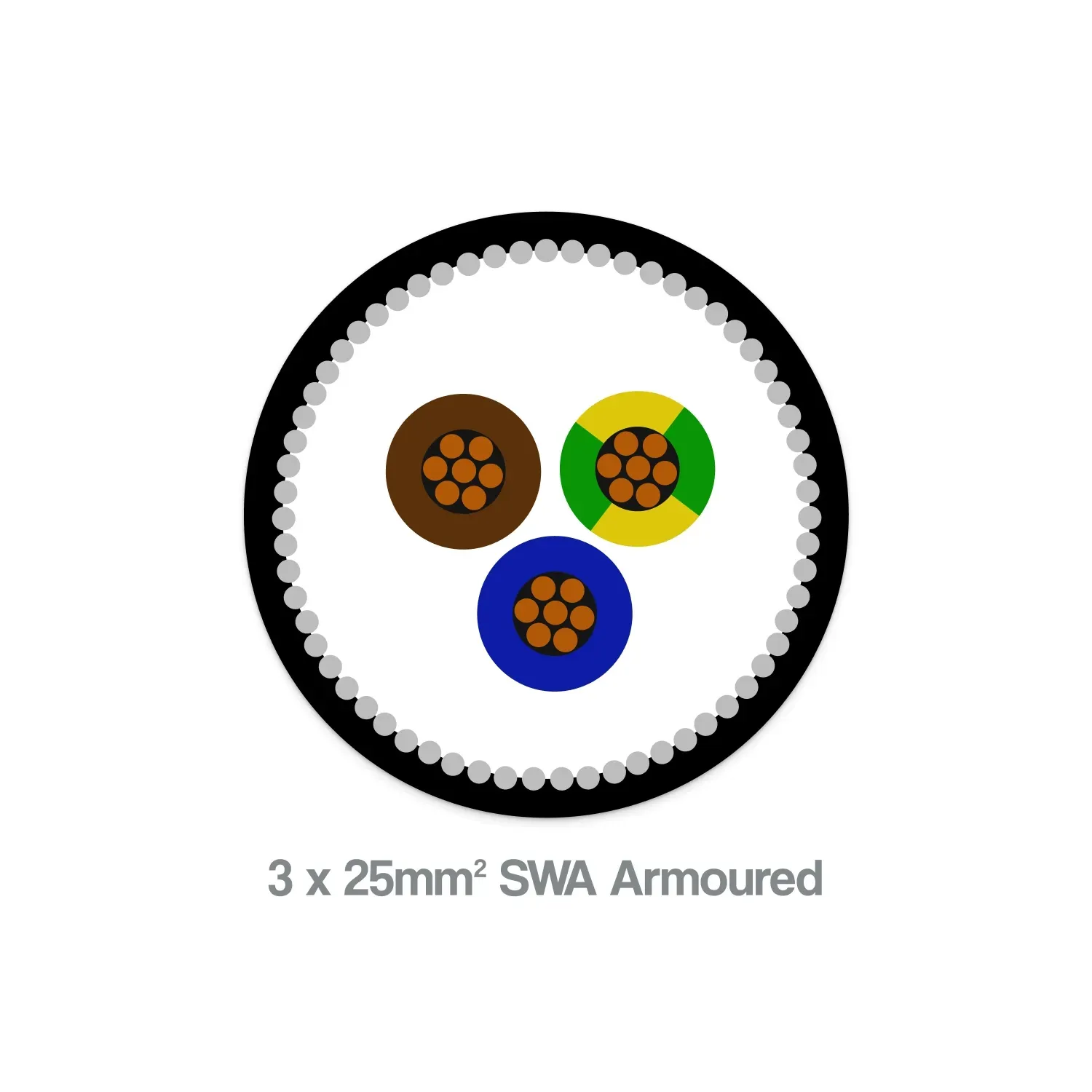

25mm² 3 core SWA armoured cable showing black LSZH sheath and steel wire armour

Photo is representative

25mm² 3 Core SWA Armoured Cable 0.6/1kV XLPE/LSZH

Product Information

Stock Code SWA325
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £16.70

Gross price

£20.04

This item is not available to order online. Contact us to arrange supply.

This 25mm² 3 core SWA armoured cable is designed for mains power distribution and control applications, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and low smoke zero halogen (LSZH) outer sheath. The cable features class 2 stranded copper conductors, steel wire armour for mechanical protection, and complies with BS6724 and BS EN/IEC 60228. Operating temperature range: -20°C to +90°C. Suitable for direct burial, outdoor, indoor, or in cable ducting. The LSZH construction meets fire safety requirements for installations in public buildings and areas needing low smoke and toxicity.

Specifications

Conductor Cross-Sectional Area

25mm² Class 2 stranded copper

Core Count

3 core configuration: Brown, Blue, Green/Yellow

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation

XLPE (Cross-Linked Polyethylene), 90°C max conductor temperature

Sheath Type

Low Smoke Zero Halogen (LSZH) black outer sheath

Armour

Galvanised steel wire armour (SWA) for mechanical protection

Operating Temperature

-20°C to +90°C fixed installation

Minimum Bending Radius

6 × overall diameter (approx. 140mm)

Standards Compliance

BS6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Installation Methods

Suitable for direct burial, underground, cable ducting, indoor and outdoor use

Overall Diameter

Approx. 23.2mm

Current Carrying Capacity

Refer to BS 7671 Table 4E4A (installation method dependent)

Voltage Drop (Three-phase AC)

1.9mV/A/m
