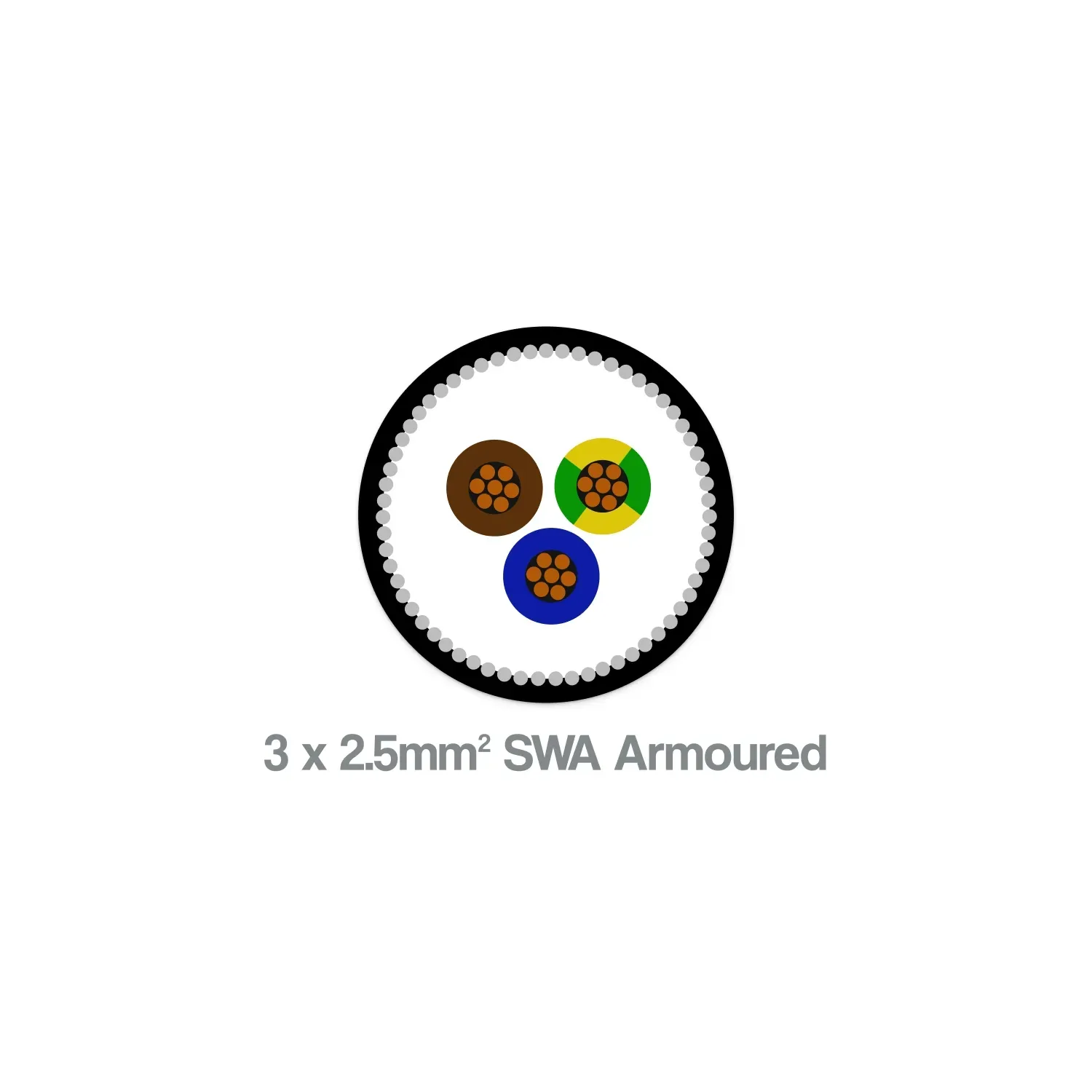

2.5mm² 3 core SWA armoured cable, XLPE/LSZH, black sheath - overall view

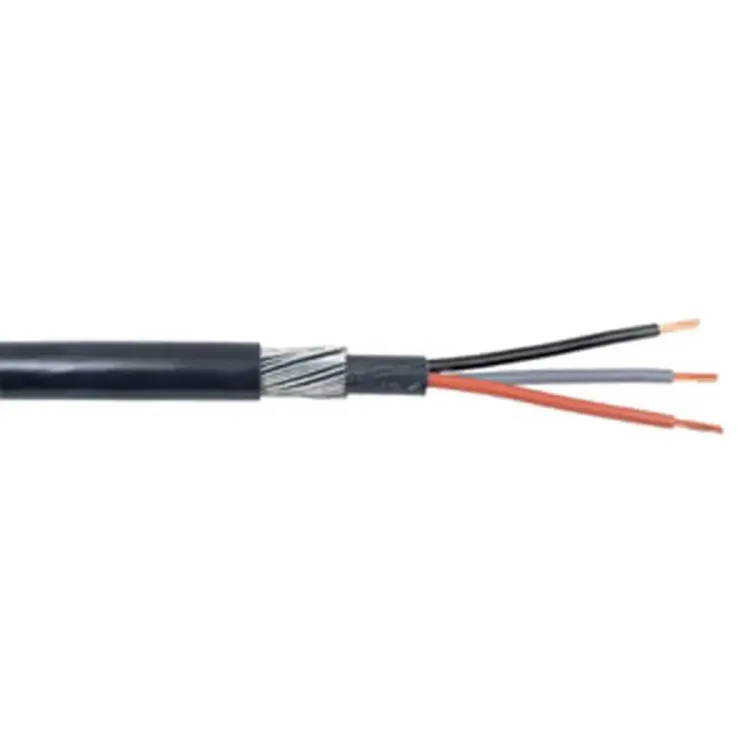

Photo is representative

2.5mm² 3 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 3X2.5SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £2.47

Gross price

£2.96

This item is not available to order online. Contact us to arrange supply.

This 2.5mm² 3 core SWA armoured cable is suitable for power distribution and control networks, rated at 600/1000V with XLPE insulation and LSZH sheath. The cable features class 2 stranded copper conductors and complies with BS 6724 and IEC 60228. Its Low Smoke Zero Halogen (LSZH) bedding and sheath provide enhanced fire safety for installations in confined or public areas with restricted escape routes. Operating temperature range: -20°C to +90°C. Suitable for direct burial, underground, indoor and outdoor fixed installations where fire, smoke, and toxicity are a concern.

Specifications

Conductor Cross-Sectional Area

2.5mm² class 2 stranded copper

Core Count

3 core configuration (blue, brown, green-yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross Linked Polyethylene)

Sheath/Jacket Type

Low Smoke Zero Halogen (LSZH), black

Armour Type

Galvanised steel wire armour (SWA)

Operating Temperature Range

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Minimum Bending Radius (Fixed)

6x overall diameter

Overall Diameter

Approx. 12.8mm

Weight per Metre

0.36kg (360kg/km)

Current Carrying Capacity

Refer to BS 7671 Table 4E4A (Method D)

Voltage Drop (Three-Phase AC)

16mV/A/m

Standards Compliance

BS 6724, BS EN/IEC 60228, IEC 60332-1-2, IEC 60332-3-24, IEC 61034-2, IEC 60754-1/2

Gland Size

20S
