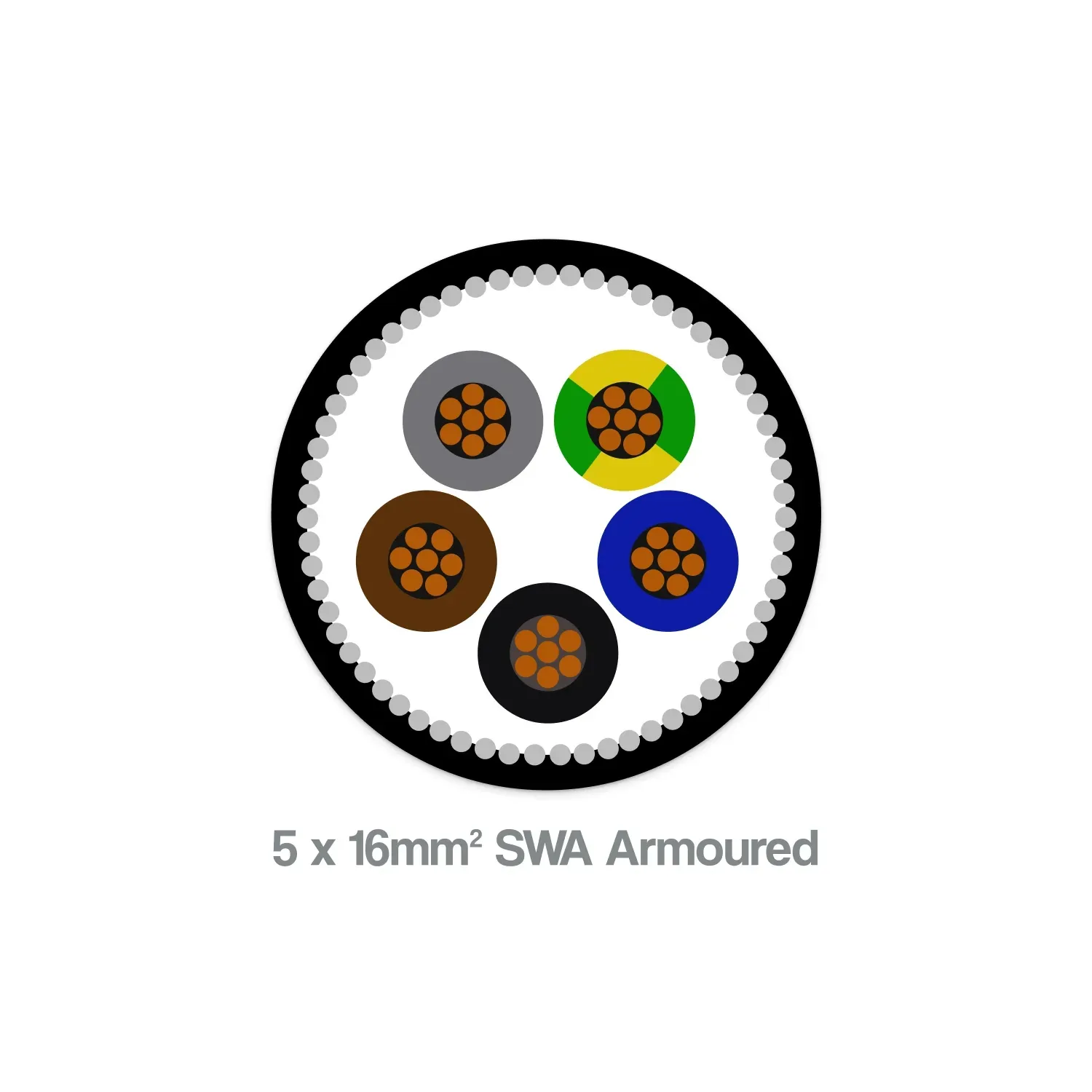

16mm² 5 core SWA armoured cable with black LSZH sheath and colour-coded cores

Photo is representative

16mm² 5 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 516SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £15.77

Gross price

£18.92

This item is not available to order online. Contact us to arrange supply.

This 16mm² 5 core SWA armoured cable is designed for mains power and control applications, rated at 600/1000V with cross-linked polyethylene (XLPE) insulation and a black LSZH (Low Smoke Zero Halogen) sheath. The cable features class 2 stranded copper conductors and complies with BS 6724 and BS EN/IEC 60228. Operating temperature range is -20°C to +90°C with a 90°C maximum conductor temperature. Steel wire armour provides robust mechanical protection, making it suitable for direct burial, underground ducts, indoor and outdoor fixed installations, including public buildings with critical fire safety requirements. Cable core colours: brown, black, grey, blue, green/yellow in accordance with standard.

Specifications

Conductor Size

16mm² Class 2 stranded copper

Core Count

5 core configuration (brown, black, grey, blue, green/yellow)

Voltage Rating

600/1000V (0.6/1kV)

Insulation Type

XLPE (Cross Linked Polyethylene), 90°C maximum conductor temperature

Outer Sheath Type

Black Low Smoke Zero Halogen (LSZH)

Armour

Galvanised steel wire armour (SWA)

Operating Temperature

-20°C to +90°C (fixed installation)

Standards Compliance

BS 6724, BS EN/IEC 60228, BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24, BS EN/IEC 61034-2, BS EN/IEC 60754-1/2

Minimum Bending Radius

6 x overall diameter (fixed)

Overall Diameter

23.2mm (approximate)

Weight

1285kg/km

Voltage Drop

2.5mV/A/m (three-phase AC)
