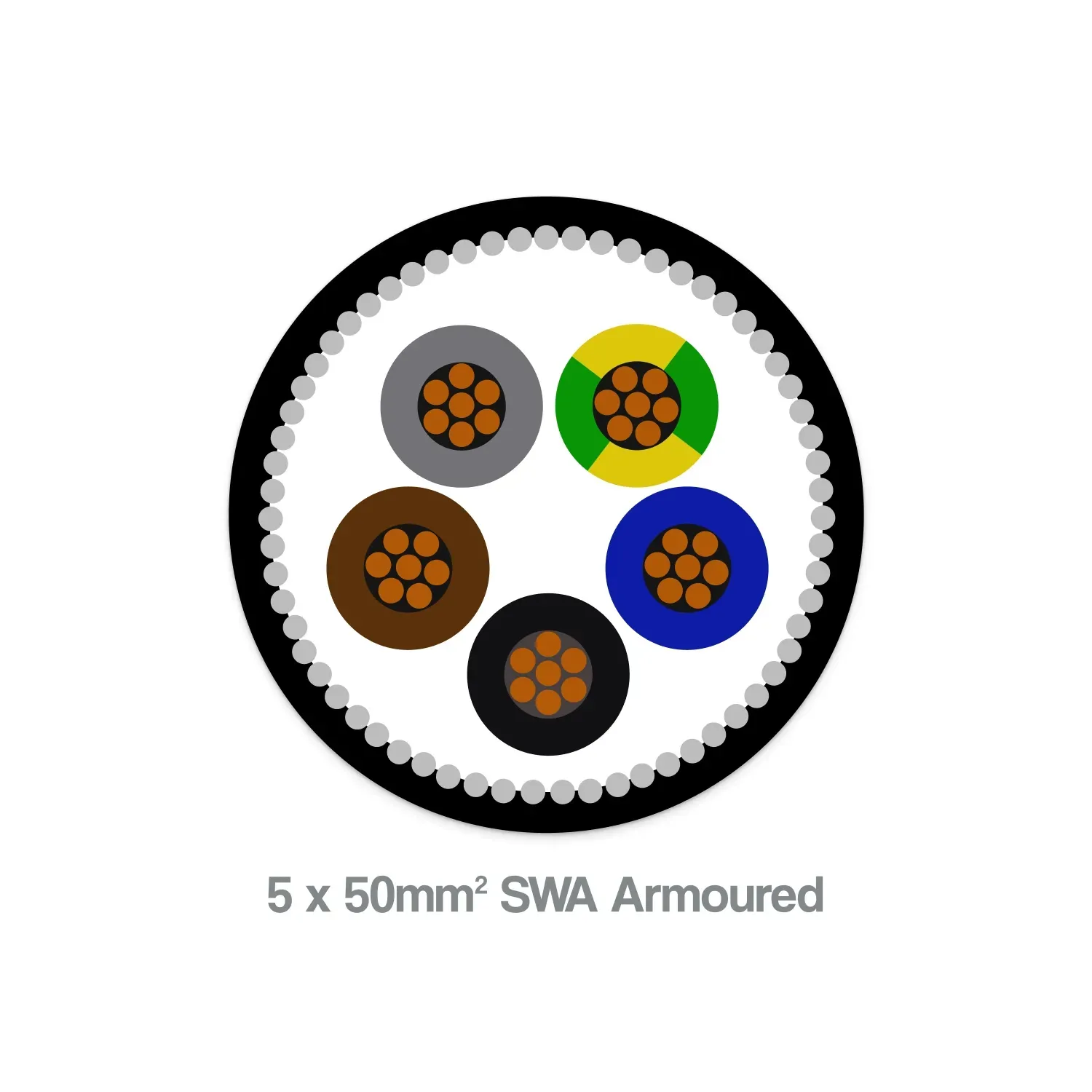

50mm² 5 core SWA armoured cable XLPE LSZH 600/1000V BS 6724 black sheath

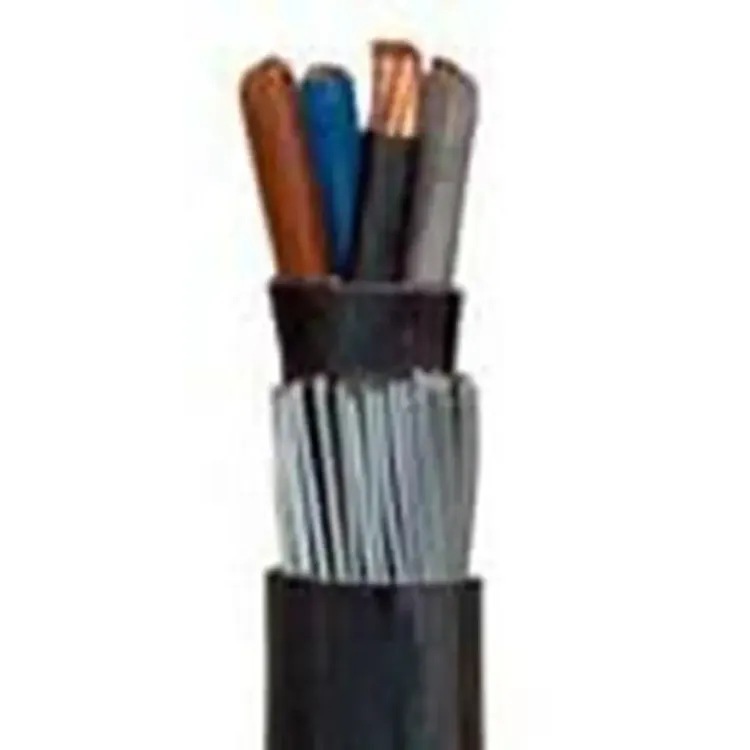

Photo is representative

50mm² 5 Core SWA Armoured Cable XLPE/LSZH 600/1000V BS 6724

Product Information

Stock Code 550SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £44.69

Gross price

£53.63

This item is not available to order online. Contact us to arrange supply.

This 50mm² 5 core SWA armoured cable is designed for heavy-duty power distribution and control applications, rated at 600/1000V with XLPE insulation and a Low Smoke Zero Halogen (LSZH) sheath. Featuring Class 2 stranded copper conductors, the cable is constructed to BS 6724 standards for enhanced fire safety and comprises a steel wire armour (SWA) for robust mechanical protection. The operating temperature range is -20°C to +90°C, suitable for underground, outdoor, and indoor installations where fire and smoke emission restrictions apply. Ideal for public buildings, computer rooms, and datacentres requiring strict compliance with IS 10101:2020 and BS 7671:2018.

Specifications

Conductor Cross-Sectional Area

50mm²

Core Count

5 cores (brown, black, grey, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V (0.6/1kV)

Conductor Material

Class 2 stranded copper

Insulation Type

XLPE (Cross Linked Polyethylene)

Outer Sheath Type

LSZH (Low Smoke Zero Halogen)

Armour Type

Steel Wire Armour (SWA)

Operating Temperature

-20°C to +90°C

Maximum Conductor Temperature

90°C continuous

Standards Compliance

BS 6724, BS EN/IEC 60228, IEC 60332-1-2/3-24, EN 61034-2, EN 60754-1/2

Installation Method

Direct burial, underground, outdoor, indoor, cable ducts

Approximate Overall Diameter

36.7mm

Current Carrying Capacity

Refer to BS 7671 Table 4E4A (installation dependent)

Voltage Drop (Three-phase AC)

0.98mV/A/m

Weight per Metre

3.19kg
