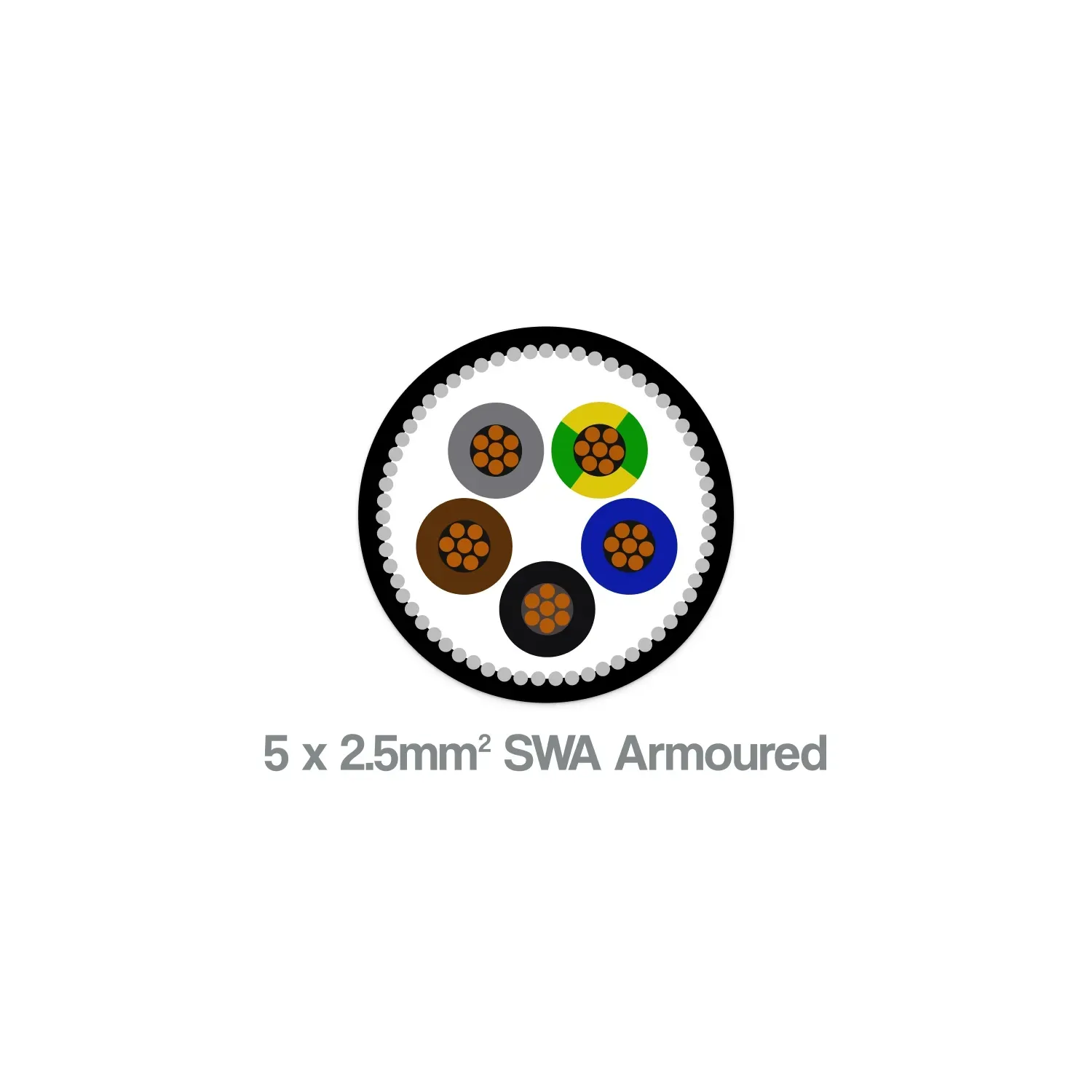

2.5mm² 5 core SWA armoured cable cross-section

Photo is representative

2.5mm² 5 Core SWA Armoured Cable 600/1000V XLPE/LSZH

Product Information

Stock Code 5X2.5SWA
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £4.01

Gross price

£4.82

This item is not available to order online. Contact us to arrange supply.

This 2.5mm² 5 core SWA armoured cable is designed for power distribution and control circuits, rated at 600/1000V with XLPE insulation and a Low Smoke Zero Halogen (LSZH) oversheath for enhanced fire safety. The cable features Class 2 stranded copper conductors and complies with BS 6724 and BS EN/IEC 60228 standards. Its operating temperature range is -20°C to +90°C. The galvanised steel wire armour (SWA) ensures mechanical protection for direct burial, indoor, outdoor, and duct installations. LSZH construction makes it suitable for use where fire, smoke, and toxicity are major concerns, such as public buildings, data centres, and escape routes. See BS 7671 for current ratings. Suitable for IS 10101 installations requiring Dca-s2, d2, a2 compliance.

Specifications

Conductor Cross-Sectional Area

2.5mm² Class 2 stranded copper

Core Count

5 core configuration (black, brown, grey, blue, green/yellow)

Voltage Rating (Uo/U)

600/1000V

Insulation Type

XLPE (Cross-Linked Polyethylene), 90°C max conductor temperature

Sheath/Jacket Type

LSZH (Low Smoke Zero Halogen) black outer sheath

Armour Type

Galvanised steel wire armour (SWA)

Operating Temperature Range

-20°C to +90°C (fixed)

Overall Diameter

Approx. 14.7mm

Weight per Metre

0.435kg (435kg/km)

Voltage Drop (Three-phase AC)

16mV/A/m

Current Carrying Capacity

See BS 7671 Table 4E4A, installation method dependent

Standards Compliance

BS 6724, BS EN/IEC 60228, IS 10101:2020 (Dca-s2, d2, a2)
