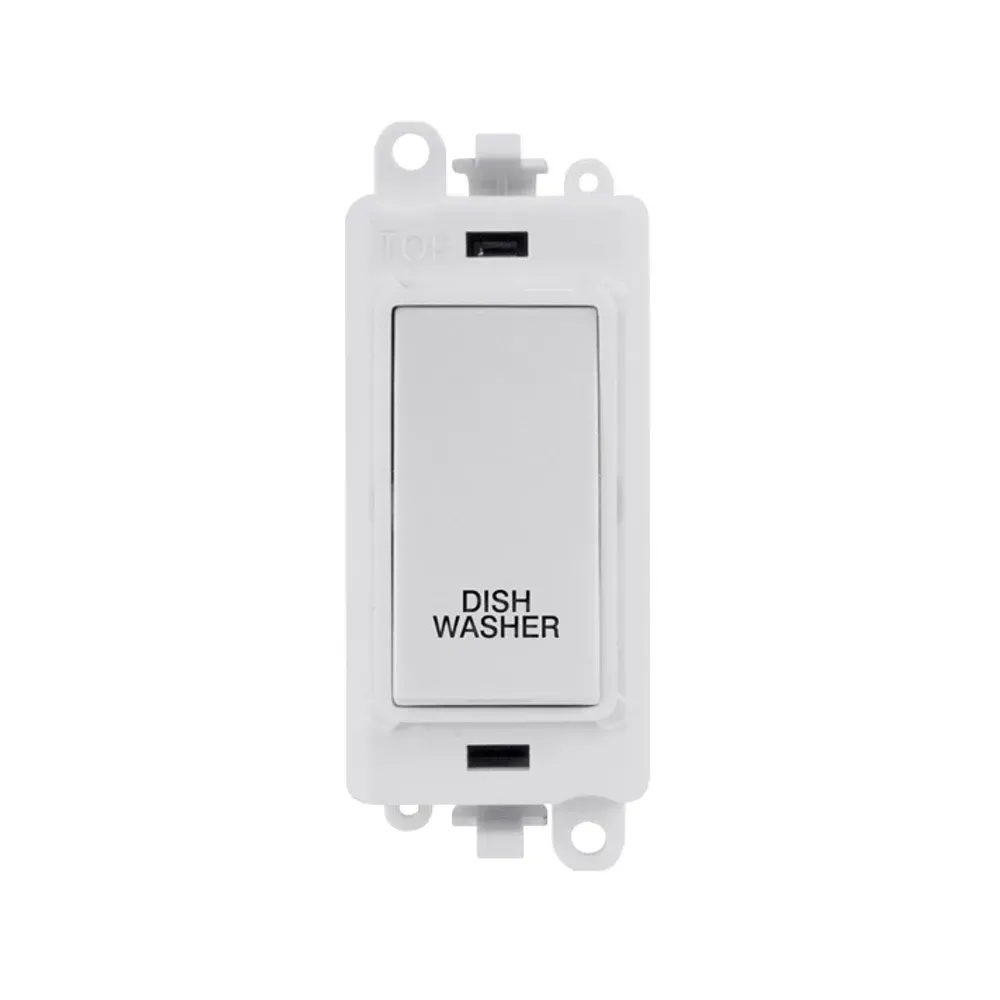

Click GridPro 20A Double Pole Switch Module, 2-Way, Diswasher, Polar White

Name: Click GridPro 20A Double Pole Switch Module, 2-Way, Diswasher, Polar White
SKU: GM2018PWDW
Availability: InStock

Click GridPro 20A Double Pole Switch Module controls dishwasher power. 2-way switch, screw terminals, nylon body, urea switch. 250V, 50Hz, suitable for inductive loads. Polar White finish.

Stock Code GM2018PWDW

MPN GM2018P

GTIN —

In stock

£5.57

incl. VAT, 20% priced individually

Product Features

SKU	GM2018PWDW
Brand	Click
Model	GM2018PW-DW
Range	GridPro
Finish	Polar White
Switch	Urea
Contacts	Silver on-lay Copper / Brass
Warranty	10years
Way Switch	Yes
Insert Colour	Polar White
Switch Finish	Polar White
Terminal Size	Ø5mm
Neon Indicator	No
Body And Insert	Nylon
Product Marking	Dishwasher
Dimensions WxHxD	24.5mm x 50mm x 22.5mm
Termination Type	Screw
Load Rating Comments	Suitable for Inductive Loads
Inductive Load Rating	20A
Minimum Back Box Depth	25mm (35mm Flat Plate)
Operational Temperature	-5℃ to +40℃
Rated Voltage Frequency	250V, 50Hz
Terminal Capacity Solid	3 x 2.5mm² or 2 x 4mm²
Anti Microbial Certified	No
Terminals Terminal Screws	Brass, Steel & Yellow Passivated
