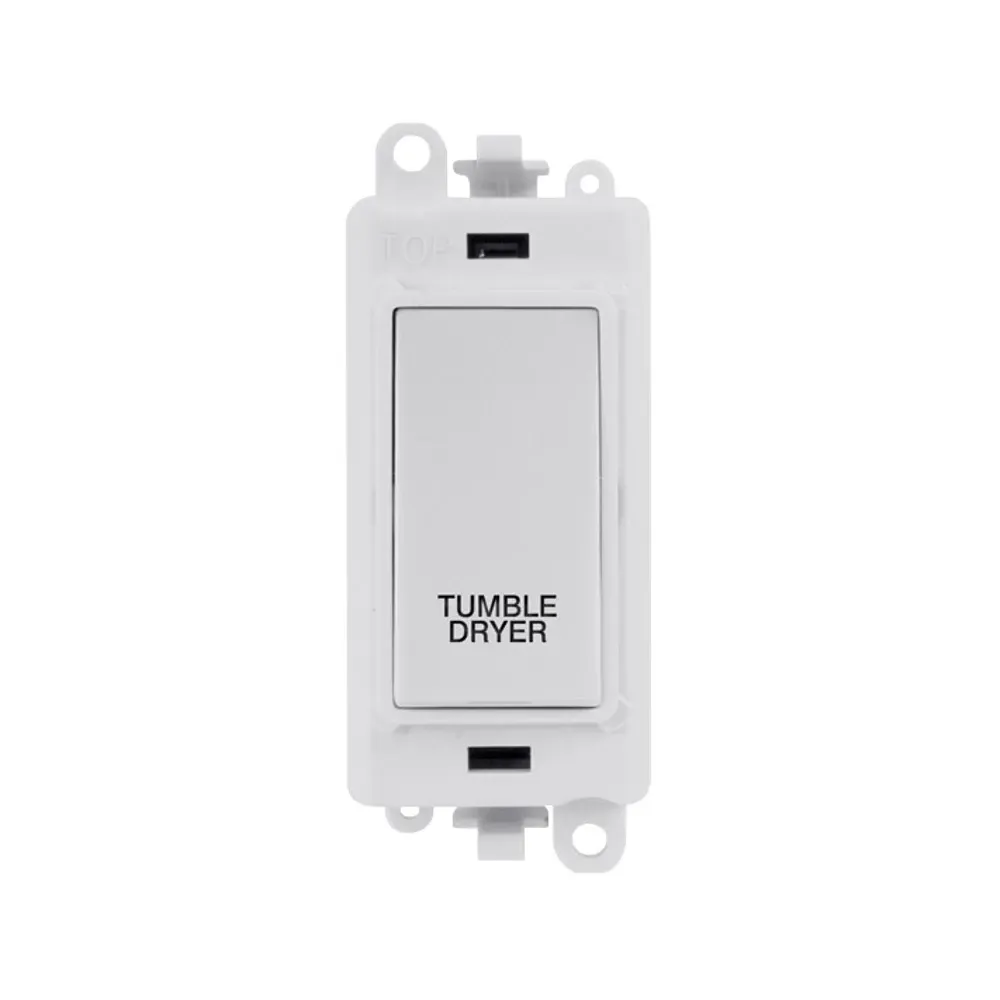

Click GridPro 20A Double Pole Switch Module, 2-Way, Tumble Dryer, Polar White
Click GridPro 20A Double Pole Switch Module controls tumble dryer power. 2-way switch, screw terminals, nylon body, urea switch. 250V, 50Hz, suitable for inductive loads. Polar White finish.
Stock Code
GM2018PWTD
In stock
This product is not available right now. Contact us for more info.
Product Features
-
SKU
GM2018PW-TD
-
Brand
Click
-
Model
GM2018PW-TD
-
Range
GridPro
-
Finish
Polar White
-
Switch
Urea
-
Contacts
Silver on-lay Copper / Brass
-
Warranty
10years
-
Way Switch
Yes
-
Insert Colour
Polar White
-
Switch Finish
Polar White
-
Terminal Size
Ø5mm
-
Neon Indicator
No
-
Body And Insert
Nylon
-
Product Marking
Tumble Dryer
-
Dimensions WxHxD
24.5mm x 50mm x 22.5mm
-
Termination Type
Screw
-
Load Rating Comments
Suitable for Inductive Loads
-
Inductive Load Rating
20A
-
Minimum Back Box Depth
25mm (35mm Flat Plate)
-
Operational Temperature
-5℃ to +40℃
-
Rated Voltage Frequency
250V, 50Hz
-
Terminal Capacity Solid
3 x 2.5mm² or 2 x 4mm²
-
Anti Microbial Certified
No
-
Terminals Terminal Screws
Brass, Steel & Yellow Passivated
