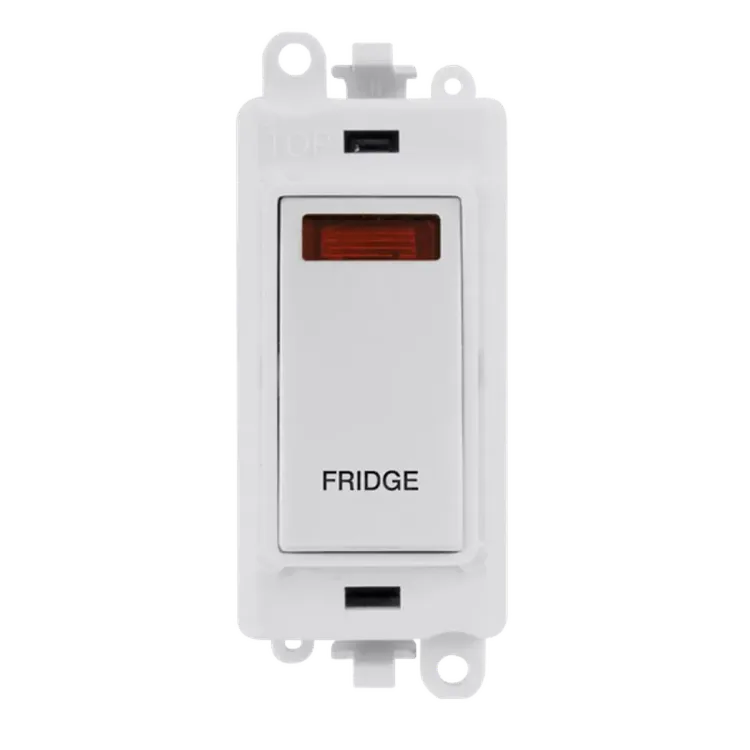

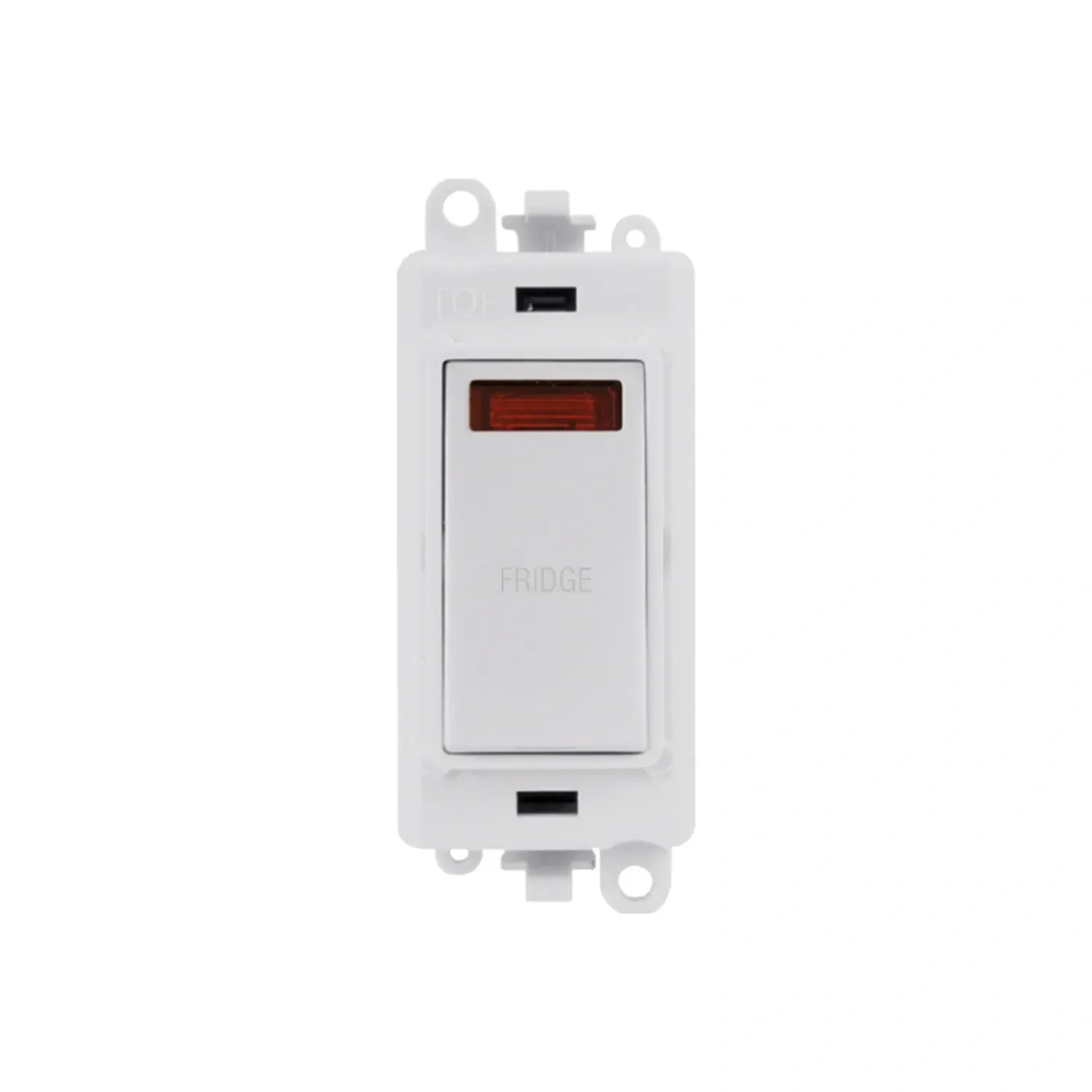

Click GridPro 20A Double Pole Switch Module, 2-Way, Neon, Fridge, Polar White
Click GridPro 20A Double Pole Switch Module. Controls fridge power with neon indicator. 2-way switch, screw terminals, nylon body, urea switch. 250V, 50Hz, suitable for inductive loads. Polar White finish.
Stock Code
GM2018NPWFD
Available
£7.07
incl. VATpriced individually
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Anti Microbial Certified
No
-
Body And Insert
Nylon
-
Brand
Click
-
Contacts
Silver on-lay Copper / Brass
-
Dimensions WxHxD
24.5mm x 50mm x 22.5mm
-
Finish
Polar White
-
Inductive Load Rating
20A
-
Insert Colour
Polar White
-
Load Rating Comments
Suitable for Inductive Loads
-
Minimum Back Box Depth
25mm (35mm Flat Plate)
-
Model
GM2018NPW-FD
-
Neon Indicator
Yes
-
Operational Temperature
-5℃ to +40℃
-
Product Marking
Fridge
-
Range
GridPro
-
Rated Voltage Frequency
250V, 50Hz
-
SKU
GM2018NPWFD
-
Switch
Urea
-
Switch Finish
Polar White
-
Terminal Capacity Solid
3 x 2.5mm² or 2 x 4mm²
-
Terminal Size
Ø5mm
-
Terminals Terminal Screws
Brass, Steel & Yellow Passivated
-
Termination Type
Screw
-
Warranty
10years
-
Way Switch
Yes
