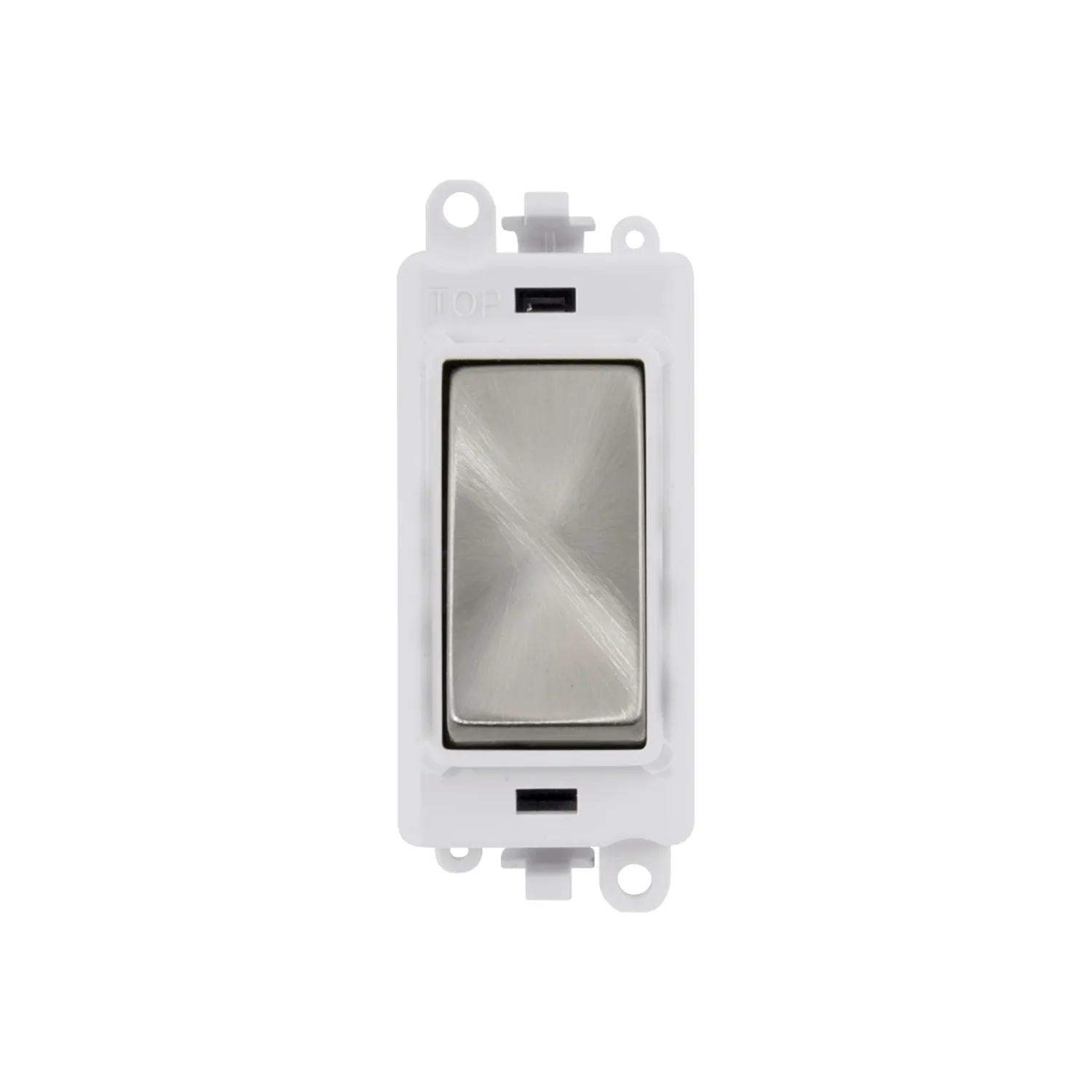

Click GridPro 2 Way Switch Module 20AX Satin Chrome with White Insert

Photo is representative

Click GridPro 2 Way Switch Module 20AX Satin Chrome White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code GM2002PWSC
GTIN —
Stock status: In stock

priced individually

Net price: £3.95

Gross price

£4.74

The Click GridPro GM2002PWSC is a 20AX 2-way switch module designed for euro grid systems, providing two-location lighting control in modular installations. This module features a satin chrome finish with polar white insert, making it suitable for domestic and light commercial applications where lighting needs to be controlled from two separate positions. 2-way switches are typically installed in pairs at either end of staircases, hallways, and large rooms.

Rated at 20AX at 250V AC, this module is designed for switching inductive loads such as fluorescent lighting and LED drivers. The module measures 24.5mm x 50mm x 22.5mm and features screw terminals with Ø5mm capacity accepting 3 x 2.5mm² or 2 x 4mm² conductors with 1.2Nm torque specification. Installation requires a minimum back box depth of 25mm, or 35mm when using flat grid plates. IP20 rating provides protection against finger contact for standard indoor installations.

This module is compatible with all euro grid system plates regardless of brand. The satin chrome finish with polar white insert coordinates with Click’s GridPro range, but the module can be installed in any standard euro grid plate featuring 25x50mm apertures. BS EN 60669-1 certified with a 20-year manufacturer warranty, ensuring long-term reliability in professional installations.

Specifications

Current Rating

20AX

Voltage

250V AC 50Hz

Module Size

24.5mm x 50mm x 22.5mm

Termination

Screw terminals Ø5mm 1.2Nm

Terminal Capacity

3 x 2.5mm² or 2 x 4mm²

Min Back Box Depth

25mm (35mm flat plate)

IP Rating

IP20

Color/Finish

Satin Chrome with Polar White Insert

Standards

BS EN 60669-1

Warranty

20 Year

Frequently asked questions

Will this fit other brand euro plates?

Yes, this module is compatible with all euro grid system plates from any manufacturer. The standard 25x50mm module size ensures cross-brand compatibility.

What depth back box do I need?

Minimum 25mm back box depth is required. When using flat grid plates, increase to 35mm minimum depth to accommodate the module and plate assembly.

What is a 2-way switch used for?

2-way switches are installed in pairs to control lighting from two separate locations, typically at either end of staircases, hallways, or large rooms. Each switch can turn the light on or off regardless of the other switch position.

What does the 20AX rating mean?

20AX indicates 20 ampere rating for inductive loads such as fluorescent lighting and LED drivers. The 'X' suffix denotes suitability for switching inductive and capacitive loads at 250V AC.

How do modules attach to grid plates?

Modules clip directly into the apertures of euro grid plates. The 24.5mm x 50mm module fits standard single aperture openings in all compatible grid plate systems.
